Keystone Jack PIN

3 year ago
43 0
Product details

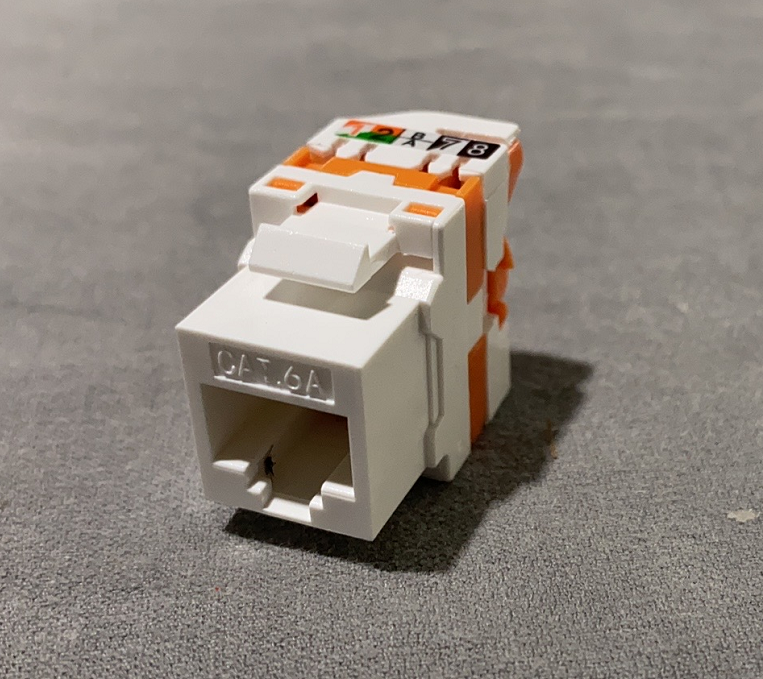

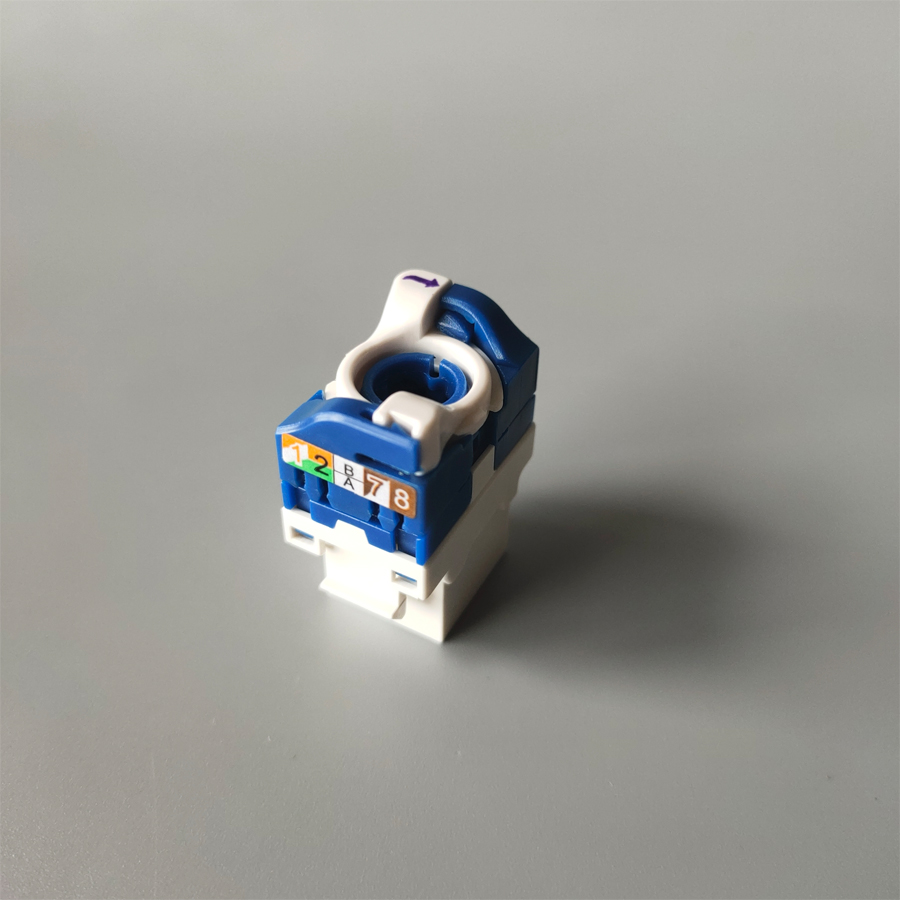

UTP CAT6 Keystone Jack, 180 degree type wiring installation.

The unshielded CAT6a keystone jack,180 degree RJ45 keystone jack were designed with the user in mind, complete with the T568A/B wiring guide for each jack. To make sure durability they are made of Phosphor bronze for IDC contacts, Gold plated,UL94V-0 plastic housing. Our keystone jacks were engineered to simplify the termination helping you save time and money with features like easy to read wiring labels and 110 IDC termination.

Because we take great pride in our quality control procedures and our commitment to quality our keystone jack's line meets all requirements for EIA/TIA and also inspected and tested to comply with stringent transmissions and satety standards. Our kesytone jacks are available in a variety of colors to help organize our custimers installation.

10G+ High speed netwoeking connecting  CAT7 10G+ High speed networking cableing solutions   10G CAT7 networking jack


  • Electrical:
    • Voltage rating: 125V AC rms
    • Current rating: 1.5A
    • Mating cycles: >750 insertions
    • Contact resistance: 100MΩ (maximum)
    • Insulation resistance: 1000MΩ (minimum) at 500V DC
    • Dielectric strength: 750V AC rms, 60Hz and one minute
  • Specifications:
    • UTP Cat6 keystone jack , 180 Degree
    • T568A / T568B wiring
    • Fluke, RoHS compliant
    • Small sample orders are accepted
    • Storage temperature: -40 to +85°C
    • Operating temperature: 0 to 70°C
  • Mechanical:
    • Housing material: PC UL94V-0
    • Inner material: flame-retardant ABS UL94V-0
    • PCB material: FR-4
    • Wire: 22 to 26AWG solid wire.
