Hot-Dipped Galvanized Steel Coils
3 year ago
PRODUCT DESCRIPTION

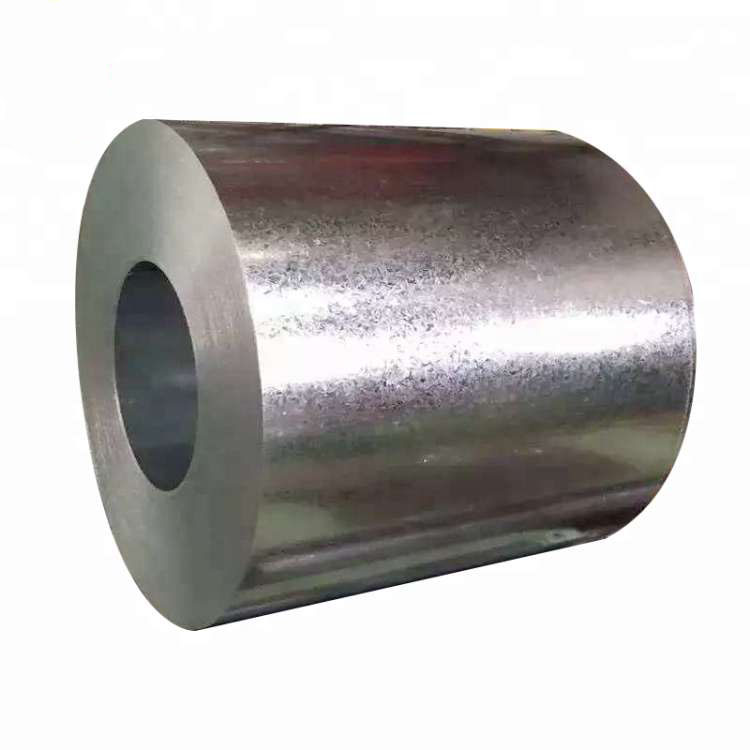

Hot-dip galvanized steel coil, also known as zinc coated steel coil, is to dip a thin steel plate into a molten zinc bath to make a layer of zinc adhere to its surface. Hot dipped galvanized steel coil is mainly produced by continuous galvanizing process, that is, the coiled steel plate is continuously dipped in a plating tank with molten zinc to make galvanized steel plate and alloyed galvanized steel plate. This kind of steel panel is also made by hot dip method, but it is heated to about 500℃ immediately after coming out of the tank, so that it can form an alloy film of zinc and iron. This galvanized coil has good paint adhesion and weldability.
HOT-DIP GALVANIZED STEEL COILS
ASTM A653M-06a
EN10327:2004/10326:2004
JIS G 3302-2010
AS-NZS 4534-2006
Commercial Quality
CS
DX51D+Z
SGCC
G1+Z
STRUCTURE STEEL
SS GRADE 230
S220GD+Z
SGC340
G250+Z
SS GRADE 255
S250GD+Z
SGC400
G330+Z
SS GRADE 275
S280GD+Z
SGC440
G350+Z
SS GRADE 340
S320GD+Z
SGC490
G450+Z
SS GRADE 550
S350GD+Z
SGC570
G500+Z
S550GD+Z
G550+Z
PRODUCT DETAILS
| Commodity | Hot Dipped Galvanized Steel Coil,Galvanized Steel Coil |
| Grade: | JIS G3302-94 Q195, Q235,Din17175 |
| SGCC, SGCH,SGC340 SGC400 SGC440 SGC490 SGC570 | |
| SGHC SGH340 SGH400 SGH440 SGH490 SGH540 | |
| DX51D DX52D DX53D DX54D | |
| S220GD S250GD S280GD S320GD S350GD S400GD S500GD S550GD | |
| Standard: | ISO,JIS,ASTM,AS EN |
| Zinc coated: | 30-275g/m2 |
| Surface treatment: | Chromated and oiled, and ant-ifinger |
| Hardness: | Softy , half hard and hard quality |
| Thickness: | 0.11-6.0mm |
| Width: | 30-2200mm |
| Supply Ability: | 10000MT/month |
| Coil weight: | 3-8MT/Coil or as your request |
| MOQ: | 5MT |
| Packaging: | Export standard, seaworthy |
| Substrate: | Cold rolled Substrate |
| ID: | 508mm or 610mm |
| Trade Term: | FOB, CFR, CIF |
| Payment terms: | T/T, L/C at sight,West Union |
| Delivery time: | 10-20days after confirmed order |
| Loading port: | Shanghai port |
| Container size: | 20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High) |
| 40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High) | |
| 40ft HC:12032mm(Length)x2352mm(Width)x2698mm(High) |
PRODUCT DISPLAY
| Name | GI steel coil | GL steel coil /Anti-Finger |
| Standard | GB/T-2518JIS G 3302EN 10142/10427ASTM A653 | GB/T-14798JIS G 3321EN 10215ASTM 792 |
| Grade | SGCCDX51D+Z | SGLCCDX51D+AZ |
| Thickness | 0.12-2.0mm (±0.02mm) | 0.16-0.7mm(±0.02mm) |
| Width | 30-1250mm (±2mm) | |
| Length | Coil or as Customers' requirement | |
| Zinc/Aluzinc coating | Zn 30g/sm-275g/sm | |
| Spangle | Mini/Regular/Big | Regular |
| Coil weight | 3-8tons or As your requirement | |
| Hardness | CQ/FH/As your requirement (G300-G550) | |
| Surface Treatment | Anti-Finger printing ,Chromated, oiled/ non-oiled | |
| Certification | ISO9001 | |
| Application | Structural use ,roofing, corrugated roofing, commercial use, household appliance, industry | |
EXHIBITION OF COOPERATION
CERTIFICATION
FAQ
Q:Can I get samples before order ?
A:Yes, of course. Usually our samples are free,we can produce by your samples or technical drawings.
Q:Can I go to your factory to visit?
A:Of course, we welcome customers from all over the world to visit our factory.
Q:What product information do I need to provide?
A:You need to provide the grade, width, thickness, coating and the number of tons you need to purchase.
Q:Does the product have quality inspection before loading?
A:Of course, all our products are strictly tested for quality before packaging, and unqualified products will be destroyed.we accept third party inspection.
Q:How do we trust your company?
A:We specialise in steel business for years, headquarter locates in Liaocheng, Shandong province, you are welcome to investigate in any ways, by all means, we have CE and ISO9001 certificate, quality can be guaranteed.
