Wear-resistant steel plate
3 year ago
PRODUCT DESCRIPTION
The steel plates are flat and rectangular and can be rolled directly or cut from wide strips.
Steel plates are classified according to thickness, thin steel plates are less than 4mm (the thinnest is 0.2mm), medium-thick steel plates are 4-60mm, and extra-thick steel plates are 60-115mm.
Steel plates are divided into hot-rolled plates and cold-rolled plates according to rolling.
1. Hot rolled steel plate
Hot rolling processing methods include hot rolling, forging, extrusion and other methods.
2. Cold rolled steel plate
Cold rolling processing methods include cold rolling, cold drawing, cold bending, cold extrusion and other methods.
The cold rolling method is to continue processing hot-rolled steel below the recrystallization temperature to make cold-rolled steel. The cold rolling processing method can improve the mechanical properties of the steel, and obtain products with high dimensional accuracy and a certain degree of smoothness.

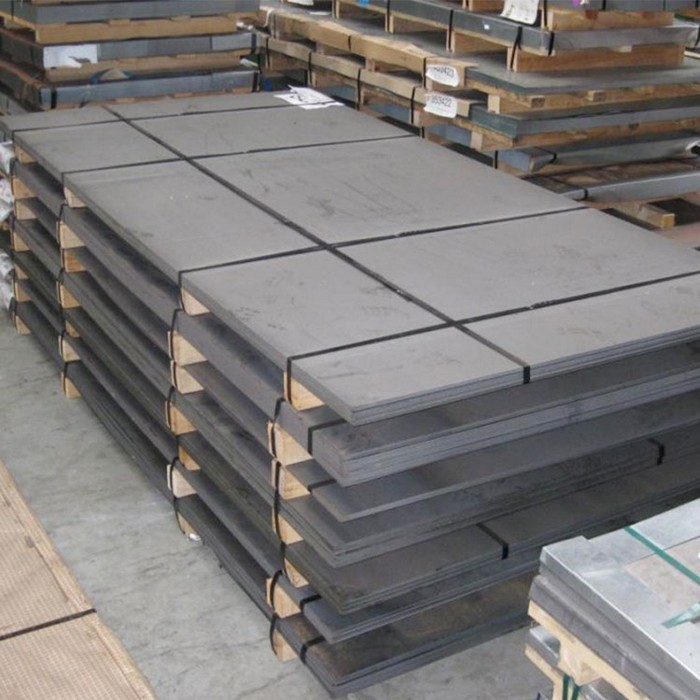

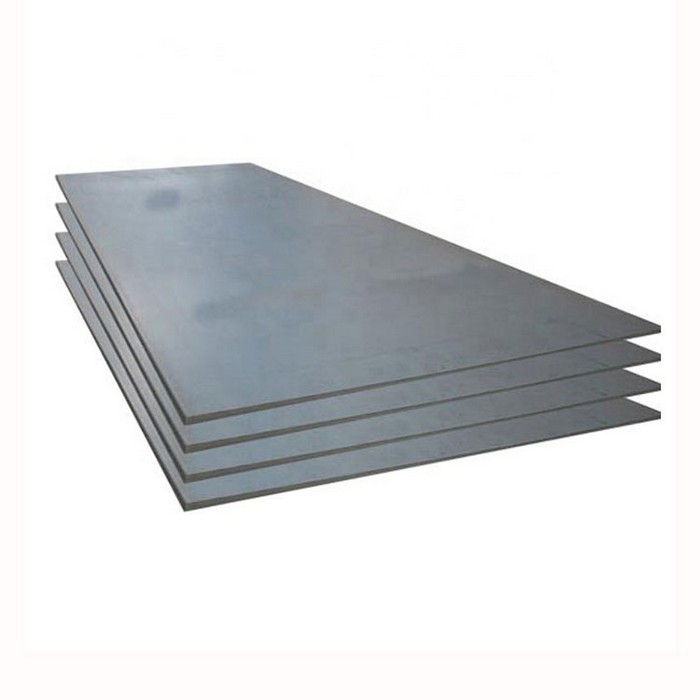

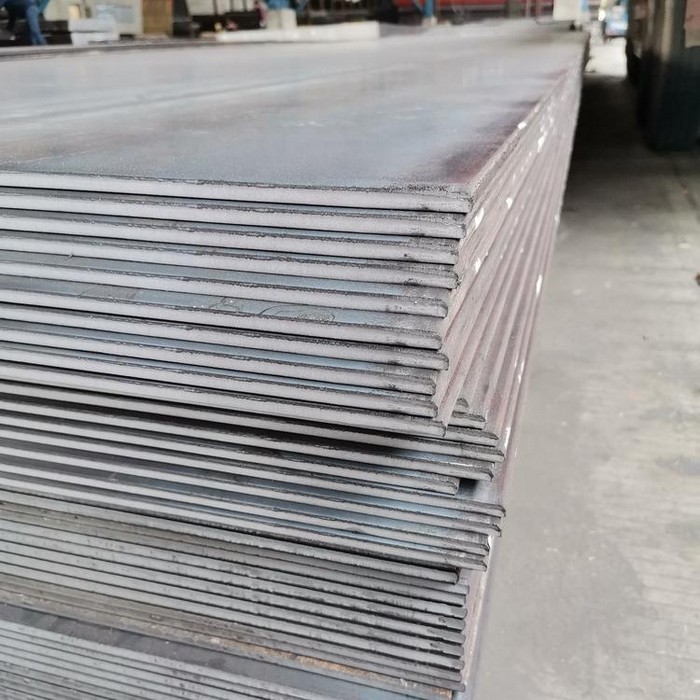

PRODUCT DISPLAY
Wear/Abrasion Resistant Steel --- Chinese Standard
| Wear/Abrasion Resistant Steel Equivalent Standards | |||||
| Steel Grade | SSAB | JFE | DILLIDUR | ThyssenkKrupp | Ruukki |
| NM360 | - | EH360 | - | - | - |
| NM400 | HARDOX400 | EH400 | 400V | XAR400 | Raex400 |
| NM450 | HARDOX450 | - | 450V | XAR450 | Raex450 |
| NM500 | HARDOX500 | EH500 | 500V | XAR500 | Raex500 |
| Chemical Composition (%) of NM Wear Resistant Steel | |||||||||||
| Steel Grade | C | Si | Mn | P | S | Cr | Mo | B | N | H | Ceq |
| NM360/NM400 | ≤0.20 | ≤0.40 | ≤1.50 | ≤0.012 | ≤0.005 | ≤0.35 | ≤0.30 | ≤0.002 | ≤0.005 | ≤0.00025 | ≤0.53 |
| NM450 | ≤0.22 | ≤0.60 | ≤1.50 | ≤0.012 | ≤0.005 | ≤0.80 | ≤0.30 | ≤0.002 | ≤0.005 | ≤0.00025 | ≤0.62 |
| NM500 | ≤0.30 | ≤0.60 | ≤1.00 | ≤0.012 | ≤0.002 | ≤1.00 | ≤0.30 | ≤0.002 | ≤0.005 | ≤0.0002 | ≤0.65 |
| NM550 | ≤0.35 | ≤0.40 | ≤1.20 | ≤0.010 | ≤0.002 | ≤1.00 | ≤0.30 | ≤0.002 | ≤0.0045 | ≤0.0002 | ≤0.72 |
| Mechanical Properties of NM Wear Resistant Steel | |||||
| Steel Grade | Yield Strength /MPa | Tensile Strength /MPa | Elongation A50 /% | Hardess (Brinell) HBW10/3000 | Impact/J （-20℃） |
| NM360 | ≥900 | ≥1050 | ≥12 | 320-390 | ≥21 |
| NM400 | ≥950 | ≥1200 | ≥12 | 380-430 | ≥21 |
| NM450 | ≥1050 | ≥1250 | ≥7 | 420-480 | ≥21 |
| NM500 | ≥1100 | ≥1350 | ≥6 | ≥470 | ≥17 |
| NM550 | - | - | - | ≥530 | - |
| Abrasion Resistant Steel Plate Availabillity | |||
| Grade | Thickness | Width | Length |
| AR200 / AR 235 | 3/16" – 3/4" | 48" – 120" | 96" – 480" |
| AR400F | 3/16" – 4" | 48" – 120" | 96" – 480" |
| AR450F | 3/16" – 2 " | 48" – 96 " | 96" – 480" |
| AR500 | 3/16" – 2 " | 48" – 96 " | 96" – 480" |
| AR600 | 3/16" – 3/4" | 48" – 96 " | 96" – 480" |
| Chemical Composition of Abrasion Resistant Steel Plate | |||||||||
| Grade | C | Si | Mn | P | S | Cr | Ni | Mo | B |
| AR500 | 0.3 | 0.7 | 1.7 | 0.025 | 0.015 | 1 | 0.7 | 0.5 | 0.005 |
| AR450 | 0.26 | 0.7 | 1.7 | 0.025 | 0.015 | 1 | 0.7 | 0.5 | 0.005 |
| AR400 | 0.25 | 0.7 | 1.7 | 0.025 | 0.015 | 1.5 | 0.7 | 0.5 | 0.005 |
| AR300 | 0.18 | 0.7 | 1.7 | 0.025 | 0.015 | 1.5 | 0.4 | 0.5 | 0.005 |
| Mechanical Properties of Abrasion Resistant Steel Plate | |||||
| Grade | Yield Strength MPa | Tensile Strength MPa | Elongation A | Impact Strength Charpy V 20J | Hardness Range |
| AR500 | 1250 | 1450 | 8 | -30C | 450-540 |
| AR450 | 1200 | 1450 | 8 | -40C | 420-500 |
| AR400 | 1000 | 1250 | 10 | -40C | 360-480 |
| AR300 | 900 | 1000 | 11 | -40C | - |
CERTIFICATION
FAQ
Q:Can I get samples before order ?
A:Yes, of course. Usually our samples are free,we can produce by your samples or technical drawings.
Q:Can I go to your factory to visit?
A:Of course, we welcome customers from all over the world to visit our factory.
Q:What product information do I need to provide?
A:You need to provide the grade, width, thickness, coating and the number of tons you need to purchase.
Q:Does the product have quality inspection before loading?
A:Of course, all our products are strictly tested for quality before packaging, and unqualified products will be destroyed.we accept third party inspection.
Q:How do we trust your company?
A:We specialise in steel business for years, headquarter locates in Liaocheng, Shandong province, you are welcome to investigate in any ways, by all means, we have CE and ISO9001 certificate, quality can be guaranteed.Similar Video Recommendation
