MD03-50M Diaphragm
3 year ago
MD03-50M Diaphragm For Taeha Pulse Valve TH-5450-M TH-4450-M
The diaphragm is the most important part of the pulse valve. When the pulse valve is energised, the trapped air above pulse valve diaphgram is quickly exhausted causing fast opening of main diaphragm valve. When the pulse valve is de-energised , air escapes through bleed hole of main pulse valve to balance the diaphragm pressure and instantly closes the pulse valve.
Options for your customization:
1. Diaphragm Material: TPE, NBR, EPDM, FKM
2. Seat Material: Nylon, Rubber, PTFE
3. Diaphragm Color: Black, White, Red, Green, etc
4. Diaphragm Size: We can make it as same as your drawing
5. Packaging: We can provide you custom plastic bag with low MOQ
Ordering Code of Diaphragm For Taeha Pulse Valve:
|
BRANDO Model
|
Diaphragm Model
|
Pulse Valve
Port Size
|
Pulse Valve
Model No
|
Diaphragm
Color
|
Diaphragm
Material
|
|
DH20
|
MD01-20
MD02-20
|
3/4''
|
TH-5820-B
TH-4820-B
TH-5825-B
TH-5820-C
TH-4820-C
|
Red & Green
|
NBR
|
|
DH25
|
MD01-25
MD02-25
|
1''
|
TH-4825-B
TH-5825-C
TH-4825-C
TH-5840-F
TH-4840-F
|
||
|
MD01-25M
|
TH-5825-M
|
||||
|
DH30
|
MD01-30
MD02-30
MD03-30
|
1 1/4''
|
TH-5830-B
TH-5430-B
TH-4830-B
TH-4430-B
|
||
|
MD03-30M
|
TH-5430-M
TH-4430-M
|
||||
|
DH40
|
MD01-40
MD02-40
MD03-40
|
1 1/2''
|
TH-5840-B
TH-5440-B
TH-4840-B
TH-4440-B
TH-5840-C
TH-5440-C
TH-4840-C
TH-4440-C
TH-5850-F
TH-5450-F
TH-4850-F
TH-4450-F
|
||
|
DH40M
|
MD03-40M
|
1 1/2''
|
TH-5440-M
TH-4440-M
|
||
|
DH50
|
MD03-50
|
2''
|
TH-5450-B
TH-4450-B
|
||
|
DH50M
|
MD03-50M
|
2''
|
TH-5450-M
TH-4450-M
|
||
|
DH60
|
MD03-60
MD04-60
|
2 1/2''
|
TH-5460-B
TH-4460-B
TH-5460-S
TH-4460-S
|
||
|
DH75
|
MD03-75
|
3''
|
TH-5475-B
TH-4475-B
|
||
|
MD03-75M
|
3''
|
TH-5475-M
TH-4475-M
|
|||
|
DH90M
|
MD03-90M
|
3 1/2''
|
TH-5490-M
TH-4490-M
|
||
|
DH100M
|
MD03-00M
|
4''
|
TH-5400-M
TH-4400-M
|

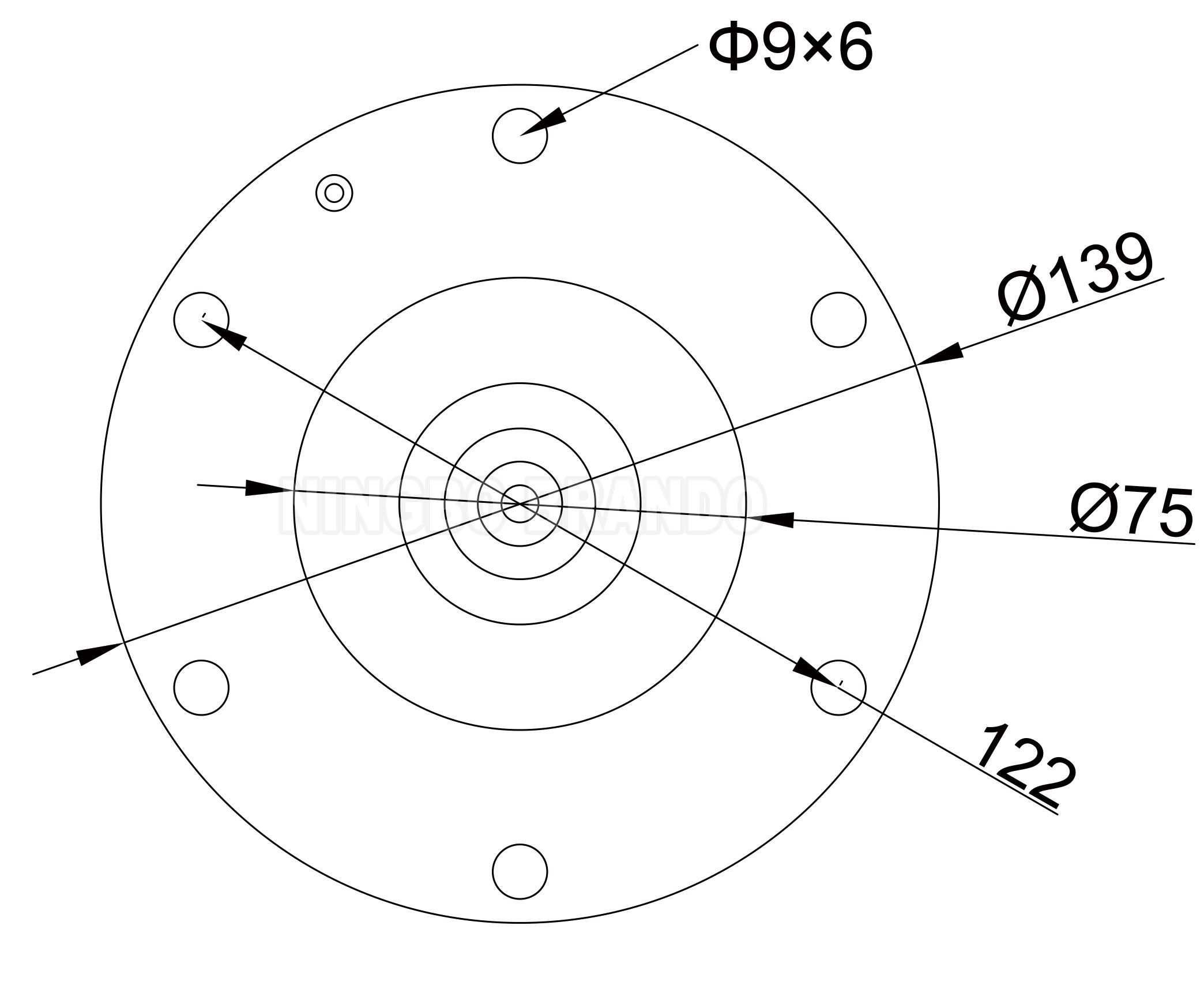

Dimension of MD03-50M Diaphragm:
 |
 |
