MD03-60, MD04-60 Diaphragm

3 year ago

27 0 

11 year

Product details

MD03-60 MD04-60 Diaphragm For 2.5'' Taeha Pulse Valve

The diaphragm is the most important part of the pulse valve. When the pulse valve is energised, the trapped air above pulse valve diaphgram is quickly exhausted causing fast opening of main diaphragm valve. When the pulse valve is de-energised , air escapes through bleed hole of main pulse valve to balance the diaphragm pressure and instantly closes the pulse valve.

Options for your customization:
1. Diaphragm Material: TPE, NBR, EPDM, FKM
2. Seat Material: Nylon, Rubber, PTFE
3. Diaphragm Color: Black, White, Red, Green, etc
4. Diaphragm Size: We can make it as same as your drawing
5. Packaging: We can provide you custom plastic bag with low MOQ

Ordering Code of Diaphragm For Taeha Pulse Valve:

BRANDO Model	Diaphragm Model	Pulse Valve Port Size	Pulse Valve Model No	Diaphragm Color	Diaphragm Material
DH20	MD01-20 MD02-20	3/4''	TH-5820-B TH-4820-B TH-5825-B TH-5820-C TH-4820-C	Red & Green	NBR
DH25	MD01-25 MD02-25	1''	TH-4825-B TH-5825-C TH-4825-C TH-5840-F TH-4840-F
DH25	MD01-25M	1''	TH-5825-M
DH30	MD01-30 MD02-30 MD03-30	1 1/4''	TH-5830-B TH-5430-B TH-4830-B TH-4430-B
DH30	MD03-30M	1 1/4''	TH-5430-M TH-4430-M
DH40	MD01-40 MD02-40 MD03-40	1 1/2''	TH-5840-B TH-5440-B TH-4840-B TH-4440-B TH-5840-C TH-5440-C TH-4840-C TH-4440-C TH-5850-F TH-5450-F TH-4850-F TH-4450-F
DH40M	MD03-40M	1 1/2''	TH-5440-M TH-4440-M
DH50	MD03-50	2''	TH-5450-B TH-4450-B
DH50M	MD03-50M	2''	TH-5450-M TH-4450-M
DH60	MD03-60 MD04-60	2 1/2''	TH-5460-B TH-4460-B TH-5460-S TH-4460-S
DH75	MD03-75	3''	TH-5475-B TH-4475-B
DH75	MD03-75M	3''	TH-5475-M TH-4475-M
DH90M	MD03-90M	3 1/2''	TH-5490-M TH-4490-M
DH100M	MD03-00M	4''	TH-5400-M TH-4400-M

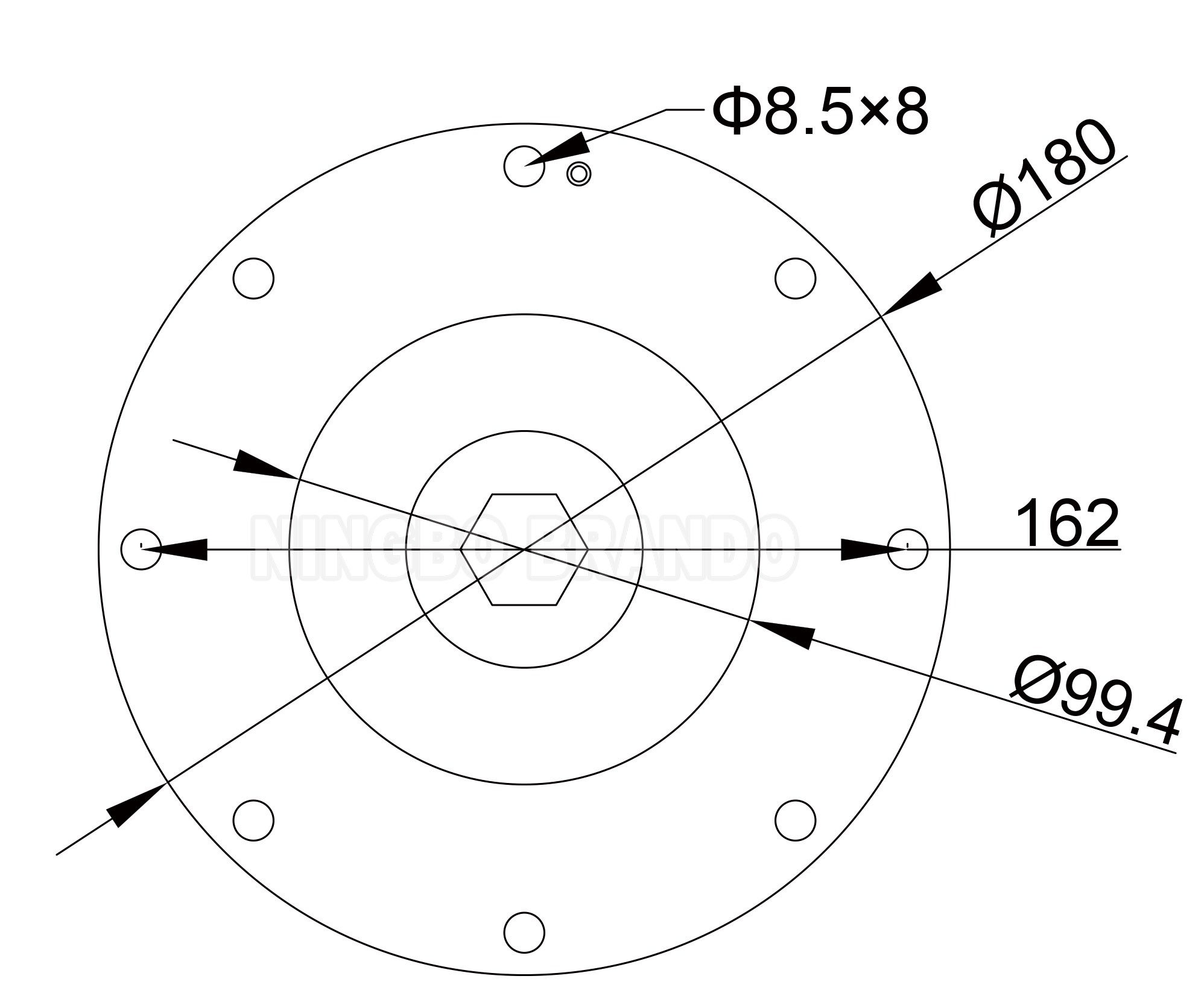

Dimension of MD03-60, MD04-60 Diaphragm:


Main Diaphragm	Secondary Diaphragm

BRANDO Diaphragm Production Picture:

Related Products:

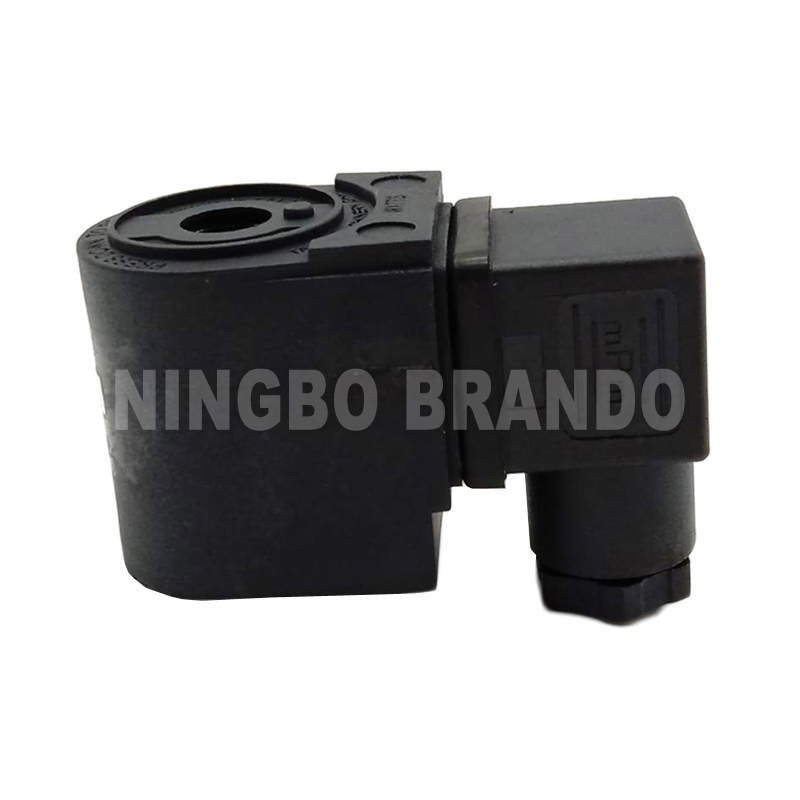

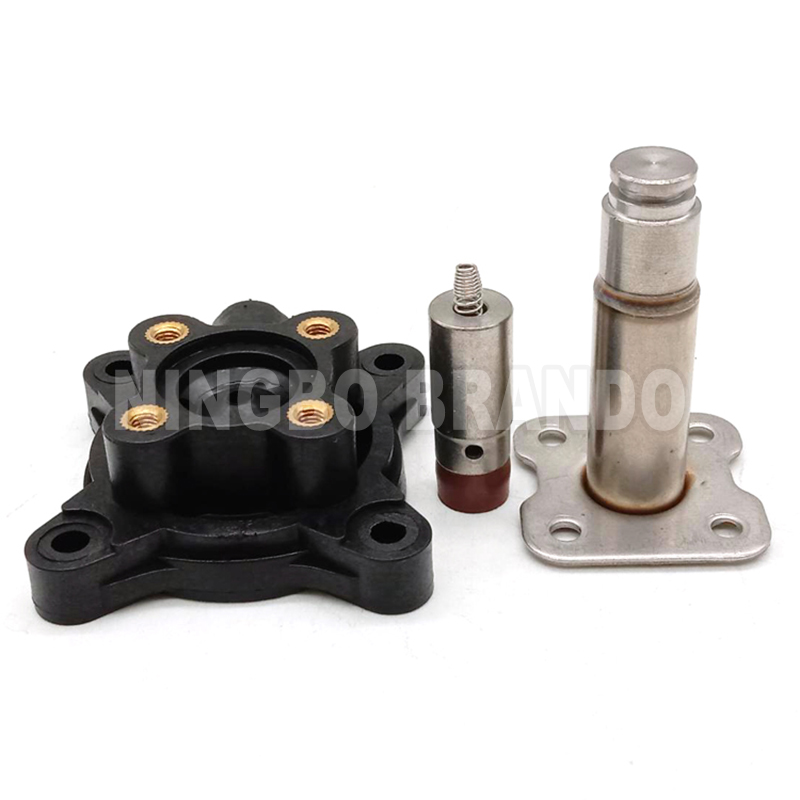

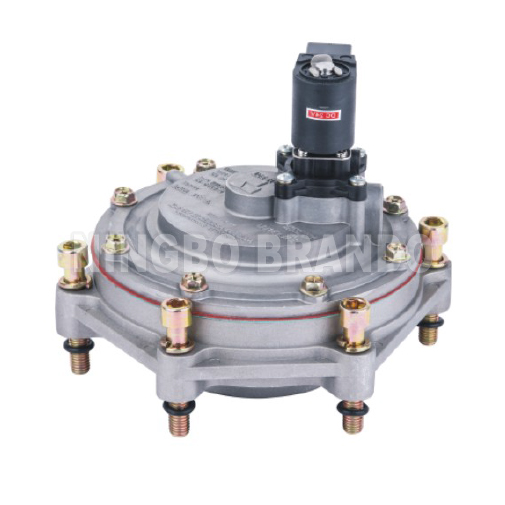

Solenoid Coil	Solenoid Armature	Pulse Valve	Pulse Controller

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
