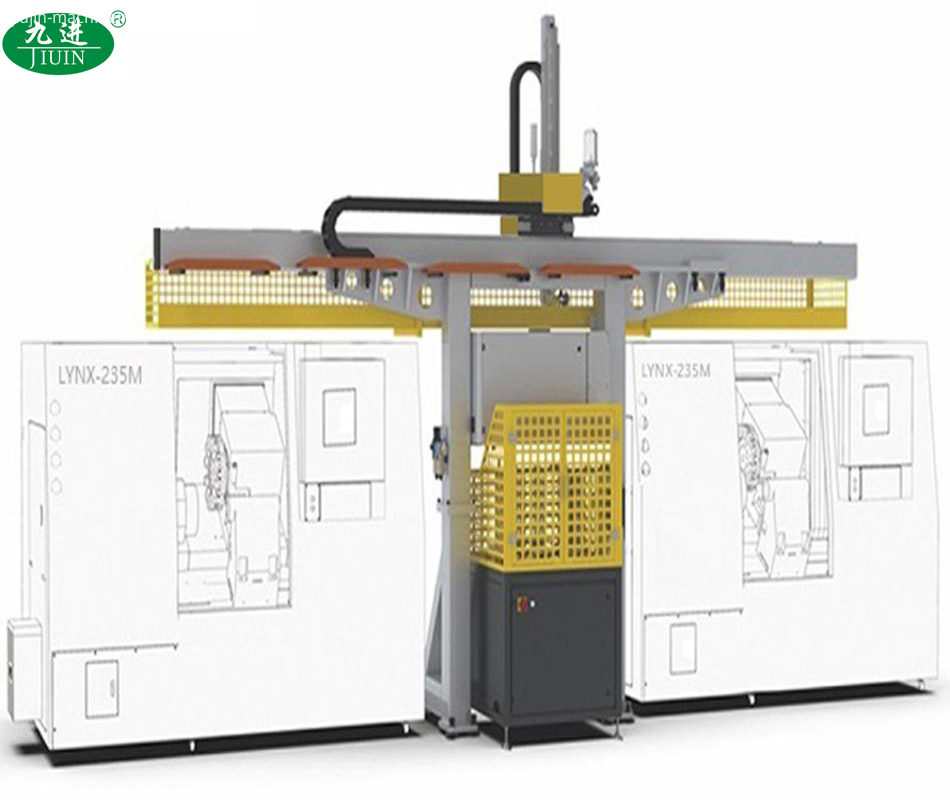

Gantry Robot With Two CNC Machines
Product Performance
The Gantry Robot With Two CNC Machines is a type of industrial robot that is designed to move along a track or rail system, allowing it to cover a large work area.
The Gantry Robot consists of a frame or gantry that supports a horizontal beam or bridge, which in turn supports a vertical axis that carries the robot's tool or end-effector.
It used to preform blanks and parts for CNC lathe and machining center in high-volume work piece production of loading and unloading.
By shortening reloading time, easily change program and retool, implementing low noise, higher precision positioning, operating stably, changing parts flexibly.
The electric control system and mechanical structure are made of modular production, which is convenient for on-site installation, commissioning and old machine tool transformation.
It's one of CNC Machine Tools that realize automation in industries area.
Technical Parameters
|
Technical Parameters |
Unit |
TM312 |
|
Travel of X Axis |
mm |
2000-7000 |
|
Travel of Y Axis |
mm |
50-1000 |
|
Travel of Z Axis |
mm |
500-2000 |
|
Speed of X Axis |
m/min |
0-120 |
|
Speed of Y Axis |
m/min |
0-90 |
|
Speed of Z Axis |
m/min |
0-90 |
|
Payload |
kg |
0.5-50 |
|
Repeated Positioning Accuracy |
mm |
±0.05 |
|
Stock bin/Silo |
- |
Matrix, Rotation, Chain shape & Cyclic Type |
|
Drive model |
- |
Servo+ Reducer |
|
Remark |
- |
Technical parameters can be customized on actual situation basis and customer's workpiece. |
