2.Gantry Loader With Two CNC Machines
3 year ago

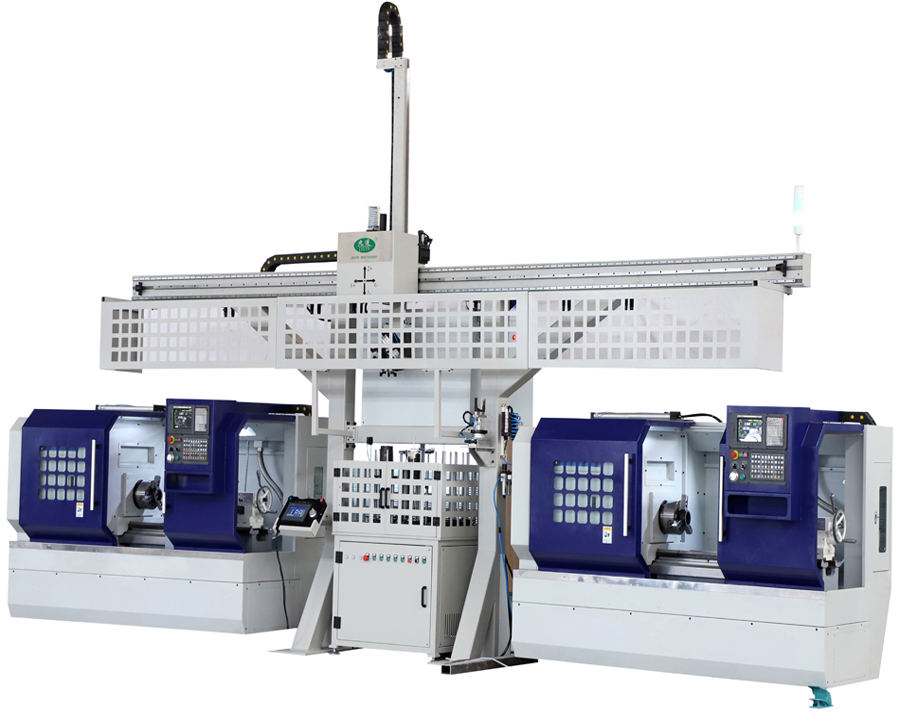

Gantry Loader With Two CNC Lathes
Product Performance
①Gantry Loader With Two CNC Lathes is simple to install and commissioning, which is easy to change guide rails if damaged.
②Gantry Loader With Two CNC Machines are used in high-volume work piece production by reducing labor cost by one person operates many robots.
③It's good to load and unload the preformed parts for CNC lathe and machining center.
④ The mechanical structure and electric control system of Gantry Loader are made of modular production, which is convenient for on-site installation, commissioning and old machine tool transformation.
⑤ It can be equipped with CNC Machine Tools, Gantry Loader Matrix Stock Bin and Accessories For Gantry Loader to reduce labor cost and improve efficiency.
Technical Parameters
|
Technical Parameters |
Unit |
GLL312 |
|
Travel of X Axis |
mm |
2000-7000 |
|
Travel of Y Axis |
mm |
50-1000 |
|
Travel of Z Axis |
mm |
500-2000 |
|
Speed of X Axis |
m/min |
0-120 |
|
Speed of Y Axis |
m/min |
0-90 |
|
Speed of Z Axis |
m/min |
0-90 |
|
Payload |
kg |
0.5-50 |
|
Repeated Positioning Accuracy |
mm |
±0.05 |
|
Stock bin/Silo |
- |
Matrix, Rotation, Chain shape & Cyclic Type |
|
Drive model |
- |
Servo+ Reducer |
|
Remark |
- |
Technical parameters can be customized on actual situation basis and customer's workpiece. |
