3.Gantry Robot With More CNC Machines
3 year ago

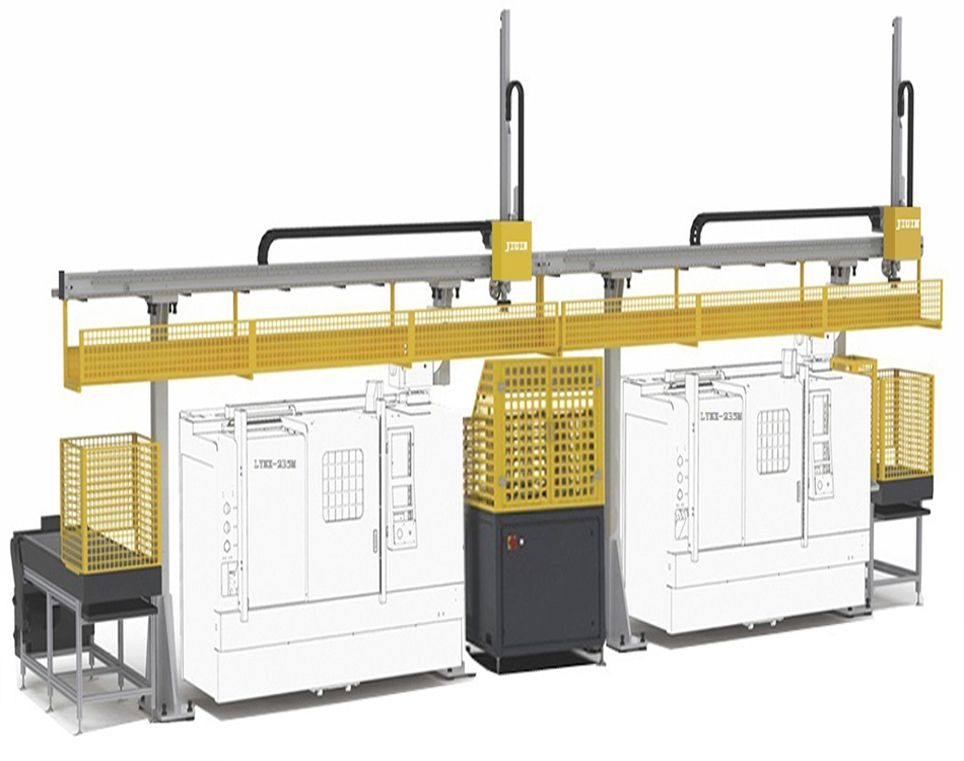

Gantry Robot With More CNC Lathes
Product Performance
①The Gantry Robot With More CNC Lathes is fitted with Germany pneumatic grippers, Taiwan air cylinders,guide rails, gearwheels and racks.There are accurate positioning and excellent performance.
② Automatic CNC Lathe With Gantry Loader can link more CNC Machine Tools to form Machining Center Flexible Manufacturing Systems. The main part adopts multi-column structure design, which has the feature of high rigidity and heavy loading.
③ This kind of Gantry Loader is used in the machining high volume and multi-process work piece, which can reduce labor cost by one person operates many robots.
④ The mechanical structure and electric control system of Truss Manipulator are made of modular production, which is convenient for on-site installation, commissioning and old machine tool transformation.
⑤These series of Gantry Loader become more and more popular recently.
Technical Parameters
|
Technical Parameters |
Unit |
GR313 |
|
Travel of X Axis |
mm |
2000-12000 |
|
Travel of Y Axis |
mm |
50-1000 |
|
Travel of Z Axis |
mm |
500-2000 |
|
Speed of X Axis |
m/min |
0-120 |
|
Speed of Y Axis |
m/min |
0-90 |
|
Speed of Z Axis |
m/min |
0-90 |
|
Payload |
kg |
0.5-50 |
|
Repeated positioning accuracy |
mm |
±0.05 |
|
Stock bin/Silo |
- |
Matrix, Rotation, Chain shape & Cyclic Type |
|
Drive model |
- |
Servo+ Reducer |
|
Remark |
- |
Technical parameters can be customized on actual situation basis and customer's workpiece. |
