3.Gantry Loader With More CNC Machines
3 year ago

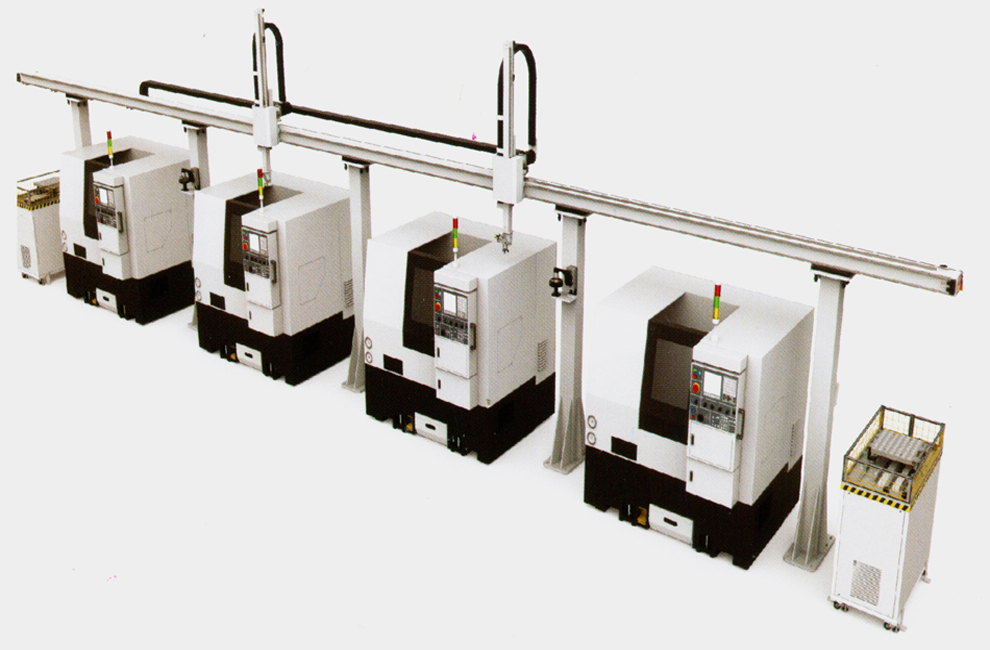

Gantry Loader With More CNC Lathes
Product Performance
① Gantry Loader With More CNC Lathes has high cost performance compared with articulated robot, the cost is lower.
② Main parts on Gantry Loader With More CNC Machines adopt multi-column structure design that has the feature of high rigidity and heavy loading.
③ Gantry Loader links Vertical Machining Center and CNC Machine Tools together to form a automatic production line to realize automatic production.
④ The mechanical structure and electric control system are made of modular production, which is convenient for on-site installation, commissioning and old machine tool transformation.
Technical Parameters
|
Technical Parameters |
Unit |
GLL313 |
|
Travel of X Axis |
mm |
2000-12000 |
|
Travel of Y Axis |
mm |
50-1000 |
|
Travel of Z Axis |
mm |
500-2000 |
|
Speed of X Axis |
m/min |
0-120 |
|
Speed of Y Axis |
m/min |
0-90 |
|
Speed of Z Axis |
m/min |
0-90 |
|
Payload |
kg |
0.5-50 |
|
Repeated positioning accuracy |
mm |
±0.05 |
|
Stock bin/Silo |
- |
Matrix, Rotation, Chain shape & Cyclic Type |
|
Drive model |
- |
Servo+ Reducer |
|
Remark |
- |
Technical parameters can be customized on actual situation basis and customer's workpiece. |
