CAC25T4 Pulse Valve

3 year ago

22 0 

11 year

Product details

CAC25T4 Goyen Type Diaphragm Solenoid Pulse Jet Valve

Pulse Jet Valve, also called diaphragm valve acts as a "switch" for compressed air in the dust collector system for bag filters. It is controlled by the electric signals from the Pulse Controller. Pulse Jet Valves are used in filtering systems of dust collectors, gas turbines, and desulfurization equipment. Pulse jet valves are commonly used to clean filters such as cartridge filters, envelope filters, ceramic filters, and sintered metal fiber filters.

Different pulse jet valve structure:

1. Threaded Type
2. Manifold Flat Mount Type
3. Dresser Nut Type
4. Straight Through Type
5. Flanged Type

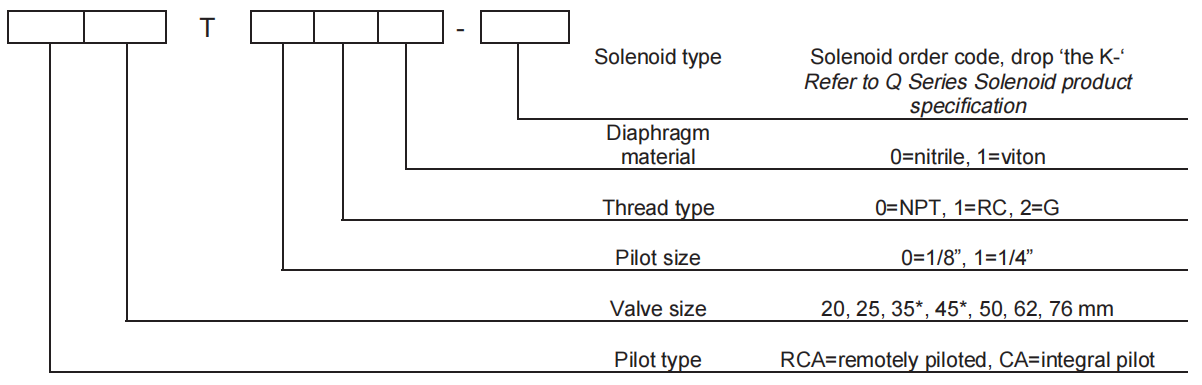

Ordering Code of T Series Pulse Valves:

T Series

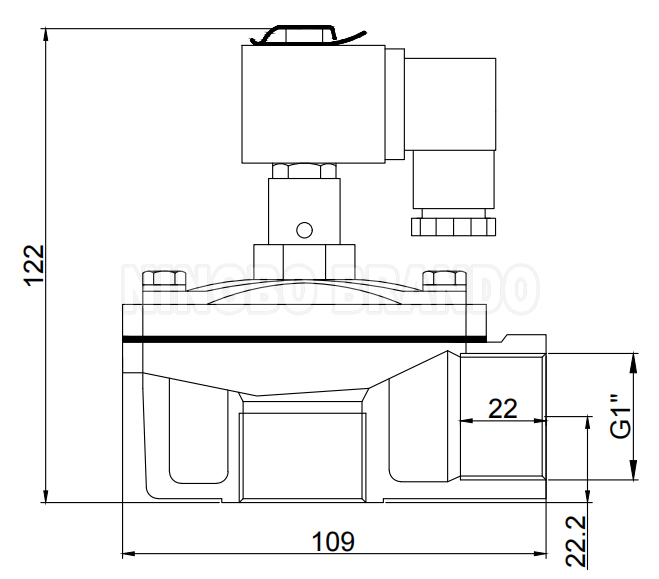

Main Dimension:

CAC25T4

Technical Data of T Series Pulse Valves:

Model No	CA15T	CA20T	CA25T	CA35T	CA45T	CA50T	CA62T	CA76T
Office Size (mm)	15	20	25	35	45	50	62	76
Port Size (Inch)	1/2''	3/4''	1''	1 1/2''	1 1/2''	2''	2 1/2''	3''
Diaphragm Number	1				2
Working Pressure	0.35 to 0.85 MPa (5 to 125 PSI)
Voltage	24VDC, 24VAC, 110VAC, 220VAC
Diaphragm Material	TPE (Shockwave), NBR, FKM
Body Material	Aluminum (diecast)
Structure	Right Angle (Outlet is at 90° to Inlet), Threaded Port

Our Production:

goyen pulse valve

Related Products:

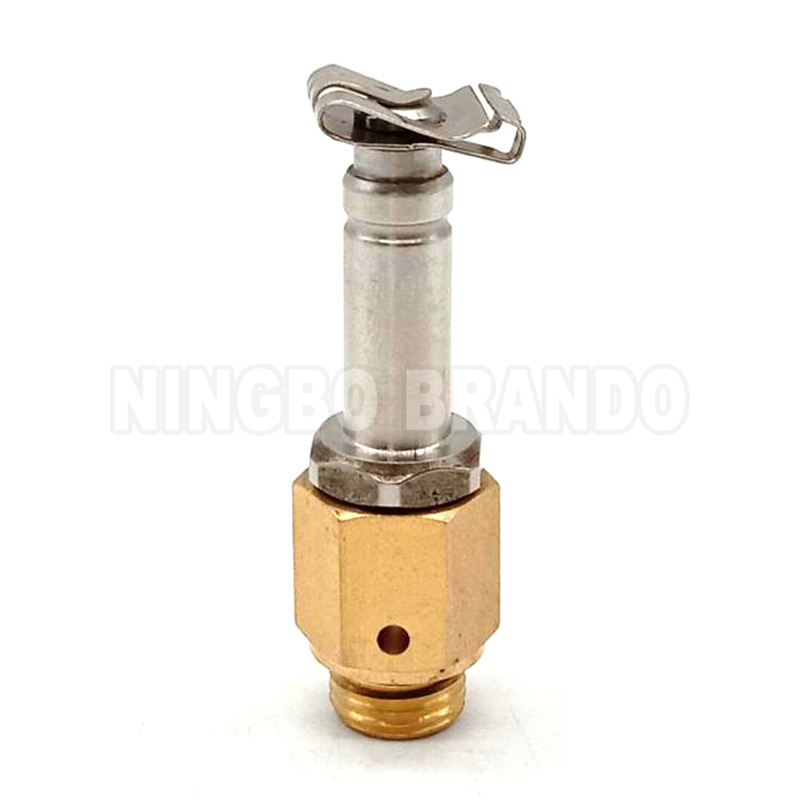

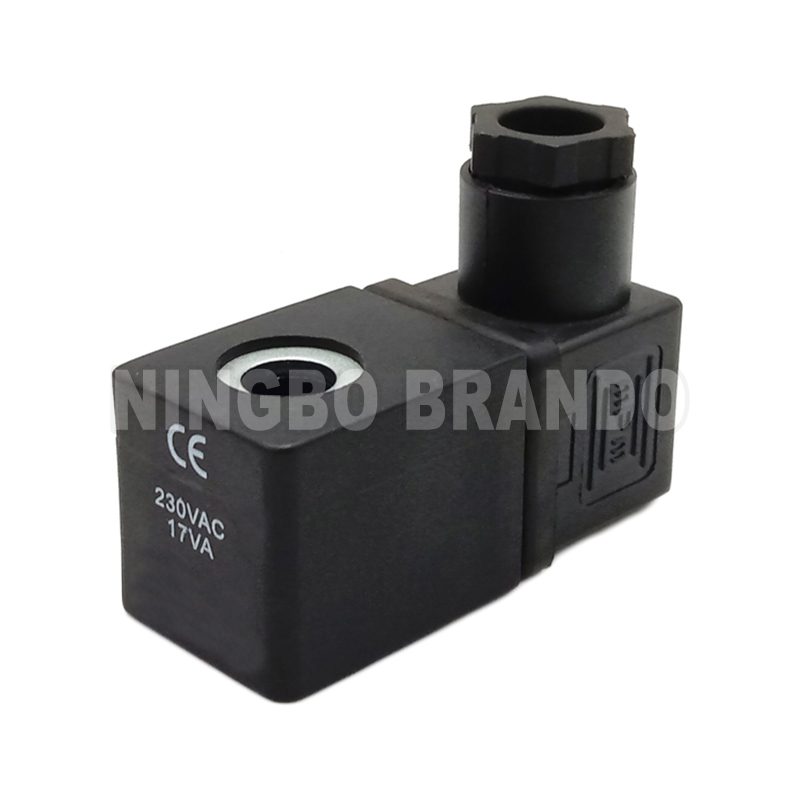

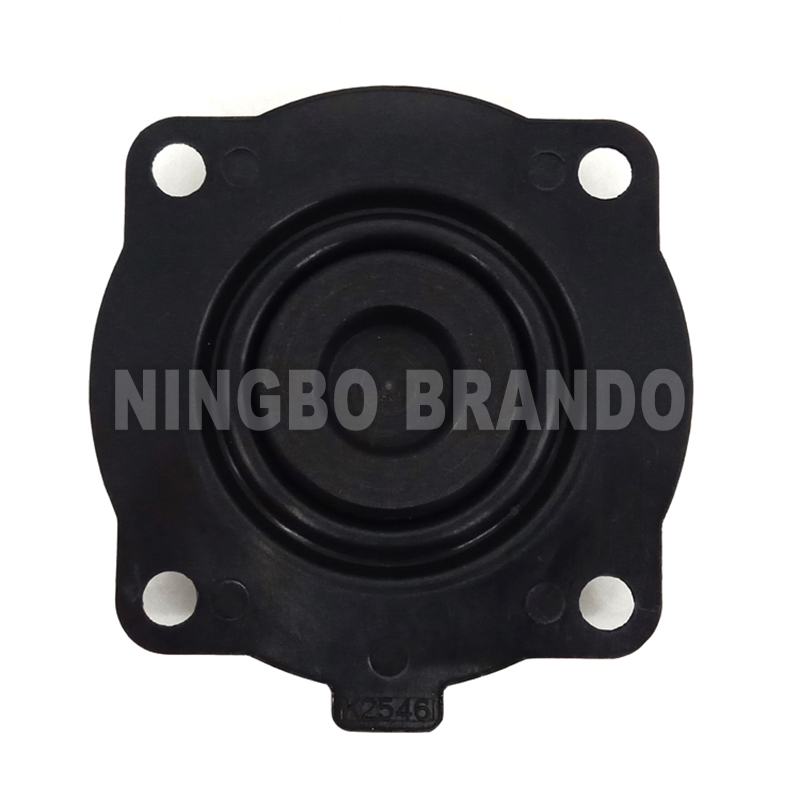

Solenoid Coil	Solenoid Armature	Diaphragm	Pulse Controller

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
