1/2'' 200 bar Solenoid Valve (HS215G04P)
3 year ago
200 bar 1/2'' 220V High Pressure Solenid Valve
Specification:
1. Working Medium: Water, Air, Gas, Oil, Liquid, etc
2. Max Working Pressure: 200 bar (See the parameter table below for details)
3. Seal Material: PTFE
4. Body Material: Stainless Steel 304
5. Port Size: 1/8'', 1/4'', 3/8'', 1/2''
6. Orifice Size: 1.2mm, 2mm, 6mm, 10mm, 15mm
7. Voltage: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC (50/60Hz)
8. Function: 2 Way Normally Closed
9. Operation: Direct Acting (1.2mm, 2mm orifice size), Piston Pilot Operated (6mm, 10mm, 15mm orifice size)
Technical Data:
|
Model No
|
Port Size
(inch)
|
Orifice Size
(mm)
|
CV
|
Min Working Pressure
(bar)
|
Max Working Pressure
(bar)
|
Coil
|
|
|
AC
|
DC
|
||||||
|
HS2
|
1/8'', 1/4''
|
1.2
|
0.05
|
0
|
200
|
200
|
BB16039502
|
|
1/8'', 1/4''
|
2
|
0.15
|
100
|
100
|
BB16039502
|
||
|
1/4''
|
6
|
0.8
|
0.5
|
100
|
70
|
BB16039001
|
|
|
3/8''
|
6
|
0.8
|
100
|
70
|
BB16039001
|
||
|
3/8'', 1/2''
|
10
|
1.8
|
100
|
70
|
BB16039502
|
||
|
1/2''
|
15
|
4.6
|
200
|
200
|
BB16039502
|
||

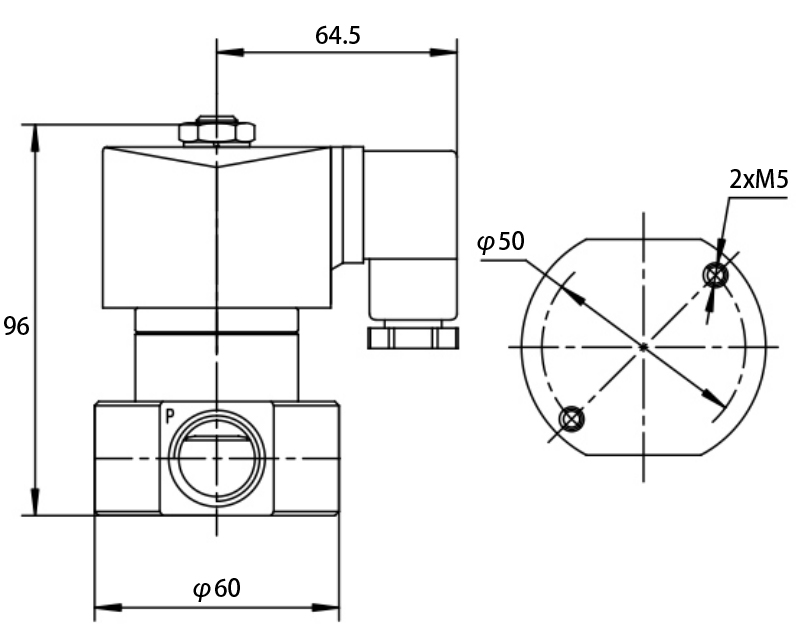

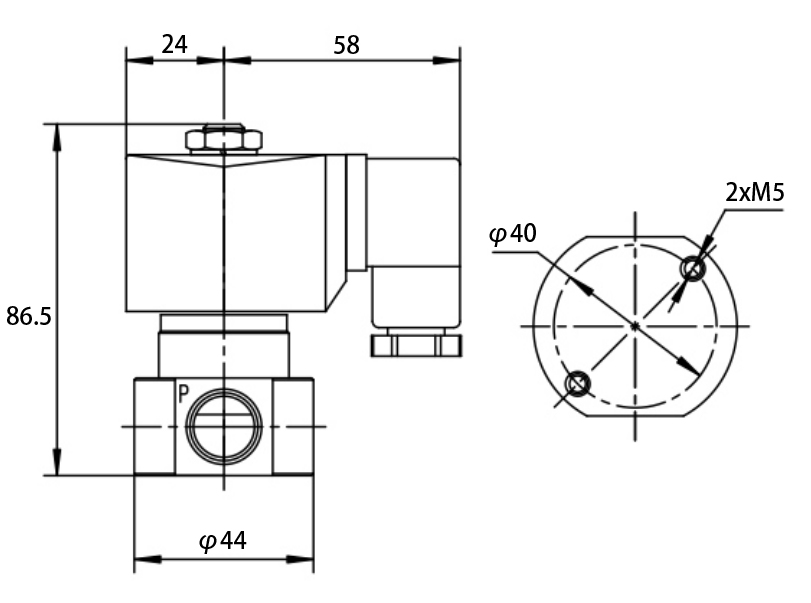

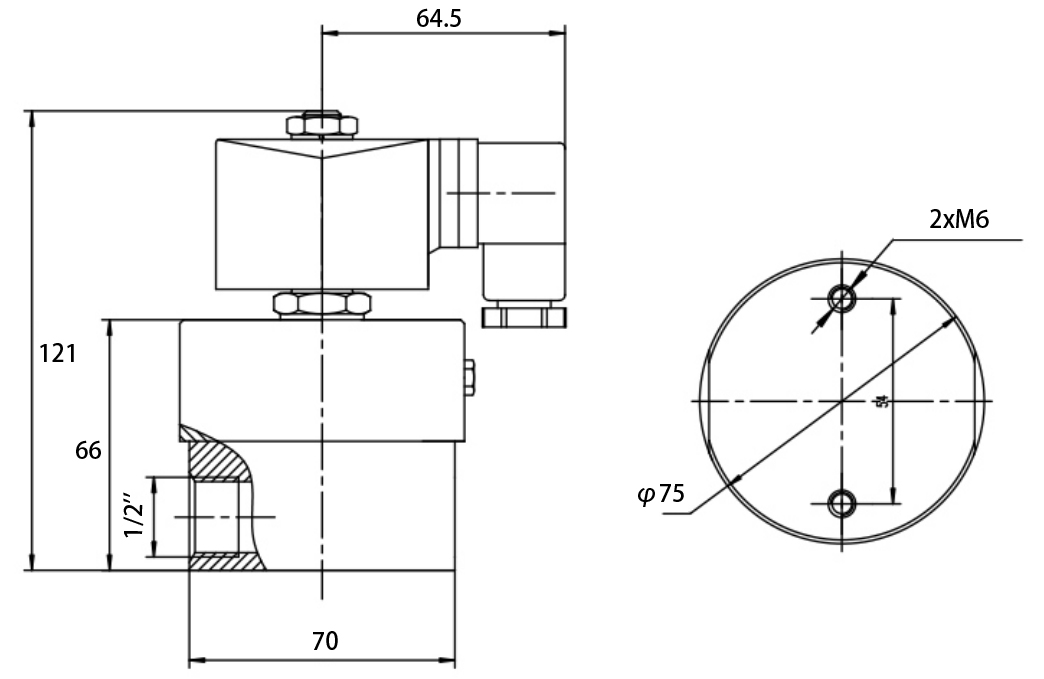

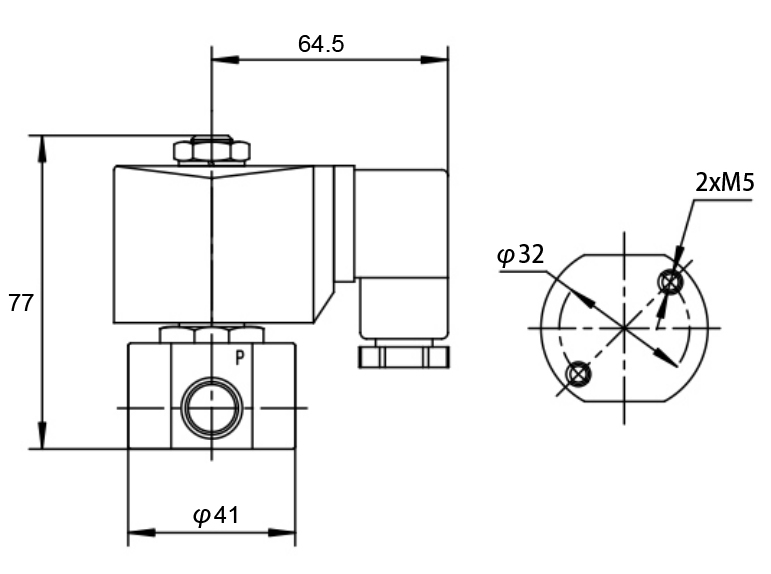

Main Dimension:
 |
 |
| 1/8'', 1/4'' (200 bar) | 1/4'', 3/8'' (100 bar) |
 |
 |
| 3/8'', 1/2'' (100 bar) | 1/2'' (200 bar) |
