BDH High Temperature Solenoid Valve
3 year ago

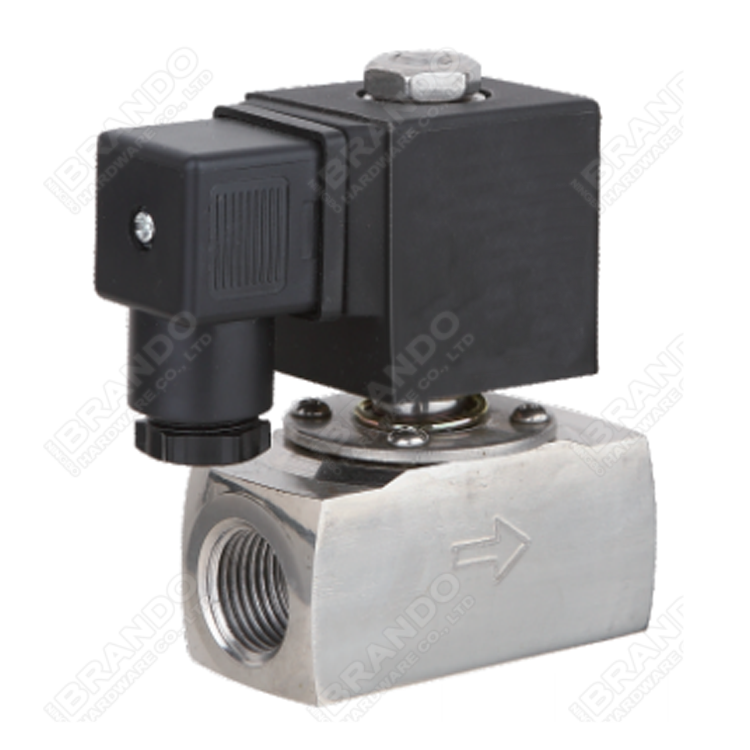

Very High Temperature Stainless Steel Solenoid Valve 3/4''
Product Features:
1. Port Size: 3/8'', 1/2'', 3/4'', 1'', 1 1/4'', 1 1/2'', 2''
2. Thread Type: G, NPT
3. Working Medium: Steam, Hot Water, Heat Conduction Oil, High Temperature Liquid, High Temperature Gas, etc.
4. Working Medium Temperature Range: 5 to 225 ℃
5. Working Pressure Range: 0.5 to 25 bar
6. Function: 2 Way Normally Closed
7. Operation: Piston Pilot Operated
8. Body Material: Stainless Steel 304, Stainless Steel 316
9. Seal Material: PTFE + Metal
10. Supply Voltage: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC (50/60Hz)
Technical Data:
|
Port Size
|
Orifice Size
|
CV
|
Working Pressure
(bar)
|
Working Temperature
(℃)
|
Voltage
|
||
|
Min
|
Max
|
5 to 225
|
12VDC
24VDC
24VAC
110VAC
220VAC
|
||||
|
Oil
|
Steam
|
||||||
|
3/8''
|
15mm
|
4.5
|
0.5
|
25
|
|||
|
1/2''
|
15mm
|
4.5
|
|||||
|
3/4''
|
20mm
|
8
|
|||||
|
1''
|
25mm
|
12
|
|||||
|
1 1/4''
|
35mm
|
22
|
|||||
|
1 1/2''
|
35mm
|
22
|
|||||
|
2''
|
50mm
|
45
|
|||||

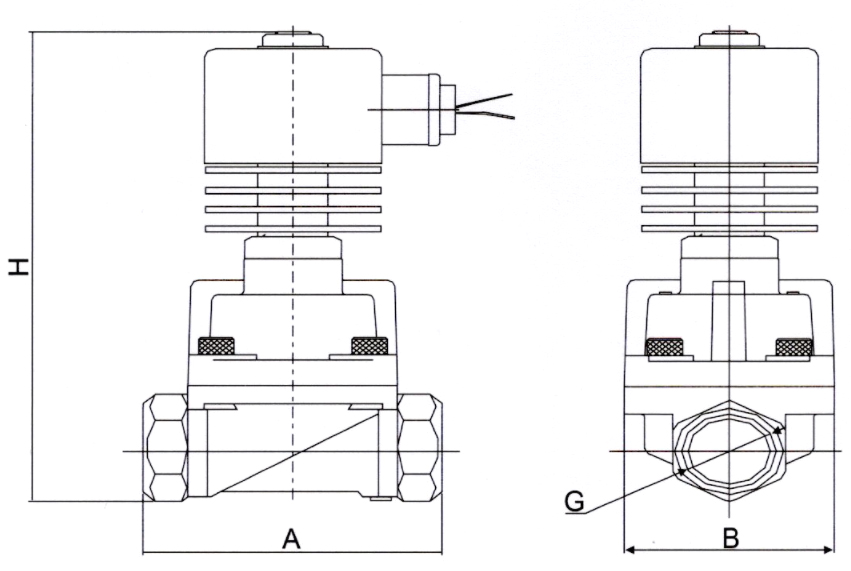

Dimension:
|
G
|
A
|
B
|
H
|
|
3/8''
|
75
|
52
|
159
|
|
1/2''
|
75
|
52
|
159
|
|
3/4''
|
85
|
60
|
171
|
|
1''
|
100
|
70
|
178
|
|
1 1/4''
|
120
|
90
|
198
|
|
1 1/2''
|
120
|
90
|
198
|
|
2''
|
150
|
110
|
220
|
BRANDO Solenoid Valve Production Video:

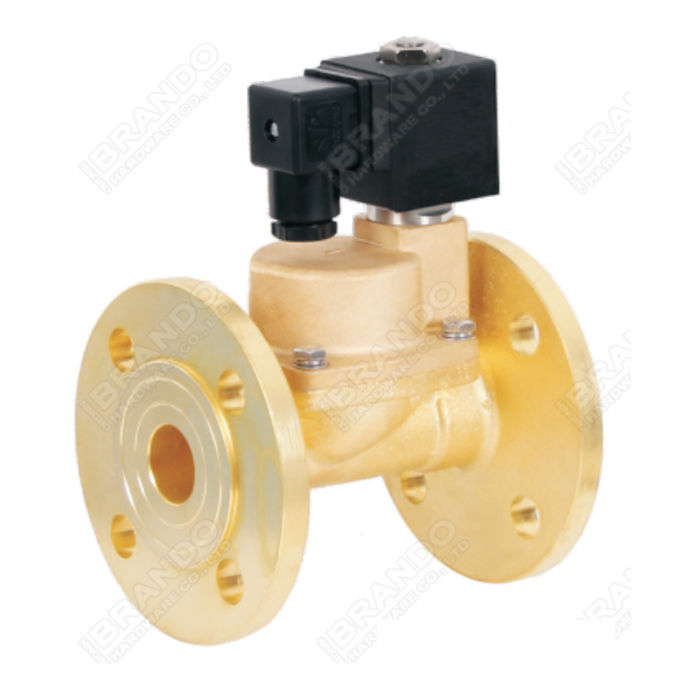

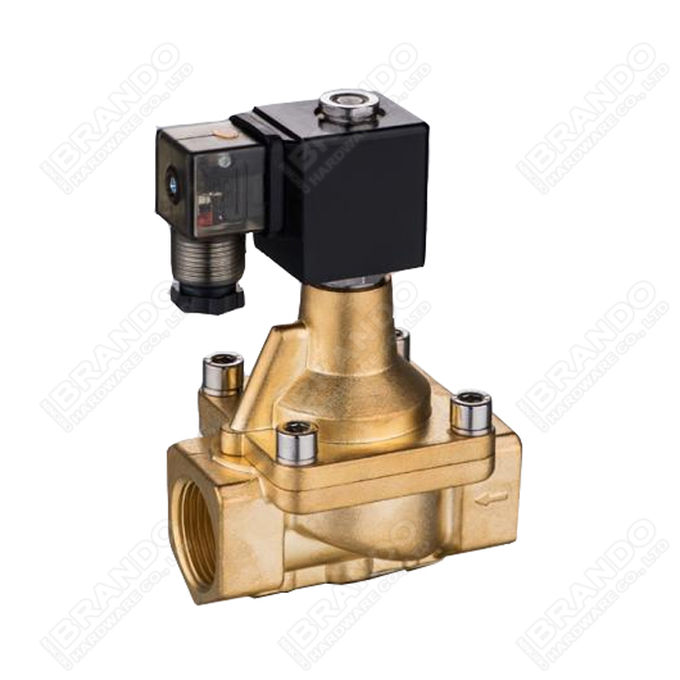

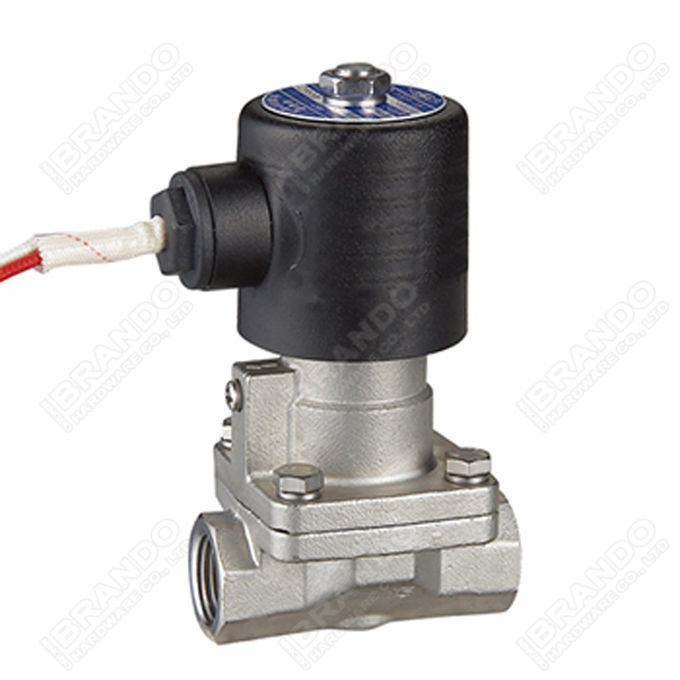

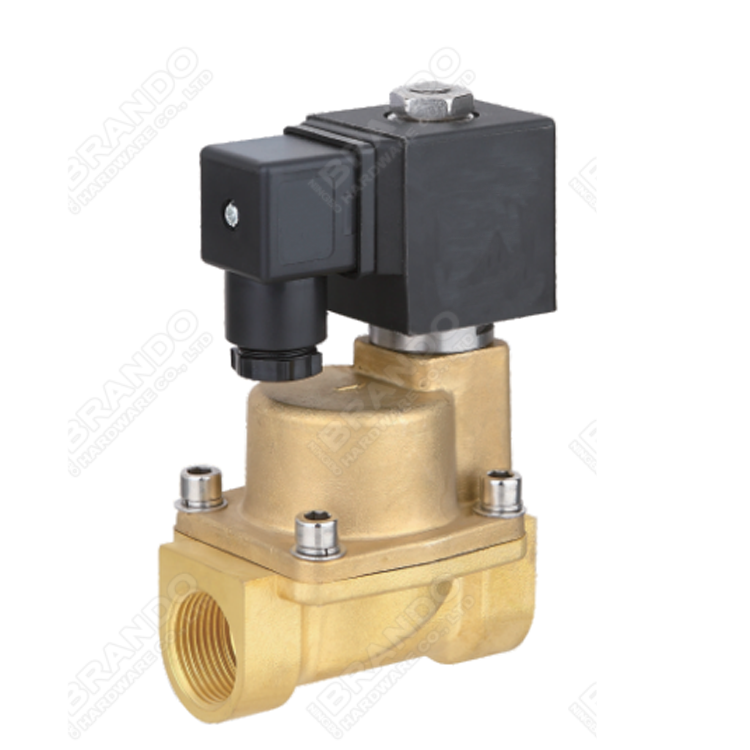

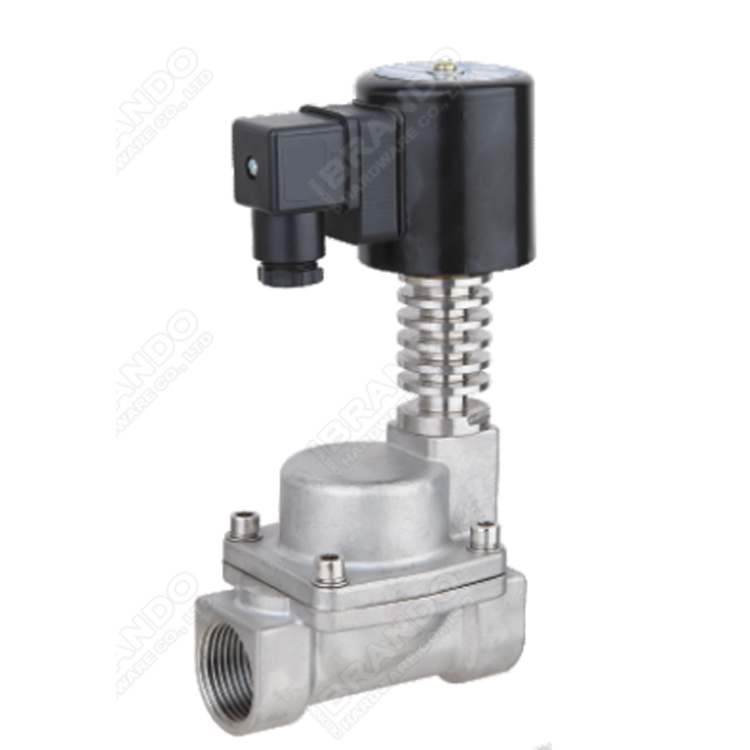

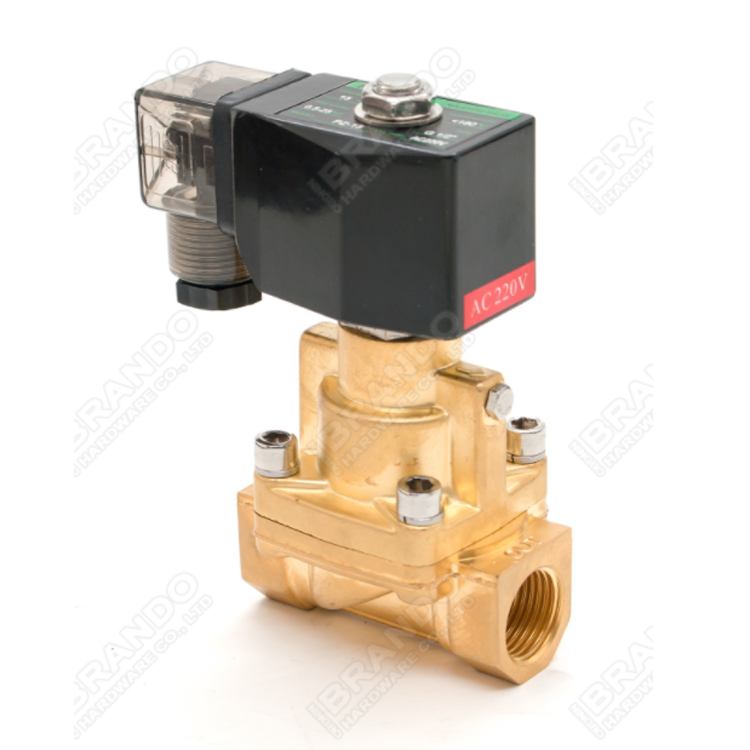

More High Temperature Solenoid Valves:

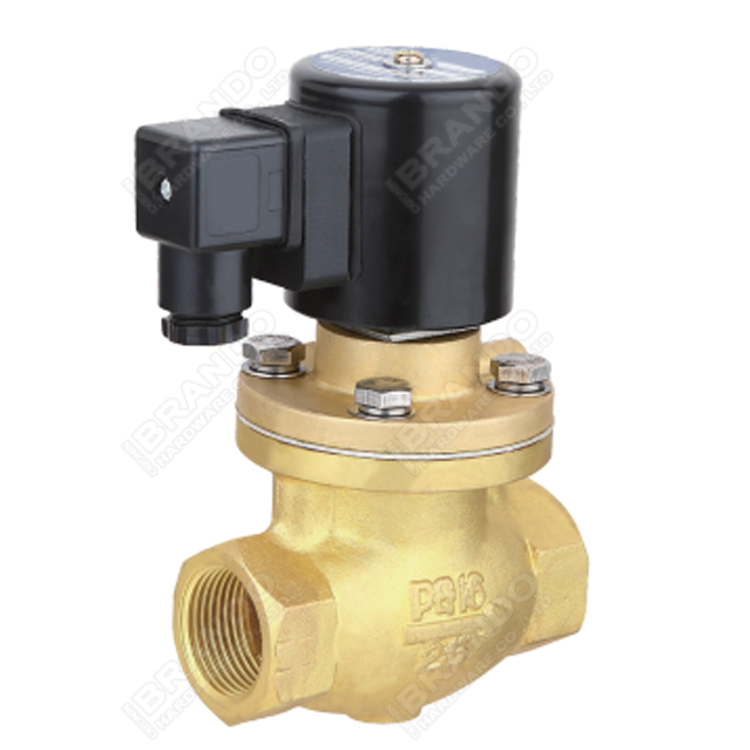

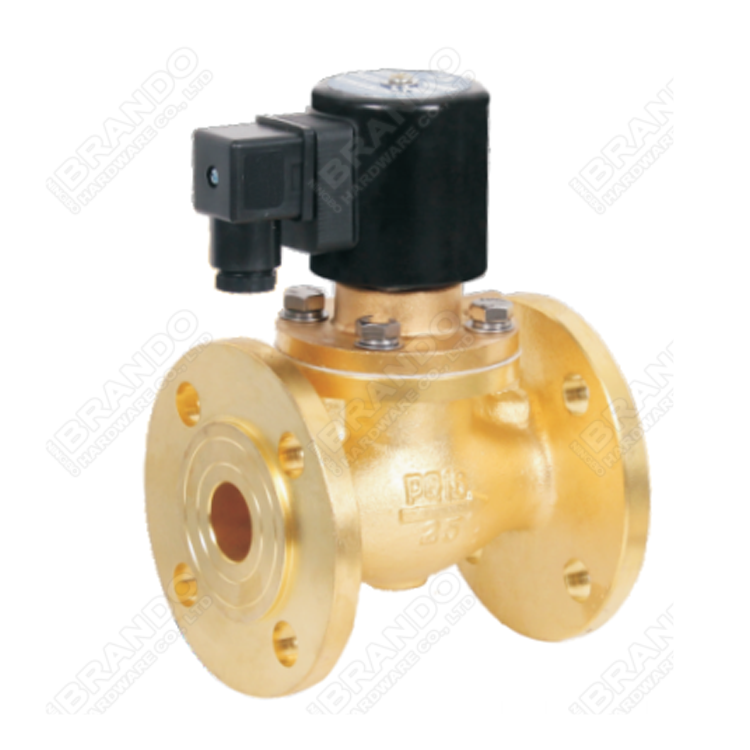

| Brass Solenoid Valve | |||
|
|
|
|
|
|
|
|
| Stainless Steel Solenoid Valve | |||
|
|
|
|
|
|
|
 |
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
