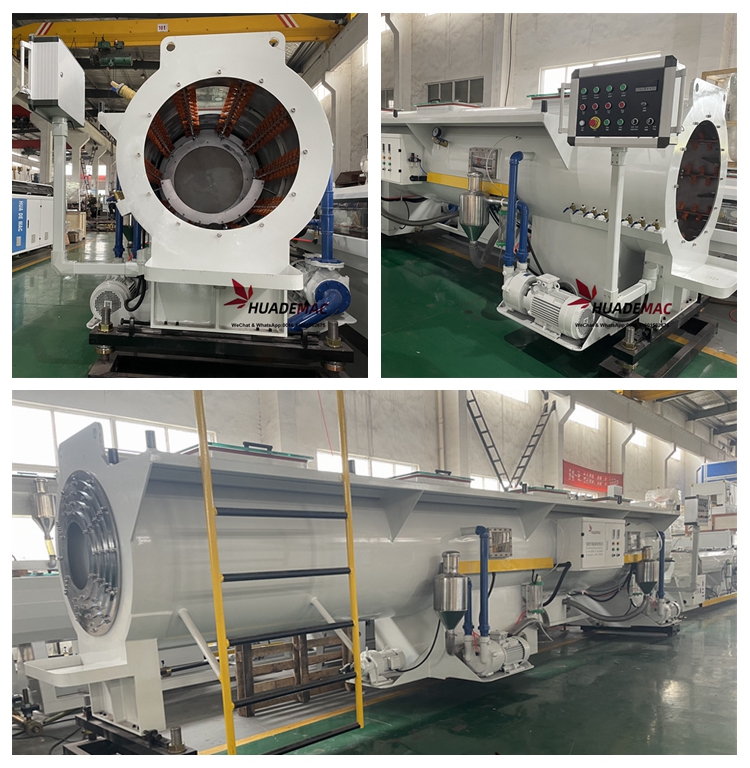

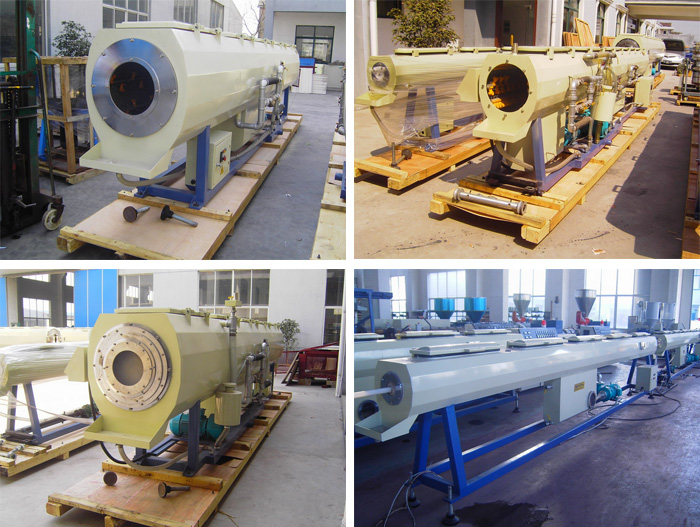

Pipe Extrusion -Vacuum Calibration Tank

HDPE PVC PPR MPP Pipe Machine With Water Tank is one important stage of plastic pipe extrusion lines for PC, PE, PP, PVC.

Also pipes and calibrating sleeves are cooled effectively by nozzles which are inside the tanks for PC,PE,PP,PVC pipe lines.

Features:
1. Optimized design table,tank and water pipe system made from stainless steel.
2. Water pipe system and vacuum system stablity and adjustable.
3. Vacuum forming table,tank, can be adjustable in 3D direction.

Advantages

·       Water temperature controlled by thermostatic valve, thus water consumption is kept low

·        Regulation of constant water level

·        Separate vacuum and cooling circuits

·        High efficient cooling system by big pumps and tubes

·        Full cone nozzles

·        Water flow control with floater

·        Simple filter change during production by means of Bypass System

·        Good accessibility by simple swivelling movement

·        Longitudinal adjustment on tracks for better stability

·        Noiseless and low vibration by means of shock absorbers
