Plate Pallet Wrapping Machine
3 year ago

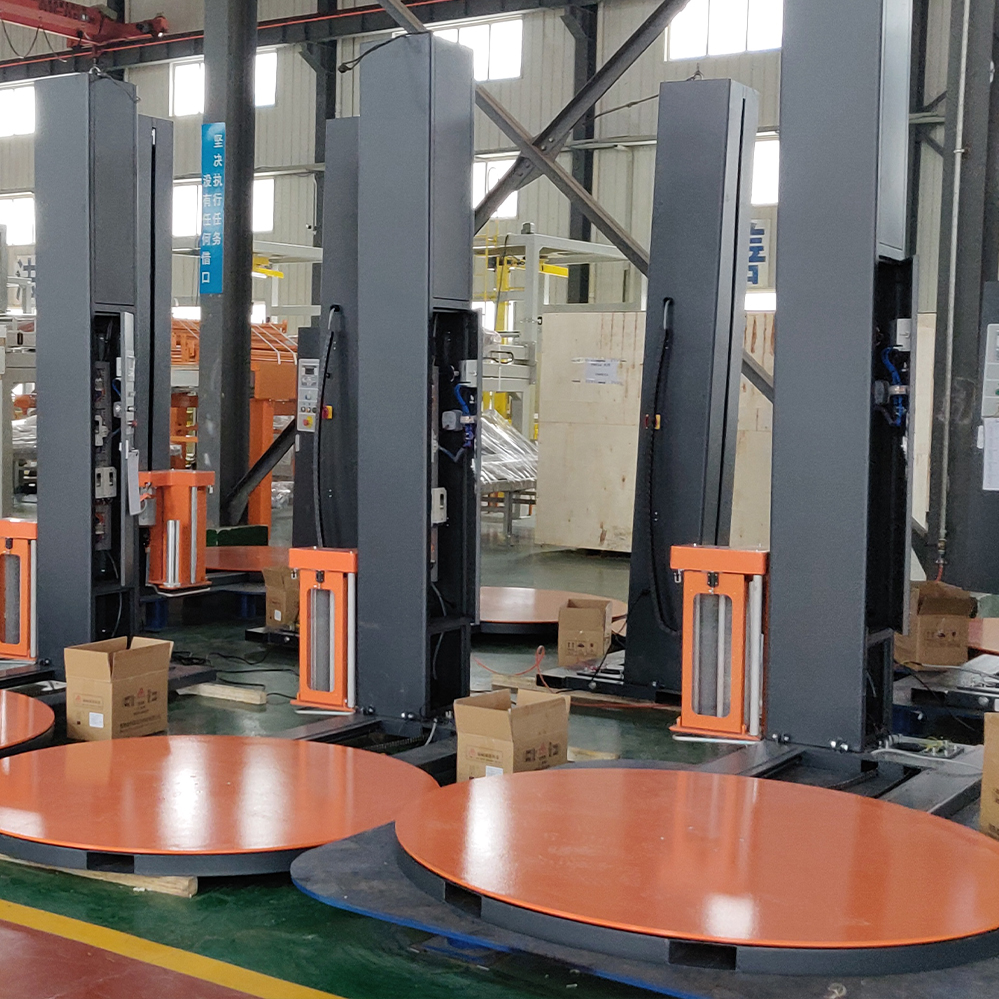

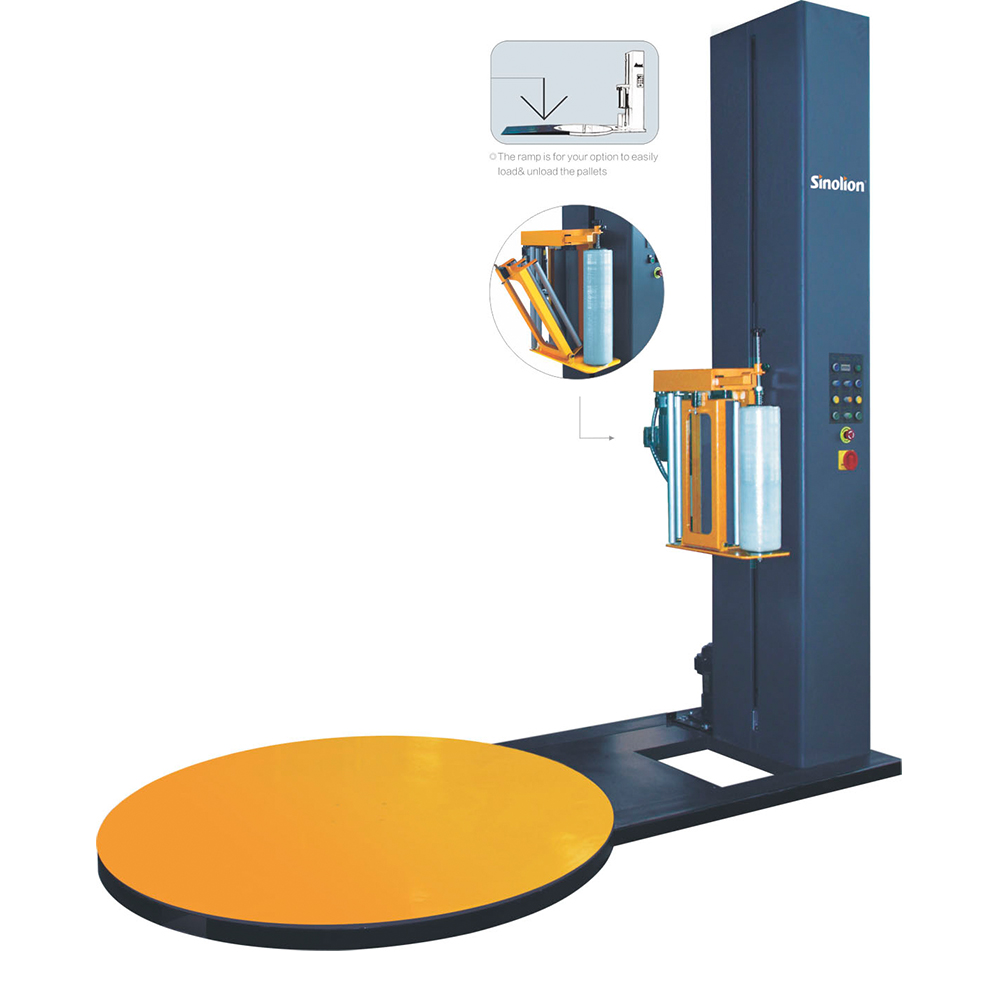

T Series Pallet Wrapping Machine--T1650F Semi-automatic Pre-Stretch Wrapping Machine --Special stretch film packaging machine. The wrapping machine is used in various packaging areas widely. Customers: Coca Cola, Pepsi-Cola, Canon, LG, Panasonic etc.
Technology specifications
|
Item |
Specification |
|
Wrapping size |
500-1200mm (L) *500-1200mm (W) |
|
Packaging height |
Max.2400mm (1800/2800mm available) |
|
Work efficiency |
20-40 loads/H |
|
Turntable speed |
0-12RPM (adjustable, soft start & stop) |
|
Bearing |
Max. 2000kgs |
|
Turntable size |
D=1650mm, H=90mm |
|
Film carriage in front |
Driven pre-stretch carriage, move up and down on side of the tower |
|
Stretch ratio |
Up to 300% |
|
Tower |
Double chain design. Lifting speed adjustable |
|
Control system |
PLC |
|
Weight |
600kgs |
|
Dimension |
2745mm*1650mm*2860mm |
|
Power |
Turntable 0.75kw; film carriage 0.35kw; tower: 0.37kw; 220V 50HZ 1Phase |
|
Remarks: Some parts of the machine can be exchanged according to customer requirements. Option I: Standard low profile ramp. Option II: weight scale |
|
