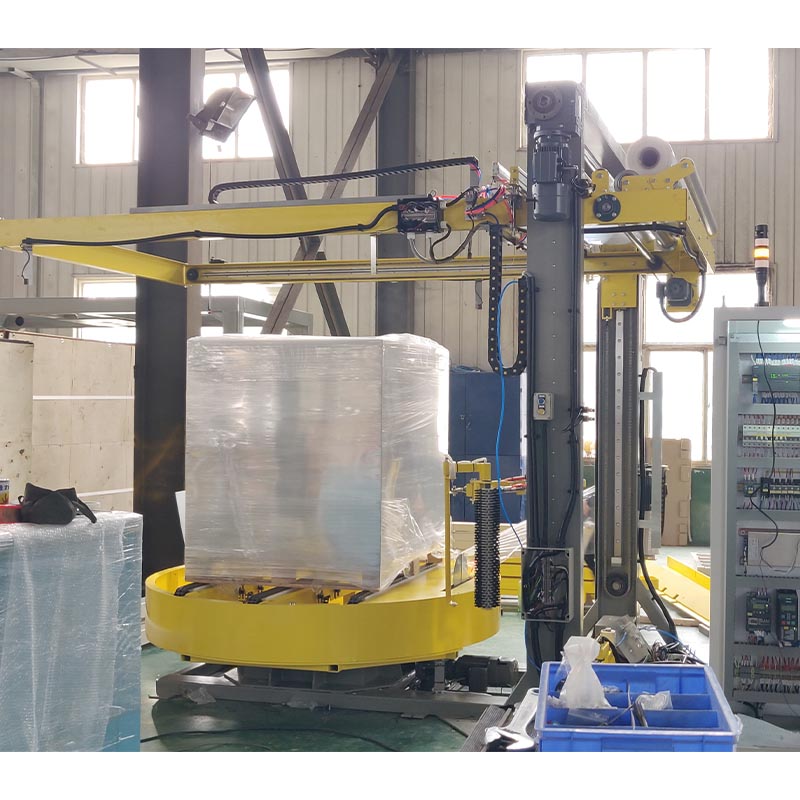

On-line rotary stretch film wrapping machine R1800FZ-PL is a fully automatic stretch wrap system that can operate on-line for the production line.
The maximum speed of arm rotating can be 35 rpm.
Technical data
|
Item |
Specification |
|
Wrapping specifications |
(500-1300)mm*(500-1200)mm. |
|
Packing height |
2400mm |
|
Packaging efficiency |
20-40 loads/H available. (Option: or 30-60 loads/H) |
|
Arm speed |
0-15rpm frequency control. (Option 25rpm, 35rpm) |
|
Arm performance |
High sensitivity emergency brake system, the arm automatically reset. |
|
Film carriage system |
Pre-stretch film carriage, stretch ratio up to 300%, automatic film feeding & cutting device, adjustable speed. |
|
Lifting column |
Chain structure, speed variable frequency adjustable. |
|
Control system |
PLC programmable control, wrapping layer adjustable, automatic height sense. |
|
Machine weight |
680KG (without support) |
|
Machine dimensions |
3440mm*1800mm*3220mm (without convey line) |
|
Power/ voltage |
Arm 1.1/1.5kw, Film carriage 0.37kw, lift 0.37kw/0.55kw, conveyor 0.75kw/AC220V |
|
Option: Safety warning and protection fence, Photo-eye protection for infeed and outfeed goods (Transmission line) |
|
Automatic cut&clamp unit
Pneumatic clamp the film tail after wrapping
Hot wire film cut
Hot sealing then timely wind cooling
