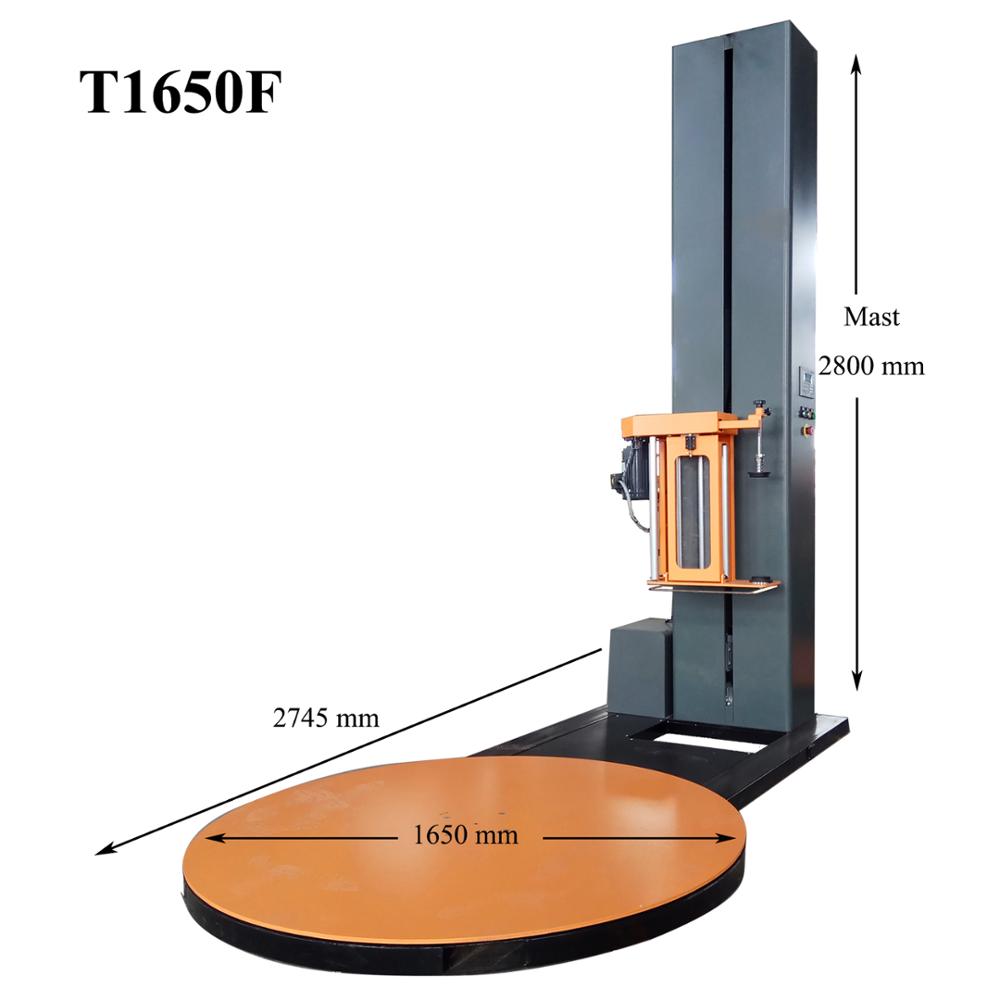

Pre-stretch Pallet wrapping machine-T1650F-L
4 year ago
T Series Pallet Wrapping Machine--T1650F Semi-automatic Pre-Stretch Wrapping Machine --Special stretch film packaging machine. The wrapping machine is used in various packaging areas widely. Customers: Coca Cola, Pepsi-Cola, Canon, LG, Panasonic etc.
Technology specifications
Item
Specification
Wrapping size
500-1200mm (L) *500-1200mm (W)
Packaging height
Max.1800mm (2400/2800mm available)
Work efficiency
20-40 loads/H
Turntable speed
0-12RPM (adjustable, soft start & stop)
Bearing
Max. 2000kgs
Turntable size
D=1650mm, H=78mm
Film carriage
Driven pre-stretch carriage, move up and down on
side of the tower
Stretch ratio
Up to 1:3.5
Tower
Double chain design. Lifting speed adjustable
Control system
PLC
Weight
600kgs
Dimension
2745mm*1650mm*2860mm
Power
Turntable 0.75kw; film carriage 0.35kw;
tower: 0.37kw; 220V 50HZ 1Phase
Remarks: Some
parts of the machine can be exchanged according to customer requirements.
Option I: Standard
low profile ramp.
Option II: Weight
scale
