SMP3000 Series Benchtop DC Power Supply

Overview

SMP3000 series DC power supplies are an economical, high-switching speed, high-power density Benchtop DC power supplies based on MOSFETs. It adopts single-phase 220Vac input with designed output power 1.5KW and output voltage range from 6Vdc to 600Vdc.

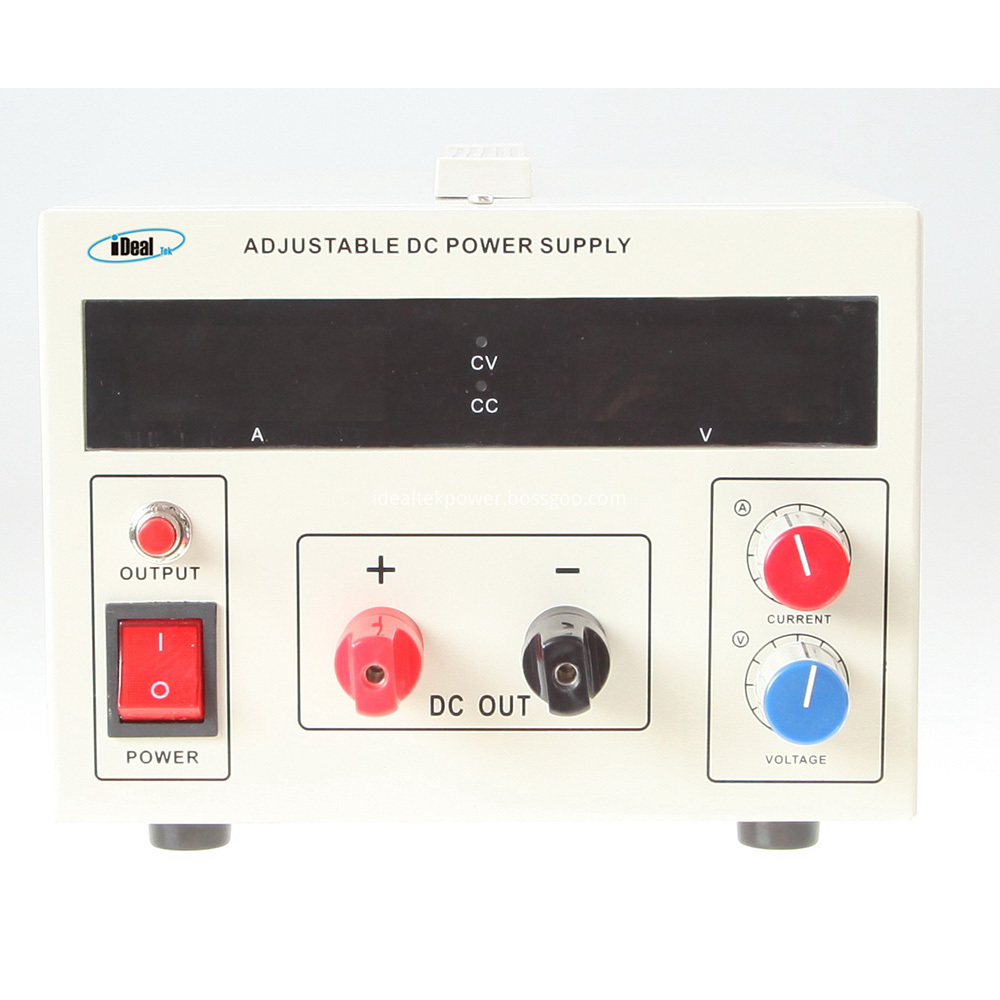

SMP3000 Bench DC power supplies are constant voltage and constant current adjustable DC Swichging power supplies with low ripple. High-precision, high-efficiency electronic characteristics. It adopts small and compact design. The output voltage and output current of the power supply can be adjusted separately through the knobs on the front panel and the independent LED voltage and current meters can display the output voltage and current value separately.

The Benchtop AC DC power supplies are equipped with over-current limiting and over-temperature protection, and are mainly used for LED testing, small precision electroplating, and electrical equipment testing and maintenance purposes.

Features

l  Max. Output power reaches 1500W.

l  CV / CC working modes, automatic switchable between two modes.

l  Voltage & Current continuously adjustable, 10-turn potentiometer setting.

l  Output voltage & current LED display.

l  Intelligent fan cooling, withstand continuous working.

l  Adaptability to continuous or dynamic loads.

l  Automatic shutdown for over heat.

l  205*165*380 portable housing.

l  Low ripple and noise.

Applications

l  Products burn-in test, such as DC motors, DC fans, vehicle DVD, vehicle AUDIO, resistors and capacitors etc.

l  LED, motors and DC fans test.

l  Accumulator charging.

l  Labs and universities.

l  Small electrolysis or electroplating system.

l  Other conditions need stable DC output.

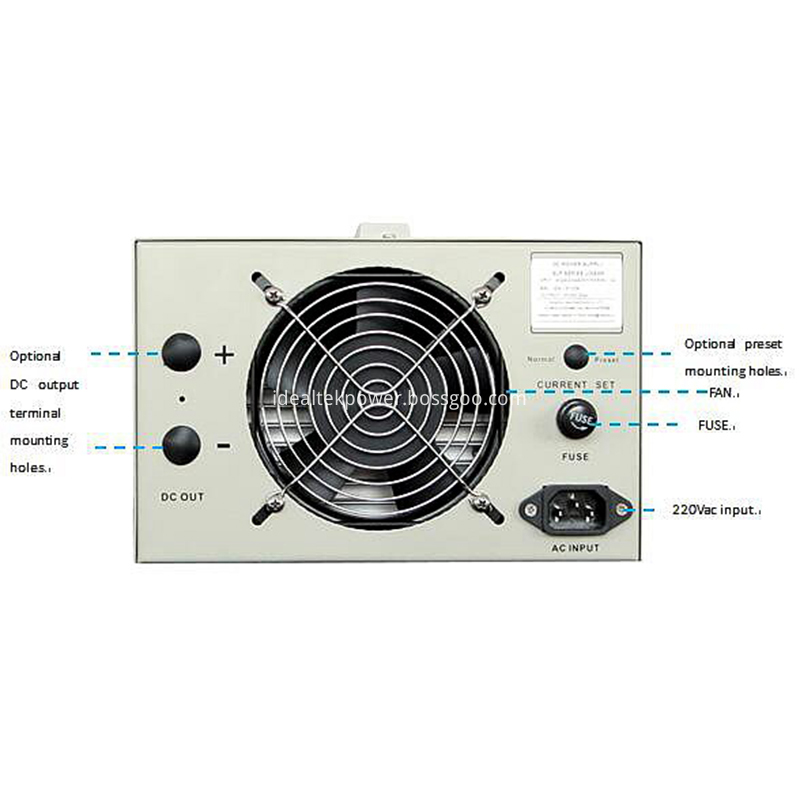

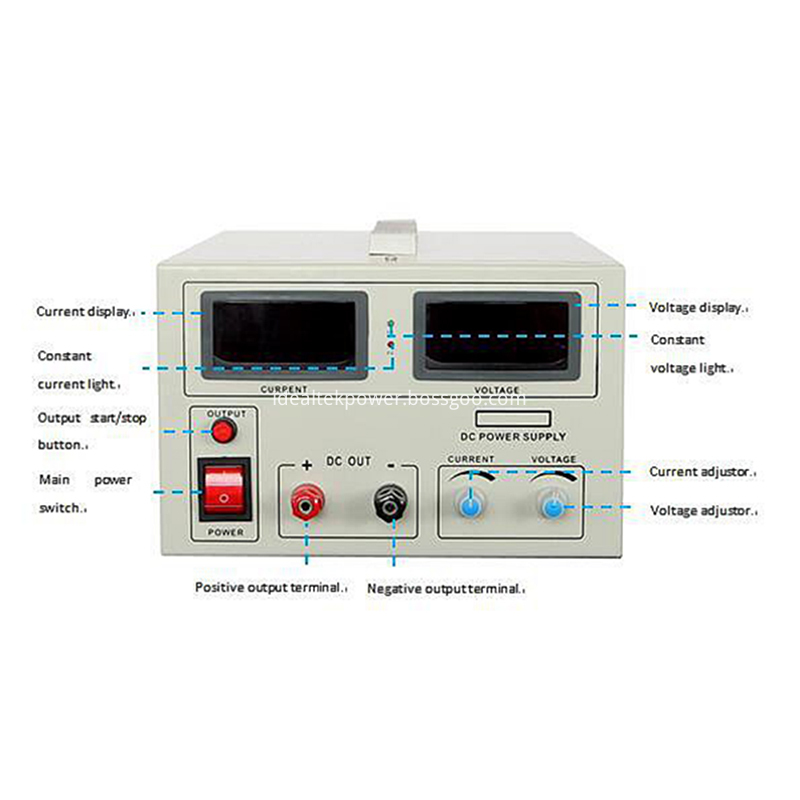

Front & Back Panel instruction
