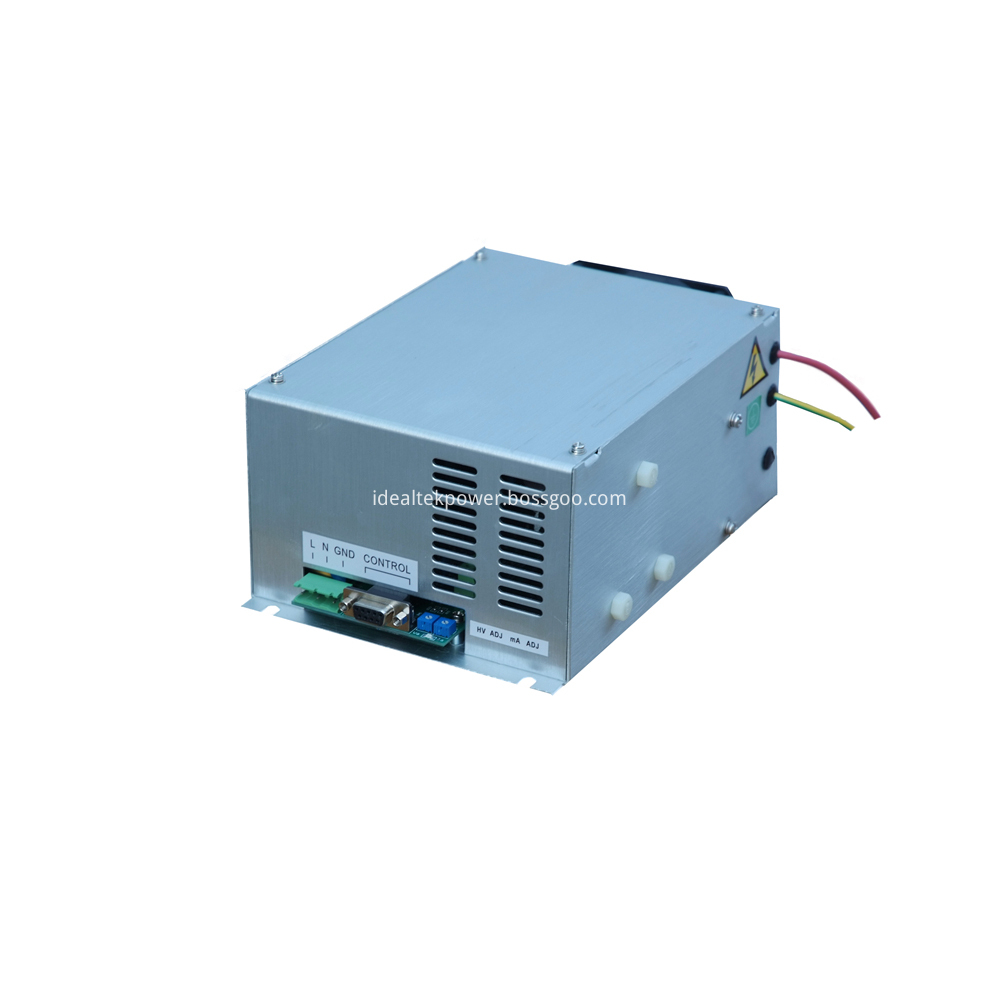

CCP1000 Series High Voltage Power Module
Overview
The CCP1000 series high voltage power supply is a single-phase 220Vac input modular type high voltage power supply. The whole series HVPS adopts small and compact aluminum chassis. The designed output power is up to 1KW with the output voltage levels, at 5KV / 10KV / 20KV / 30KV / 40KV / 50KV.
Using resonant inverter with PWM control, it is a constant-voltage and constant-current type high voltage power module, the output voltage and current of the high-voltage power module can be continuously adjusted from approximately 0 to the rated value with potentiometers installed on the local circuit board.
The HV power module is also equipped with a DB9 interface to facilitate the bus control of embedded installation equipment. Customers can apply 0-10V signals and dry contact signals to the interface according to our interface definition to achieve comprehensive control and monitoring functions on the power supply, like high voltage start / stop, output setting and reading.
The CCP1000 series high-voltage power supply module is equipped with complete protection functions to deal with sparking, short-circuit and overload conditions. With the discharge protection circuit recommended by iDealTek-Electronics, this high-voltage module can also cope with charging and discharging conditions of conventional capacitors and other applications that require the embedded high-voltage power supply modules.
Features
l Charge and discharge frequency: customizable.
l Repeatability accuracy: better than 0.5%
l Withstand ground potential rise.
l Output voltage & current continuously adjustable.
l Output voltage adjustable via local potentiometer or remotely.
l Output polarity on customers' demand.
l Small size, light weight
l Stable output, high efficiency (85%)
Specifications
|
Input |
Typical value |
Unit |
||||||||
|
Voltage |
220 (200 ~ 240Vac) |
Vac |
||||||||
|
Current |
< 6 @ 220Vac |
A |
||||||||
|
Output |
5 |
10 |
20 |
30 |
40 |
50 |
|
|
|
KV |
|
Range |
0-5 |
0-10 |
0-20 |
0-30 |
0-40 |
0-50 |
|
|
|
KV |
|
Power |
1000 |
1000 |
1000 |
1000 |
1000 |
1000 |
|
|
|
W |
|
Current |
200 |
100 |
50 |
33 |
25 |
20 |
|
|
|
mA |
|
Features |
||||||||||
|
Line regulation |
<0.5% |
|||||||||
|
Load regulation |
<0.5% |
|||||||||
|
Temperature drift |
<300ppm/℃ (working temperature<55℃) |
|||||||||
|
Ripple voltage |
<1% (@100% load) (R.M.S value) |
|||||||||
|
Working temperature |
-10℃ ~ 55℃ |
|||||||||
|
Storage temperature |
- 20℃ ~ 80℃ |
|||||||||
|
Size |
360mm×180mm×136mm |
|||||||||
|
Weight |
2Kg ~ 6Kg (depends on output voltage) |
|||||||||

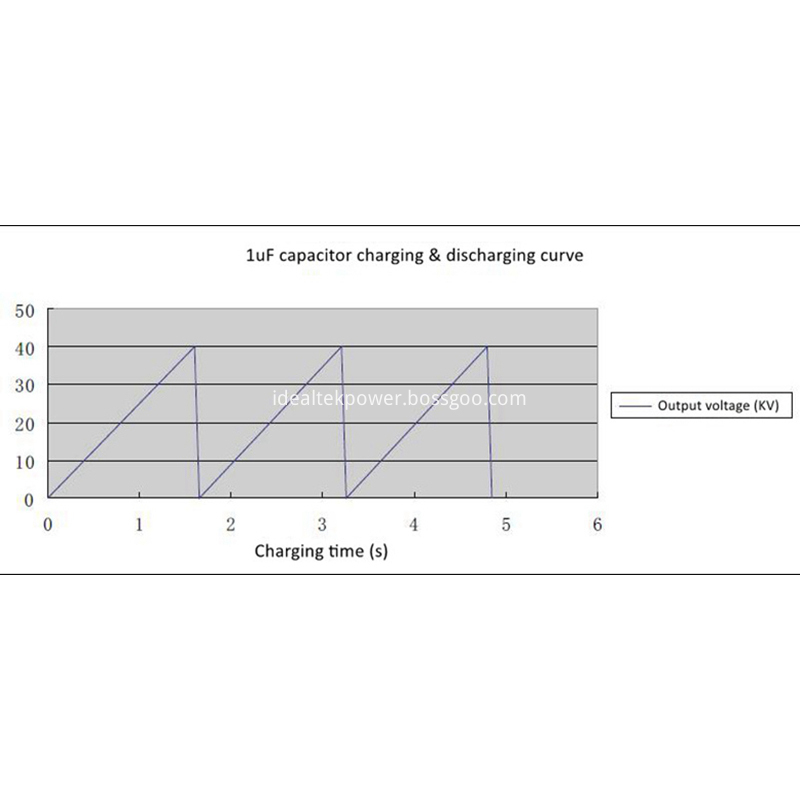

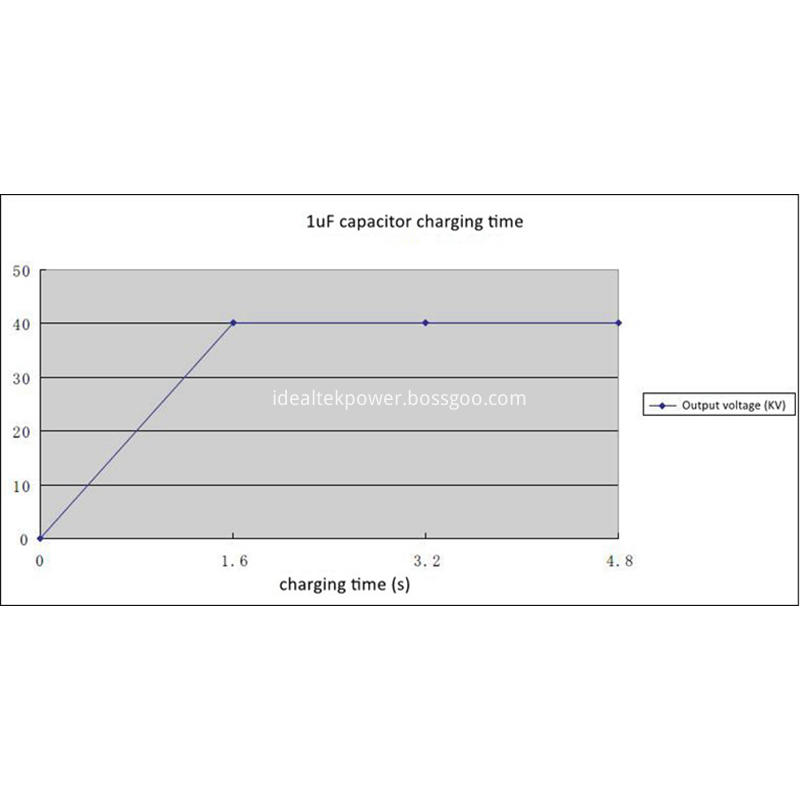

High Voltage Power Module Continuous Charging & Discharging Curve (40KV, 1000W)

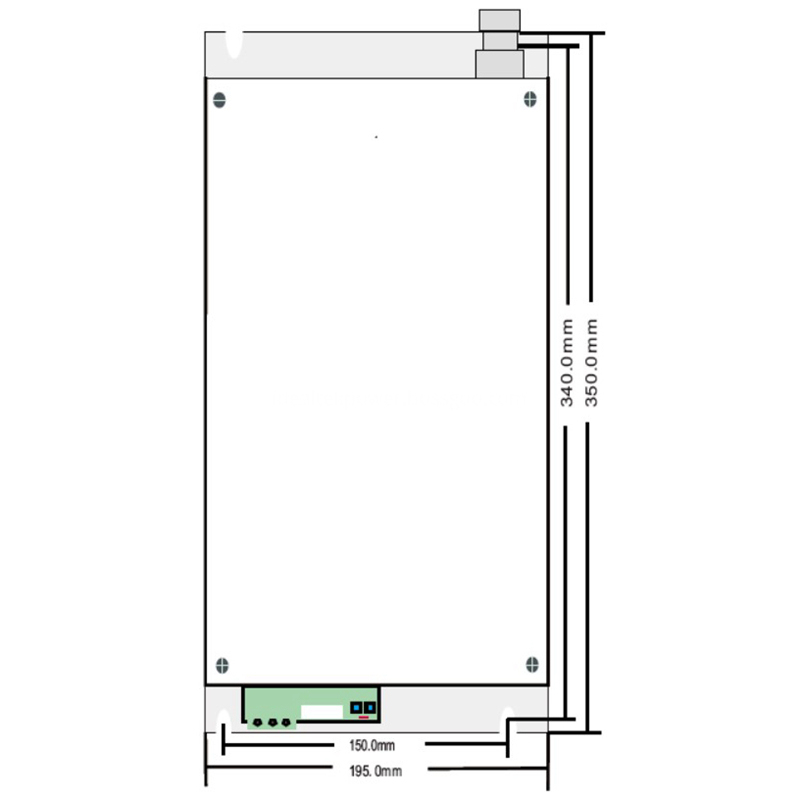

Physical Drawing
Safety Notes
Please check below issues before starting power supply.
(1). Power supply should be located in clean and dry condition.
(2). No relative objects besides HV output or HV load.
(3). Make sure that reverse current of load well-grounded via GND terminals on the back panel.
