HPS Series High Power High Voltage DC Power Supply

Overview

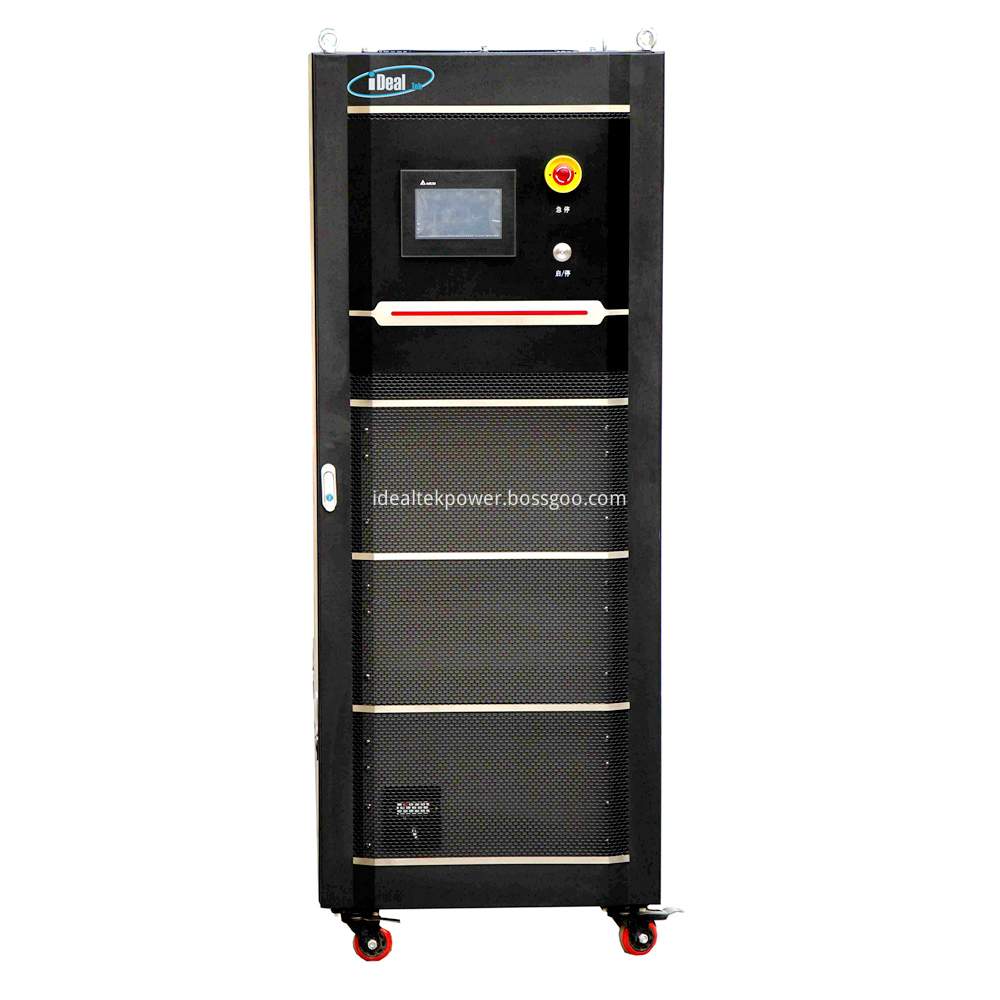

HPS series ultra high-power high-voltage power supplies are developed on the basis of HP series high power high-voltage power supplies using internal high-power high-voltage modules in parallel, using 19-inch standard cabinet, control part, inverter, and high-voltage transformer are installed in side under split design.

This series of high voltage power supplies are featured for ultra-high accuracy, high precision, and high stability electronic characteristic. The output voltage is optional from 5KV to 300KV, and the power has reached an astonishing ultra-wide range of 50KW to 500KW. The power supply adopts a mixed cooling method of air cooling of the control part, water cooling and oil cooling of the main power unit. The internal module redundancy technology and perfect protection circuit ensure the excellent reliability of the high voltage power supplies under high-voltage and high-power output.

This series of high-power high-voltage power supplies uses touch screens with built-in potentiometers and The LCD meter or LCD for high voltage output control and monitoring. This series of high power HV power supplies can be equipped with RS485 interface and control software to control and monitor the operating parameters of the high-voltage power supply

This type of high-power HV power supplies are currently mainly customized according to cleints' requirements, and the industries currently involved are cutting-edge industries such as mining gravel, super-power capacitor charging, electron beam smelting, and tube aging.

Features

l Short circuit protection

Could accept long-term discharge sparking and short-circuiting for special-purpose environments also can be made to be short-circuit protection.

High-voltage power supply is equipped with a special output current short-circuit suppression circuit to prevent high-voltage power supply output discharging and sparking short circuit

The high-voltage power supply is equipped with a special discharging protection circuit to ensure that other equipment and the power supply are not damaged.

Ultra-short protection time: When the sensitive current detection circuit detects that the current exceeds the protection set value, power supply would enable the current-limit & power-limit circuit to ensure that the output current is controlled within the set value. The protection startup time is within 10 microseconds and can be achieved in 3 microseconds as requirements.

l Double current-protection circuit

The first-level protection: The dynamic current detection control circuit stabilizes the current at the set value dynamically.

The second-level protection: when the output current threshold protection control circuit detects that the output current exceeds the set threshold value, power supply immediately stops the current energy output cycle, and re-enters the next energy output cycle when the circuit resets, and the control circuit has soft-start process on new energy cycle after each reset, that is, the energy output has a rising process from zero to maximum. This control mode ensures a smooth process for each energy output.

The power supply voltage-drop flash detection circuit detects short-circuit and sparking condition of the load at the first time, and enables the protection circuit in time.

l Redundancy technology

HPS high-power power system has redundancy configuration inside, this design can cut off any one or a group of single-unit at any time without interrupting the operation of the entire power supply system.

The application of this technology improves the stability of some systems that cannot be powered down.

l Module design

The power system adopts modular design, the front-end inverter and the rear-stage rectification are independent of each other, which makes installation and maintenance easy.

l Overvoltage protection

When the output voltage exceeds the upper limit voltage set by the customer, the power supply will automatically cut off the output and alarms.

l Overcurrent protection

Over current protection value 0 ~ 100% rated value continuously adjustable, power supply activates protection when current exceeds protection value.

l Overload protection

Power supply has built-in overload protection circuit to prevent the power supply from being damaged due to overload.

l Overheat protection

Power supply has built-in over-heat protection circuit, power supply activates protection when the temperature of the power supply radiator exceeds 75 degrees and the automatically resumes below 75 degrees.

l Grid input protection

Power supply shutdown when the input voltage exceeds the range of 342V ~ 420V.

l Constant voltage (CV) & Constant current (CC)

Output voltage & current continuously adjustable from 0 to rated value, CV & CC automatically switchable.

l Linkage adjustment

The latest linkage adjustment technology, using a network cable to connect each module via synchronous adjustment of each module to achieve the average output of each module.

l Surge limit

Safety Cautions

1. This power module has HV output, only professional person could operate it.
2. Please make sure of good grounding before operation.
3. Capacitor charging power supply has low internal stored energy, please NO no-loading working.
4. Keep power module clean and good ventilation.
5. HV input & output connectors or HV load no touch anything.
