HP Series High Power High Voltage Power Supply

Overview

HP series high voltage power supplies are the first-generation high power high-voltage power supplies product designed by iDealTek-Electronics.

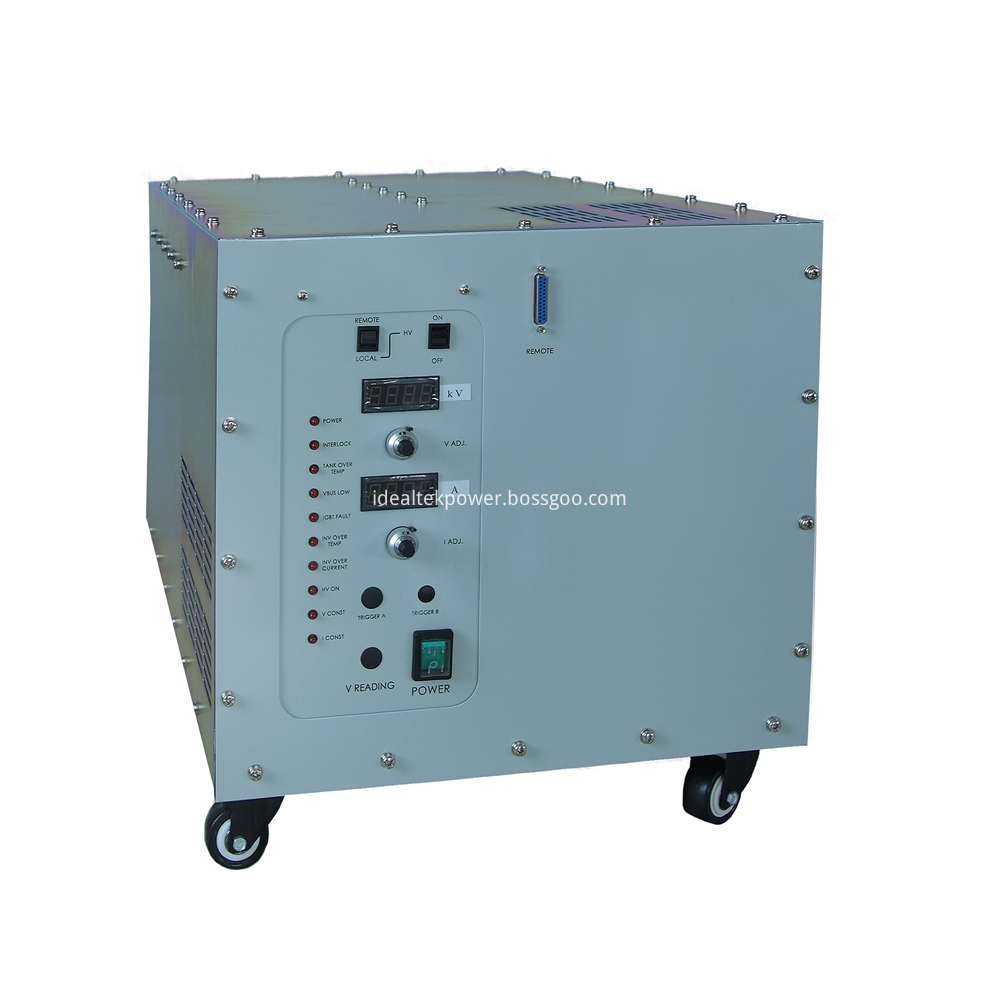

It adopts standard 19-inch chassis structure to facilitate the integration and installation of high-power high-voltage systems. The single-unit power ranges from 5kW to 15kW with the high voltage output range from 1KV to 60kV.

The high-power inverter used in the HP series high power high voltage power supplies adopts the series resonant inverter independently designed by iDealTek. The input terminal adopts an ultra-low loss filter capacitor and is directly installed on the top of the power module. The input rectification, filtering, and inverter are all integrated on the heat sink. According to the voltage level and power level, it is decided to use air cooling or water cooling or oil plus water cooling mode to ensure good heat dissipation of the power supply. The high-voltage transformer uses a distributed rectifier transformer. These two characteristics determine that this series of High-power high voltage power supplies have very high reliability and very low energy storage.

The output voltage and current of the high voltage power supplies can be controlled and read through the front panel of the power supply. And, this series of high-power HV power supplies are equipped with a DB25 interface as standard. Customers can edit the control software according to our communication protocol or apply 0 - 10V signal and dry contact signal on the interface according to our interface definition to achieve control and monitoring of the power supply, such as high voltage start/stop, output settings and readings.

Features

l  Professional high voltage power supply with continuous HV output ability.

l  Output voltage: 1KV / 2KV / 5KV / 10KV / 20KV / 30KV / 40KV / 50KV / 60KV available.

l  Output power: 5KW / 10KW / 15KW available.

l  Output voltage & current both 0 ~ 100% rated value continuously adjustable.

l  CV & CC working modes.

l  Max. charging/discharging repetition frequency: 50Hz

l  Charging/discharging repetition accuracy:  <2% (@50Hz)

Safety Cautions

1. This power module has HV output, only professional person could operate it.
2. Please make sure of good grounding before operation.
3. Capacitor charging power supply has low internal stored energy, please NO no-loading working.
4. Keep power module clean and good ventilation.
5. HV input & output connectors or HV load no touch anything.
