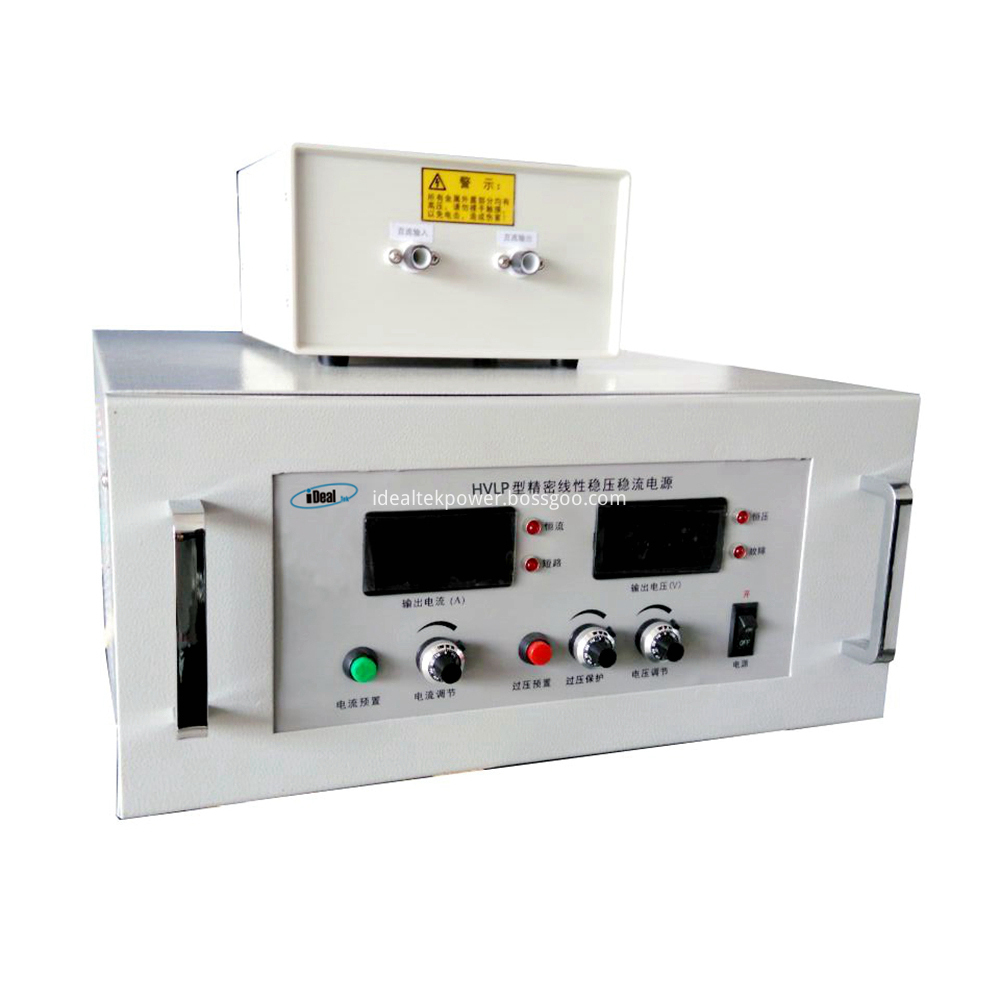

HVLP High Power High Voltage Linear DC Power Supply

Overview

HVLP series Linear High Voltage Power Supplies are high voltage power supplies that achieve AC/DC conversion through power frequency transformers and transistor loop control. Compared with switching high voltage power supplies, high-voltage linear power supplies have higher stability, higher accuracy, and lower output ripple. And the most important, because of the use of the power frequency AC/DC conversion principle, the high voltage linear power supply has no high-frequency radiation interference, and it is especially suitable for use in places with restrictions on EMC and EMI.

The HVLP series linear HV power supplies have a wide range of output specifications, the output power ranges from 1KW to 400KW, and the output voltage can reach up to 50KVDC, and accept customization.

The whole series HV linear power supply adopts industrial-grade metal chassis, pure copper AC/DC multi-insulation high-voltage transformer with varnish treatment, high-reliability multi-transistor filter loop, ensuring the power supplies can run for a long time at full load with high stability, high accuracy, and ultra-low ripple electronic characteristics, equipped with a complete protection circuit, which can better ensure the reliability of the linear power supply itself and the safety of the customer's load.
The output voltage and current can be adjusted by the 10-turn potentiometer with scale and lock on the front, equipped with 4 1/2-digit high-resolution LED meters for output value reading, and RS communication interface can also be added for remote control and monitoring of linear HVPS.

Features

l Over 200 models, output voltage: 800V ~ 50KV, output current: 0 ~ 500A, output power: 10KW-400kW.
l Constant voltage mode and constant current mode, automatic switchable, output voltage / current continuously adjustable from 5% to 100% rated value.
l Over voltage protection: Over voltage value continuously adjustable from 0 to 110% rated value, auto-shut down when output voltage exceeds the over voltage set point.
l Short protection: Withstand short-circuit under start-up or any working modes, sound & light alarm when output has short. (<6KV)
l Auto-tripping when short-circuit and sound & light alarm (>6KV)
l Over load protection: Auto-tripping when power supply or load has fault and output current exceeds 1.5 times of rated value.

Applications

l Institutes, university HV tests.
l HV electronics component burn-in test, gas discharging test.
l Klystron, magnet tube, electronic gun driving.
l HV capacitor charging.
l Other conditions need HV output.
