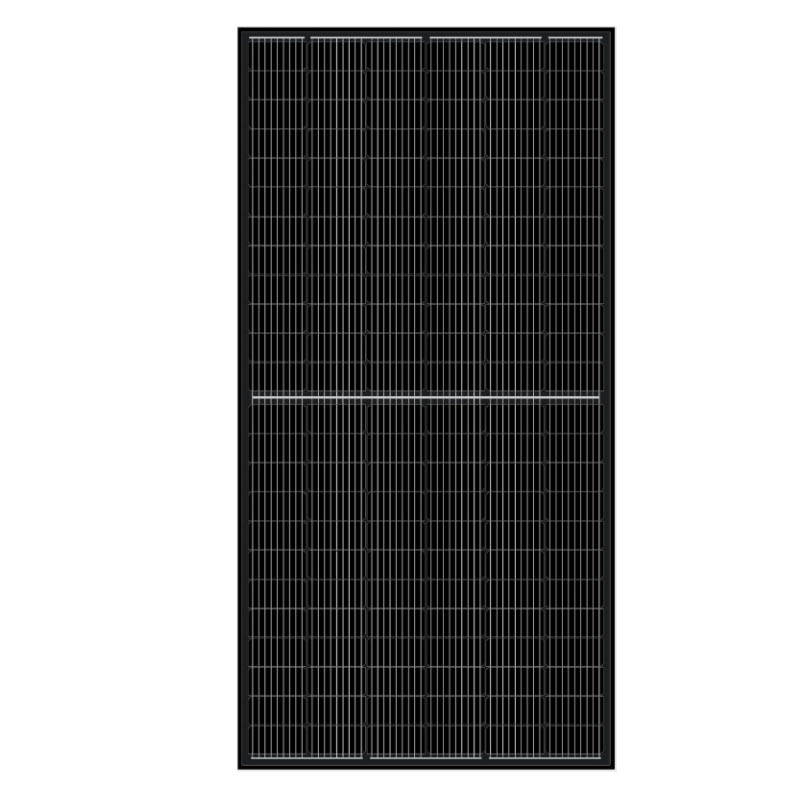

FULL BLACK MONO 9BB HC 425-450W

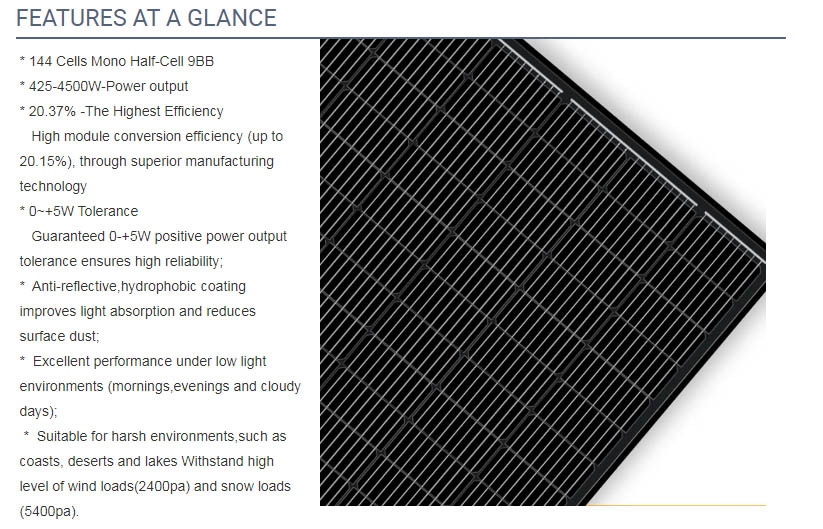

RS7I-M HALF-CELL series is produced with high efficiency multi-busbar cells, which can reduce the module internal power loss to improve its conversion efficiency, as well as lower the failure risk caused by cracks and broken busbar to enhance the module reliability. Combined with half-cell technology, the module is highly resistant to hot-spot crisis caused by shadow effect. The full black design makes the module appearance outstanding and ideal for building installations. Poly Solar Panel is High Efficiency Solar Panel for Solar Systems and it's solar power is always high
PRODUCT SPECIFICATIONS
ELECTRICAL DATA(STC)
STC: Irradiance 1000% W/m² , Cell Temperature 25°C,Air Mass AM 1.5 according to EN 60904-3
Rated Power in Watts-Pmax(wp) | 425W | 430W | 435W | 440W | 445W | 450W |
Open Circuit Voltage-Voc(V) | 48.3V | 48.5V | 48.7V | 48.9V | 49.1V | 49.3V |
Short Circuit Current-Isc(A) | 11.23A | 11.31A | 11.39A | 11.46A | 11.53A | 11.6A |
Maximum Power Voltage-Vmp(V) | 40.5V | 40.7V | 40.9V | 41.1V | 41.3V | 41.5V |
Maximum power current-Imp(A) | 10.5A | 10.57A | 10.64A | 10.71A | 10.78A | 10.85A |
Module Efficiency(%) | 19.24% | 19.46% | 19.69% | 19.91% | 20.14% | 20.37% |
ELECTRICAL DATA(NOCT)
NOCT:Irradiance at 800 W/m²,Ambient Temperature 20°C,Wind Speed 1 m/s.
Maximum Power-Pmax(WP)
317.4W
321.1W
324.9W
328.6W
332.3W
336.1W
Open Circuit Voltage-Voc(V)
45.3V
45.5V
45.7V
45.8V
46.0V
46.2V
Short Circuit Current-Isc(A)
9.08A
9.15A
9.21A
9.27A
9.33A
9.38A
Maximum Power Voltage-Vmp(V)
37.7V
37.9V
38.1V
38.3V
38.5V
38.6V
Maximum Power Current -Imp(A)
8.42A
8.47A
8.53A
8.59A
8.64A
8.7A
TEMPERATURE&MAXIMUM RATINGS
Nominal Operating Cell Temperature(NOCT)
45°C±2°C
Temperature Coefficient of Voc
-0.32%/°C
Temperature Coefficient of Isc
0.05%/°C
Temperature Coefficient of Pmax
-0.39%/°C
Operational Temperature
-40~+85°C
Maximum System Voltage
1500V(IEC)/1500V(UL)
Max Series Fuse Rating
20A
Limiting Reverse Current
20A
MECHANICAL DATA
Solar Cells
Half-Cell Mono 166x83mm, 9 Bus bars
Cell configuration
144 Cells (6x24)

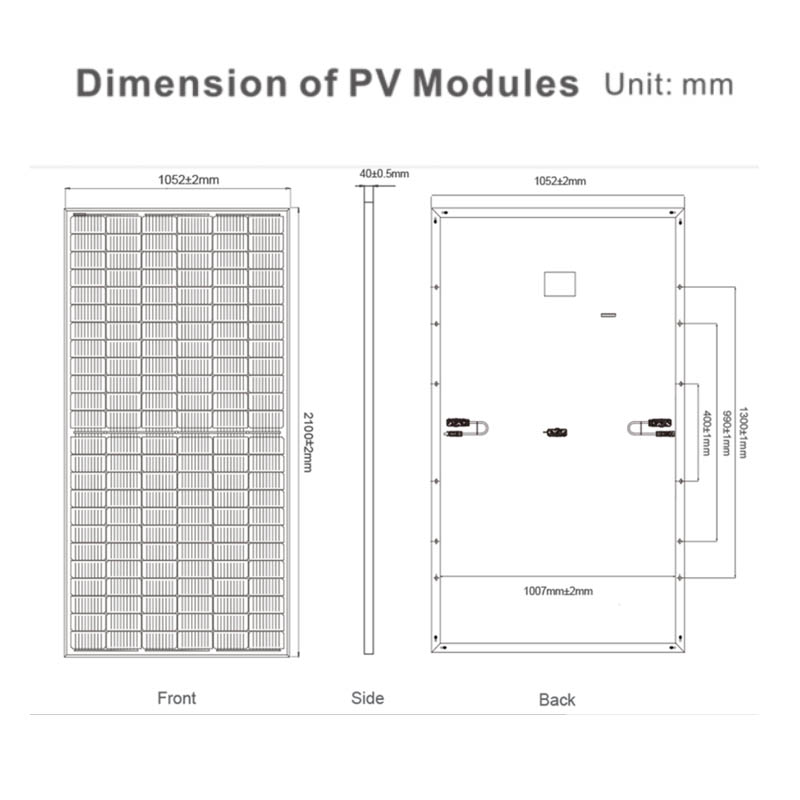

Module dimensions
2115x1052x40mm(82.7*41.4*1.57in)
Weight
25KGS
Front Cover
3.2mm Tempered Glass
Frame Material
Black Anodized Aluminum Alloy
J-Box
IP67 or IP68, 3 Diodes
Cable
4mm2(IEC)/12AWG(UL),300mm
Connectors
MC4 or MC4 Comparable
Standard Packaging
27pcs/pallet
PACKAGING CONFIGURATION
40HQ
Modules per container
616pcs
Package
27pcs/pallet, 2pcs/carton
Package Number
22pallets + 11 cartons
