H2BK 90 bar Normally Open Solenoid Valve
2 year ago
Normally Open 90 bar High Pressure Solenoid Valve
Product Features:
1. Working Medium: Water, Air, Gas, Oil, Liquid, etc
2. Max Working Pressure: 100 bar (See the parameter table below for details)
3. Seal Material: NBR, EPDM, FKM, PTFE
4. Body Material: Brass, Stainless Steel
5. Port Size: 1/8'', 1/4'', 3/8'', 1/2'', 3/4'', 1''
6. Orifice Size: 1mm, 1.5mm, 6mm, 10mm, 15mm, 20mm, 25mm
7. Function: 2 Way Normally Open
8. Voltage: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC (50/60Hz)
Technical Data:
|
Model No
|
Port Size
(inch)
|
Orifice Size
(mm)
|
CV
|
Min Working Pressure
(bar)
|
Max Working Pressure
(bar)
|
Function
|
|
H2
|
1/8''
1/4''
|
1
|
0.04
|
0
|
90
|
2 Way
Normally Open
|
|
1.5
|
0.1
|
0
|
50
|
|||
|
3/8''
|
6
|
0.8
|
0.5
|
100
|
||
|
1/2''
|
10
|
1.8
|
0.5
|
70
|
||
|
1/2''
|
15
|
4.6
|
0.5
|
50
|
||
|
3/4''
|
20
|
8.5
|
0.5
|
50
|
||
|
1''
|
25
|
12
|
0.5
|
50
|

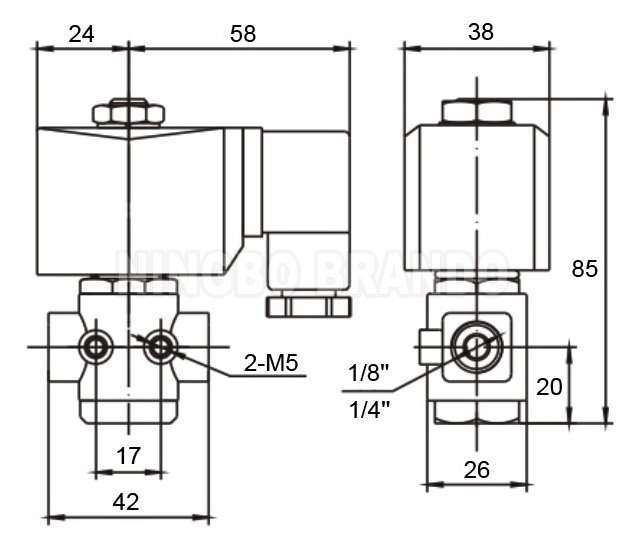

Main Dimension:
Production Show:
Production Video:
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
