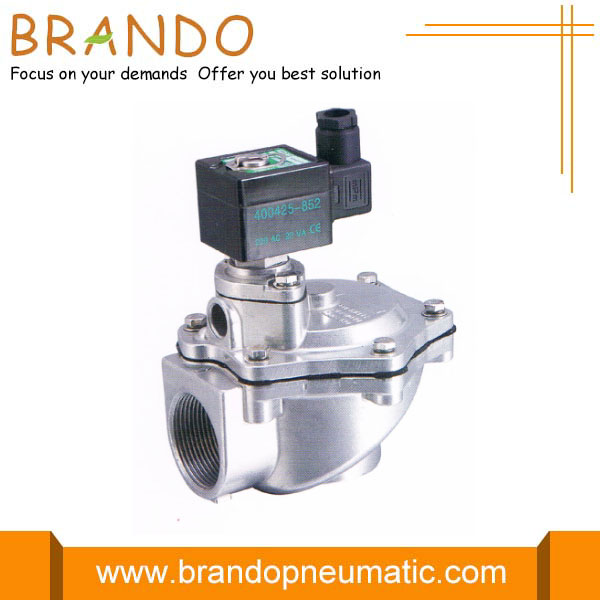

SCG353A047 1 1/2'' Threaded Dust Collector Pulse Jet Solenoid Valve 24V 110V 220V

2/2 series dust collector 8353H038 SCG353A047 pulse jet valve, alumium bodies, air and inert gas 3/4" to 3" NPT

The orifice of BPA353A047 is 52mm, port size is 1 1/2", kv flow factor is 46m³/h, 768l/min, the minimun operating pressure differential is 0.3bar and the maximum operating pressure differential is 8.6bar.

Pulse Valve Features:

1, specially designed for reverse jet-type dust collector systems

2, high flow cv(s) to 140 for effective bag cleaning

3, high cycle life

4, fast opening/closing

5, high quality parts material to ensure valve cycle life

Pulse Valve Construction:

Solenoid Coil: High quality enamelled wire

Armature Assembly: 430FR and SUS304

Bodies: Aluminum

Diaphragm: NBR

Springs: SUS304

Pulse Valve Technical Specifications:

Fluid Media: clean air

Working Pressure: 0.4--0.6Mpa

Voltage/Current/Temperature Range:

DC24V/0.8A/-25~80℃ (-13~176 ℉)

AC110V/0.46A/-25~150℃ (-13~302 ℉)

AC220V/0.23A/-25~230℃ (-13~446 ℉)

Relative Air Humidity: ≤85%

Standard Coil and Class of Insulation: IP65

Diaphragm Cycle Life: more than 1 million times or more than 3 years

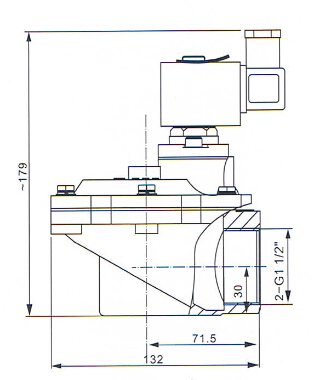

BPA353A047 Overall Dimensions:

Welcome your any question, we will response at once
