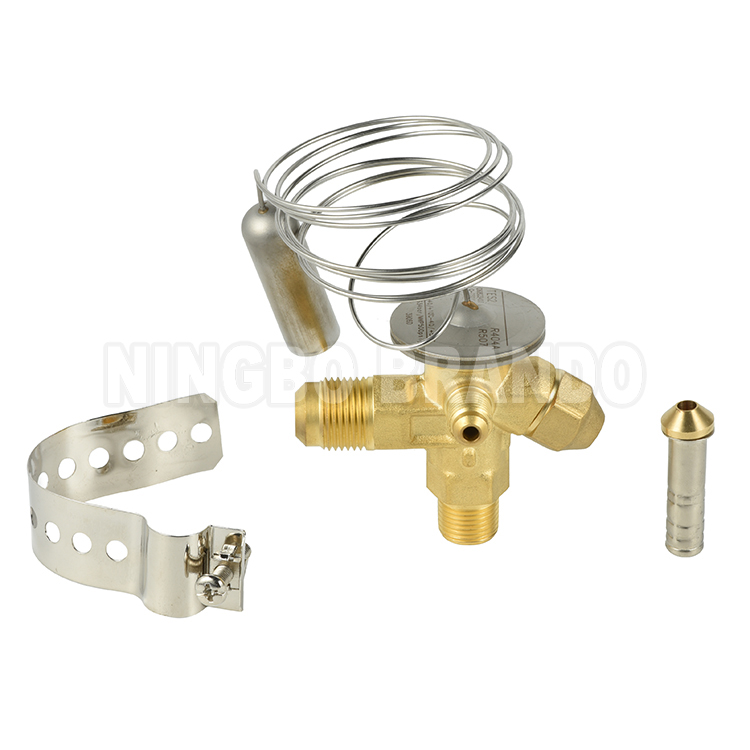

TX2 TZ2 TN2 TS2 TF2 Refrigeration TXV Thermostatic Expansion Valve
2 year ago
TEN 2 R134a Thermostatic Expansion Valve 068Z3385 068Z3386
Thermostatic expansion valves regulate the injection of refrigerant liquid into evaporators. Injection is controlled by the refrigerant superheat. Therefore the valves are especially suitable for liquid injection in "dry" evaporators where the superheat at the evaporator outlet is proportional to the evaporator load.
Technical Data of T2/TE2 Expansion Valve:
|
Model
|
Equalization
|
Connection
Type
|
Capillary Tube
|
Connection
(inlet x outlet)
|
Equalization
Connection
|
|
|
inch
|
mm
|
|||||
|
T2
|
Internal
|
Flare (SAE)
|
1.5m
|
3/8'' x 1/2''
|
10x12
|
1/4'' (6mm)
|
|
TE2
|
External
|
|||||
|
T2
|
Internal
|
Solder (ODF)
|
||||
|
TE2
|
External
|
|||||
Ordering Code of T2/TE2 Expansion Valve:
|
Connection Type
|
Equalization
|
R22
|
R407C
|
R134a
|
R404A/R507
|
R12
|
|
Flare (SAE)
|
Internal
|
TX2
|
TZ2
|
TN2
|
TS2
|
TF2
|
|
External
|
TEX2
|
TEZ2
|
TEN2
|
TES2
|
TEF2
|
|
|
Solder (ODF)
|
Internal
|
TX2
|
TZ2
|
TN2
|
TS2
|
TF2
|
|
External
|
TEX2
|
TEZ2
|
TEN2
|
TES2
|
TEF2
|
Capacity of T2/TE2 Expansion Valve:
|
Orifice no
|
Rated capacity in tons (TR)
|
Rated capacity in kW
|
||||||
|
R22
|
R407C
|
R134a
|
R404A/R507
|
R22
|
R407C
|
R134a
|
R404A/R507
|
|
|
0X
|
0.15
|
0.16
|
0.11
|
0.11
|
0.5
|
0.5
|
0.4
|
0.38
|
|
00
|
0.3
|
0.3
|
0.25
|
0.21
|
1
|
1.1
|
0.9
|
0.7
|
|
01
|
0.7
|
0.8
|
0.5
|
0.6
|
2.5
|
2.7
|
1.8
|
1.6
|
|
02
|
1.0
|
1.1
|
0.8
|
0.6
|
3.5
|
3.8
|
2.6
|
2.1
|
|
03
|
1.5
|
1.6
|
1.3
|
1.2
|
5.2
|
5.6
|
4.6
|
4.2
|
|
04
|
2.3
|
2.5
|
1.9
|
1.7
|
8
|
8.6
|
6.7
|
6
|
|
05
|
3
|
3.2
|
2.5
|
2.2
|
10.5
|
11.3
|
8.6
|
7.7
|
|
06
|
4.5
|
4.9
|
3.0
|
2.6
|
15.5
|
16.7
|
10.5
|
9.1
|

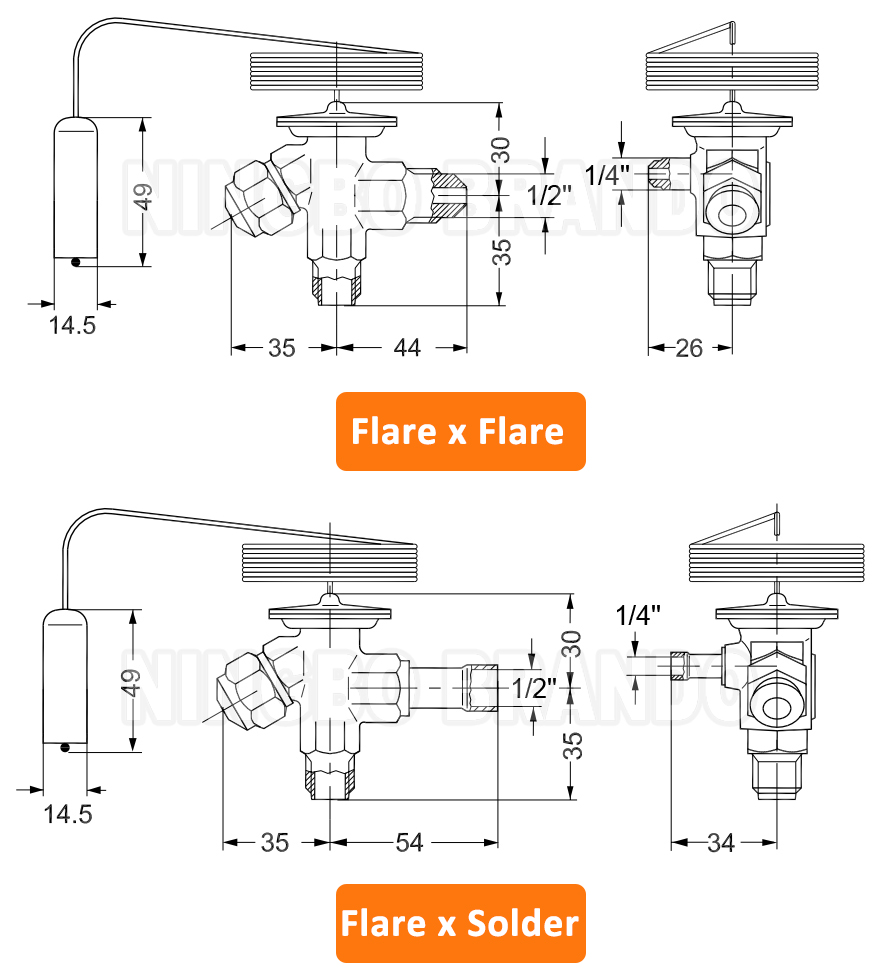

Dimension of T2/TE2 Expansion Valve:

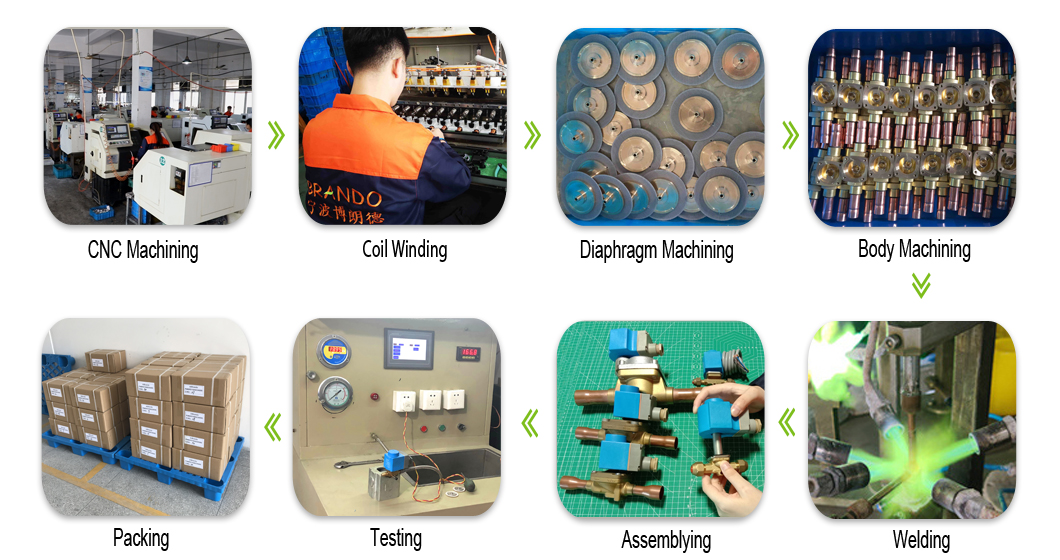

Our Production:
