3P80 Monoblock Control Valves
2 year ago
Customized 3 Spool P80 Hydraulic Directional Control Valve Description:

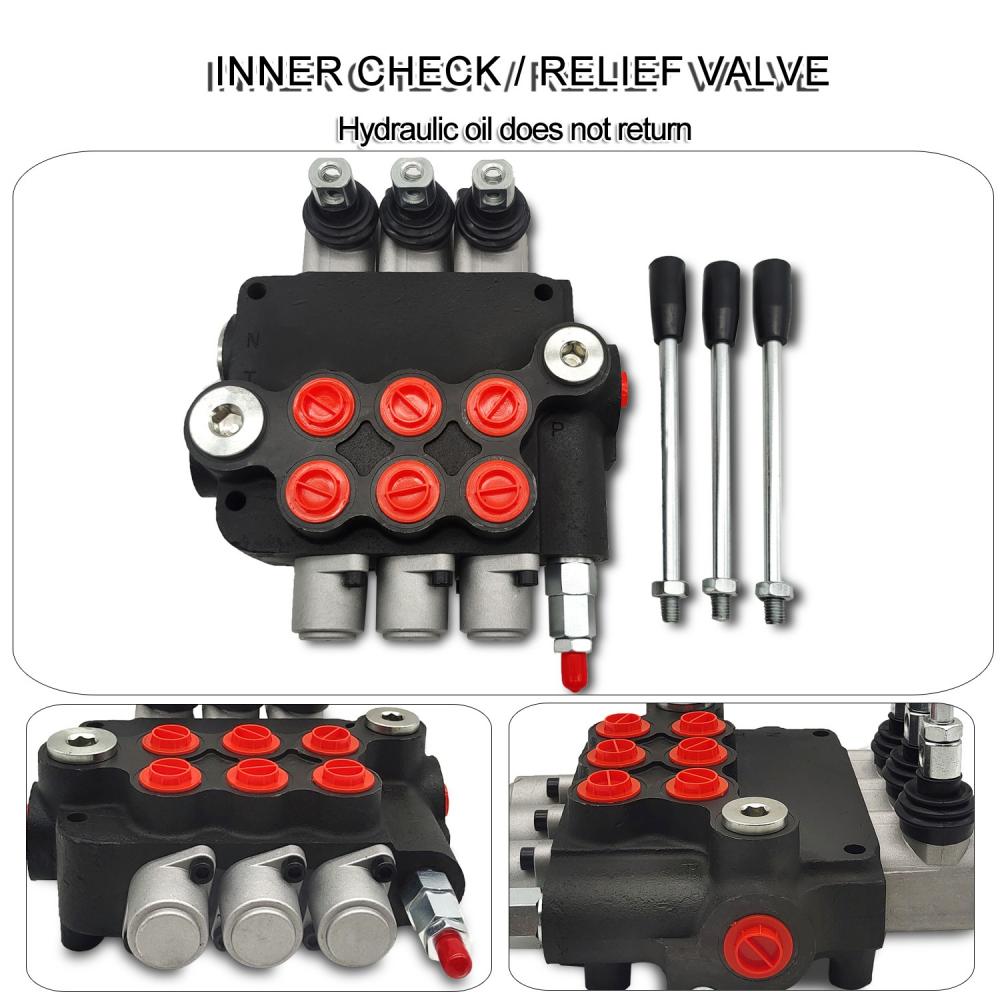

1. Inner check valve: The check valve inside the valve body is to insure the hydraulic oil not to be returned.
2. Inner relief valve: The relief valve inside the valve body is able to adjust the hydraulic system workingpressure.
3. Hydraulic Control Valves Oil way: Parallel circuit, power beyond option

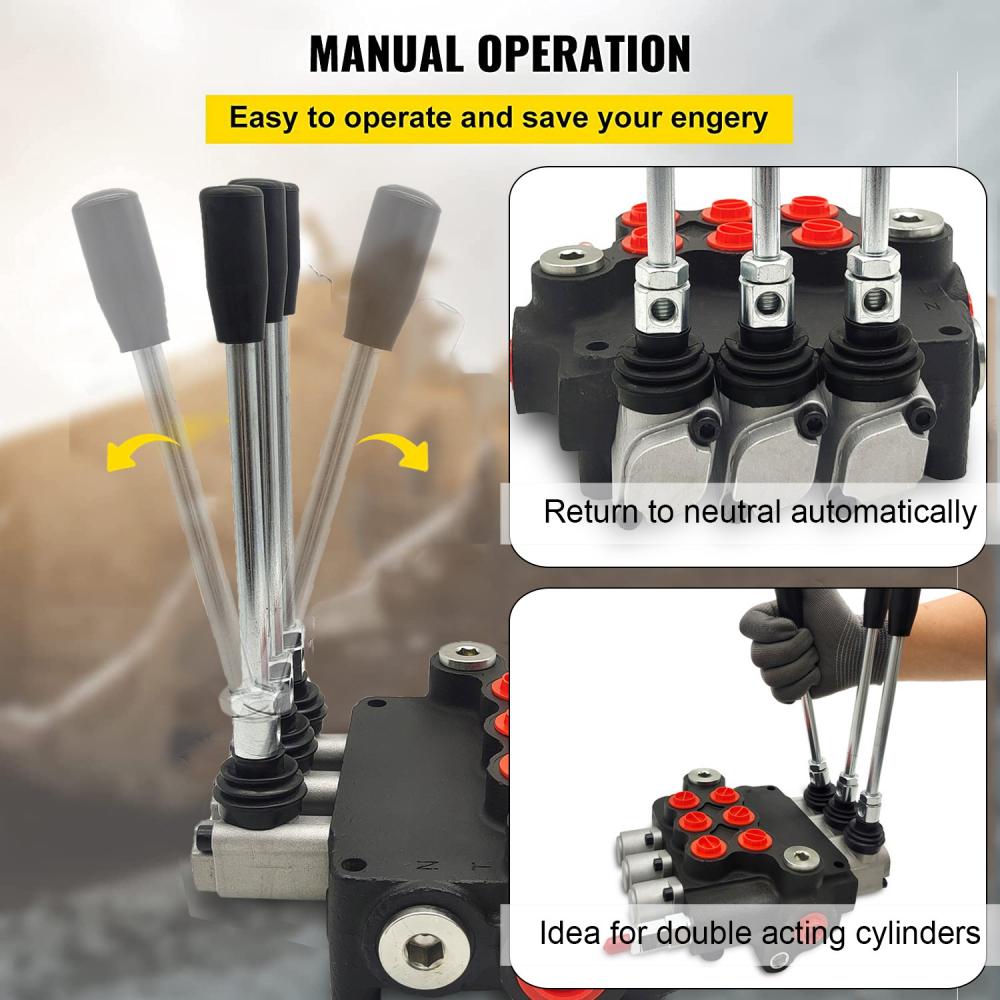

4. Control Way: Manual control, pneumatic control, hydraulic and electric control for optional.
5. Valve construction: monoblock construction, 1-6 levers.
6. P80 Series Monoblock Control Valve Available manual, pneumatic control, electric and pneumatic control, hydraulic and electric control and etc.

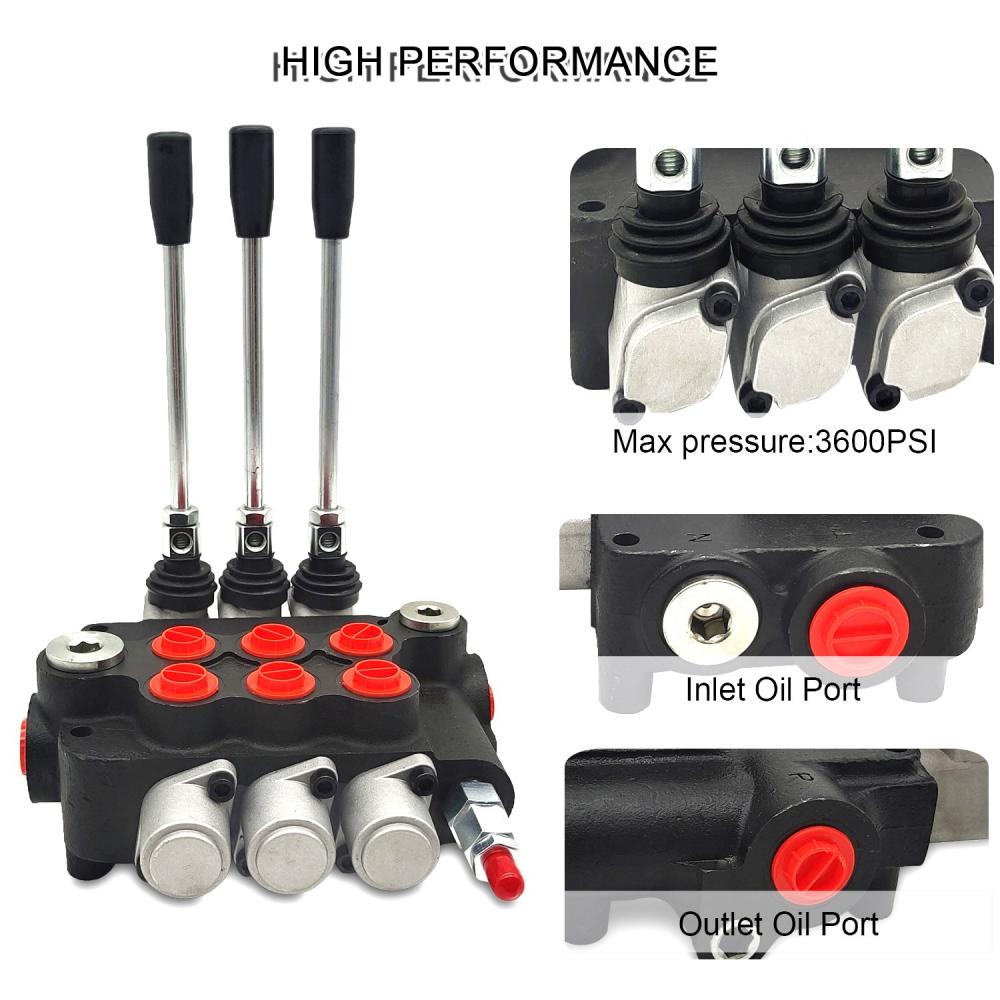

Pump supply (P)/ Return to tank (T)/ Series connection (N): female thread BSP 1/2 "
Output for sections (A, B): Female thread BSP 3/8 "
Spool function
M, P, Y,A etc
Two installation methods

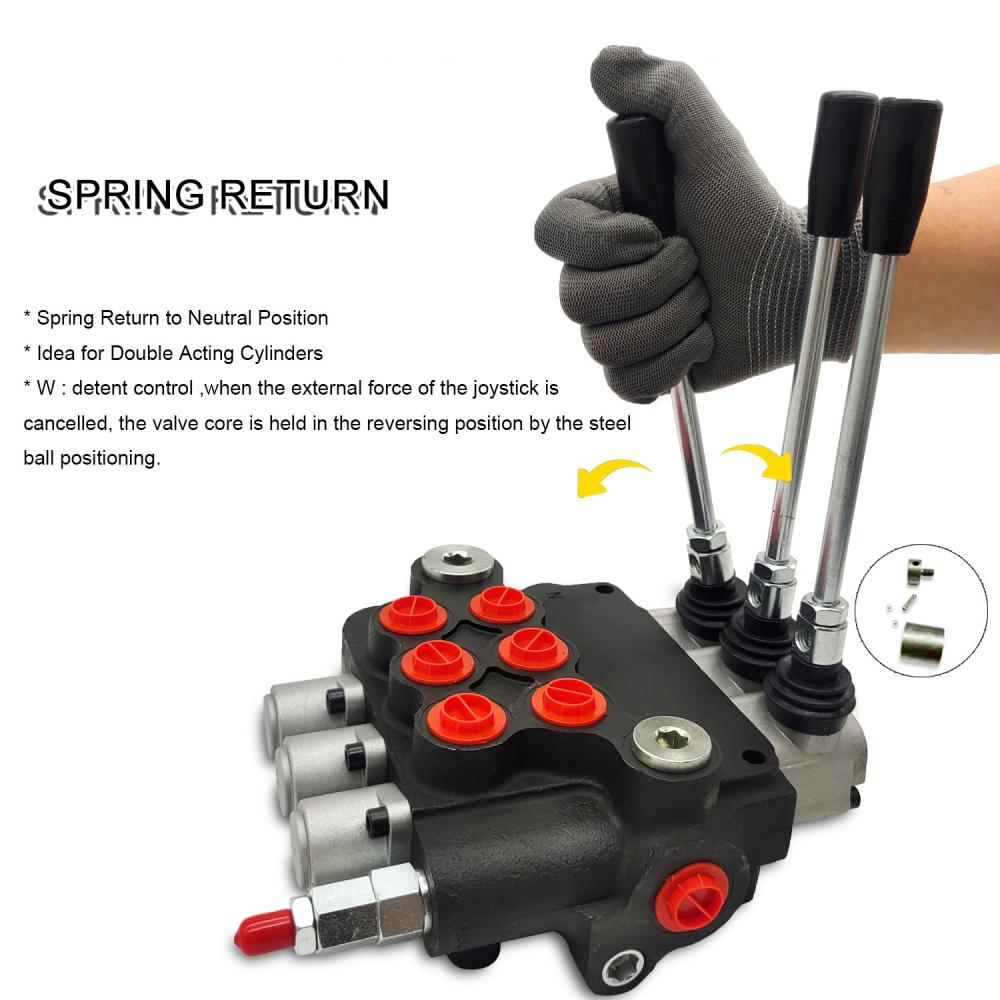

Spring return & detent control
Overflow valve
Adjust the pressure
Nominal flow
80 litres/minute
Maximum working pressure
31.5 MPA
Temperature Range
-40°C to +60°C
Connection
Maximum operating pressure
P=250 bar; T=50 bar; A, B = 300 bar
Benefits
Integrally casted by forging, which has good sealing performance and does not leak oil, long lasting.
Application
forklifts, sanitation vehicles, small loaders, light-duty machinery and other construction machinery.
