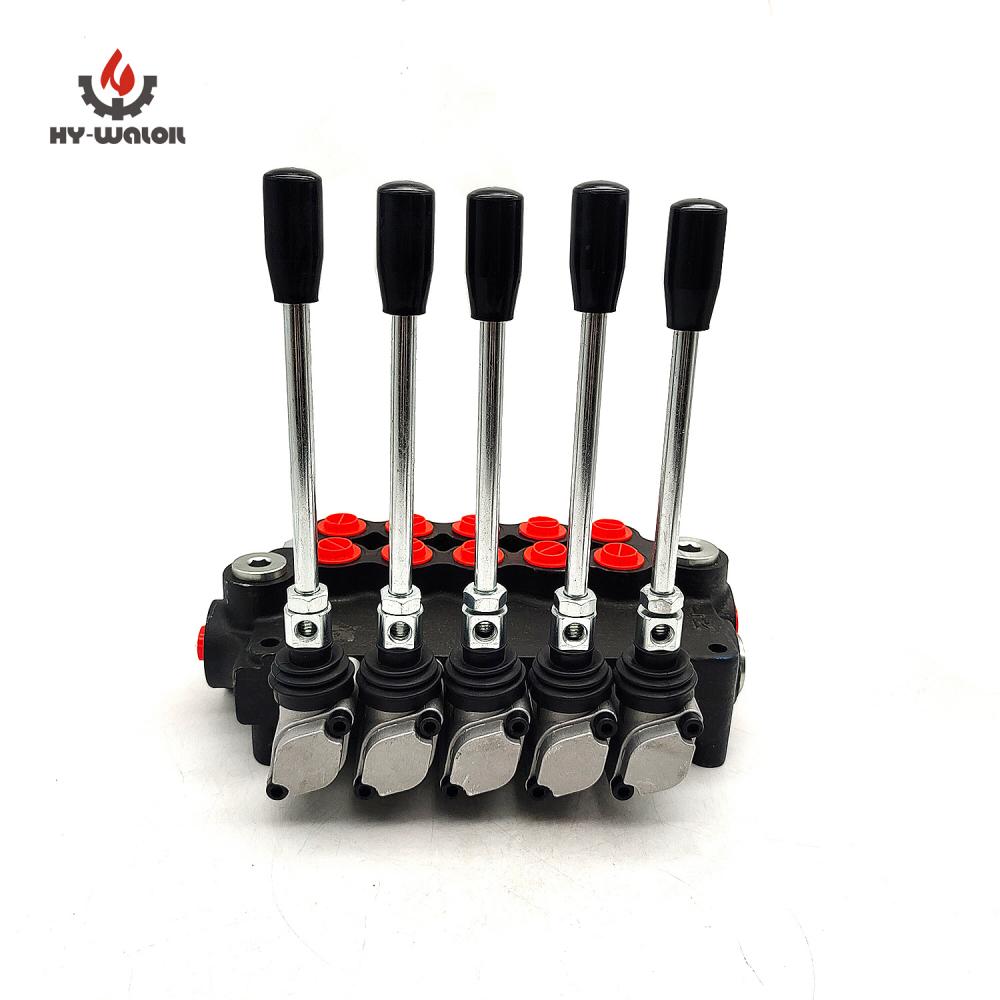

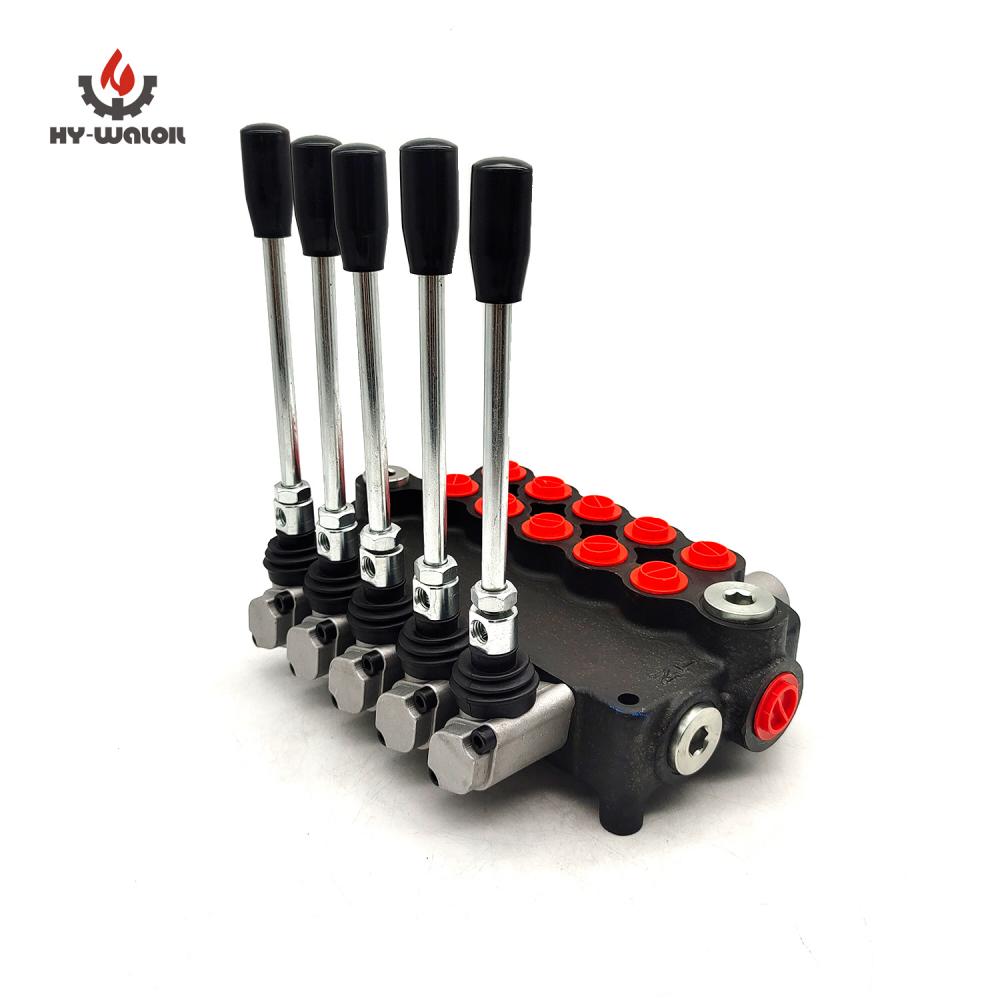

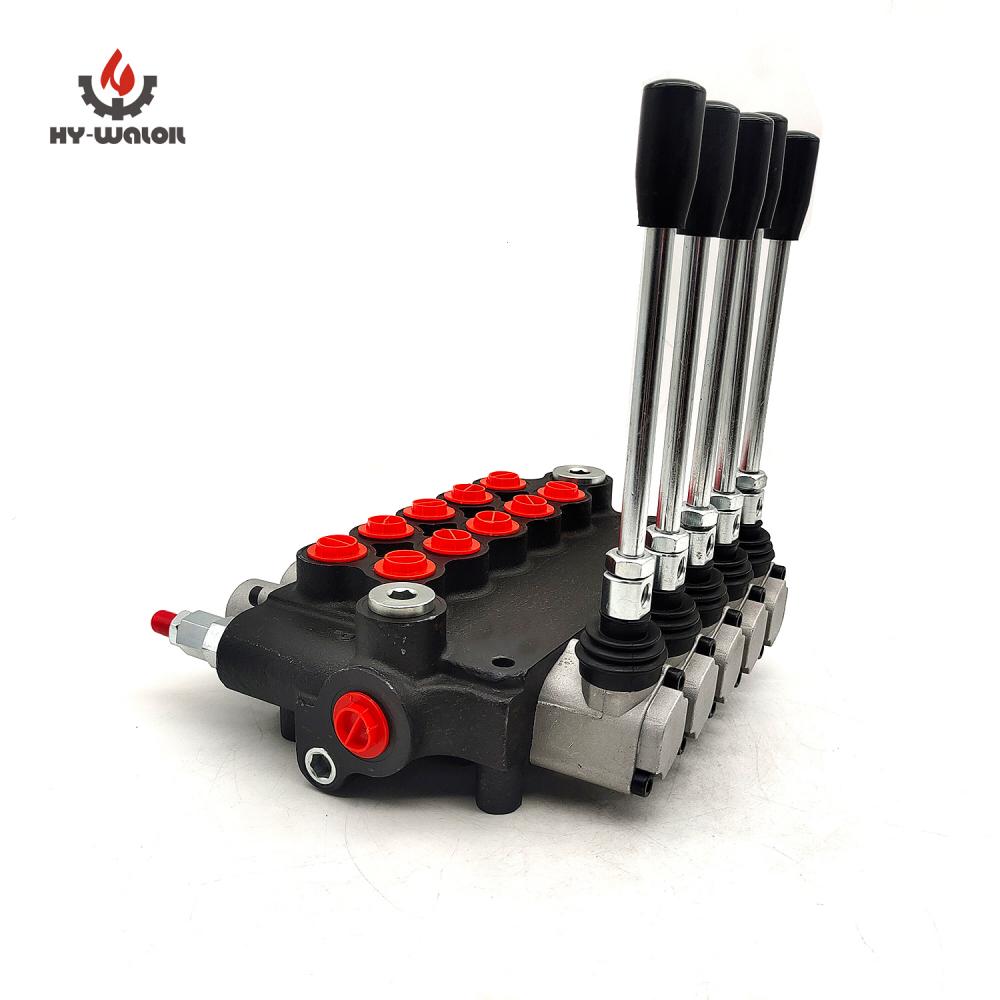

5P80 Flow Operated Pressure Valve
2 year ago
P80 Hydraulic Control Valve for Construction Machinery Description:
4 Spool Hydraulic Control Valves with compact design allows for installations in tight areas
All Control Valves spools lock into forward position detent to allow for float
P80 Series Monoblock Control Valve Used for open center systems (Pump to Tank Flow)
Anti-drop load checks on each spool
Precision ground and hard chrome-plated spools assure a long life
High-tensile strength cast iron monoblock construction
SAE O-Ring ports ensure solid seal and prevent blockages
Capable of closed center or Power Beyond (conversion plug required)
Vertical or horizontal handle mount
Adjustable Relief Valve Range: 1500 to 3625 PSI
Preset Pressure Relief: 2,610 PSI
P80 Series Control Valve Used as motor or single-acting spool possible (#8 SAE port plug required)
Pump supply (P)/ Return to tank (T)/ Series connection (N): female thread BSP 1/2 "
Output for sections (A, B): Female thread BSP 3/8 "
Spool function
M, P, Y,A etc
Two installation methods
Spring return & detent control
Overflow valve
Adjust the pressure
MAX Pressure
3600 PSI
Maximum working pressure
31.5 MPA
Temperature Range
-20 to +80
Connection
Recommended temperature range
40 ° C to + 60 ° C
Benefits
Integrally casted by forging, which has good sealing performance and does not leak oil, long lasting.
Application
forklifts, sanitation vehicles, small loaders, light-duty machinery and other construction machinery.
