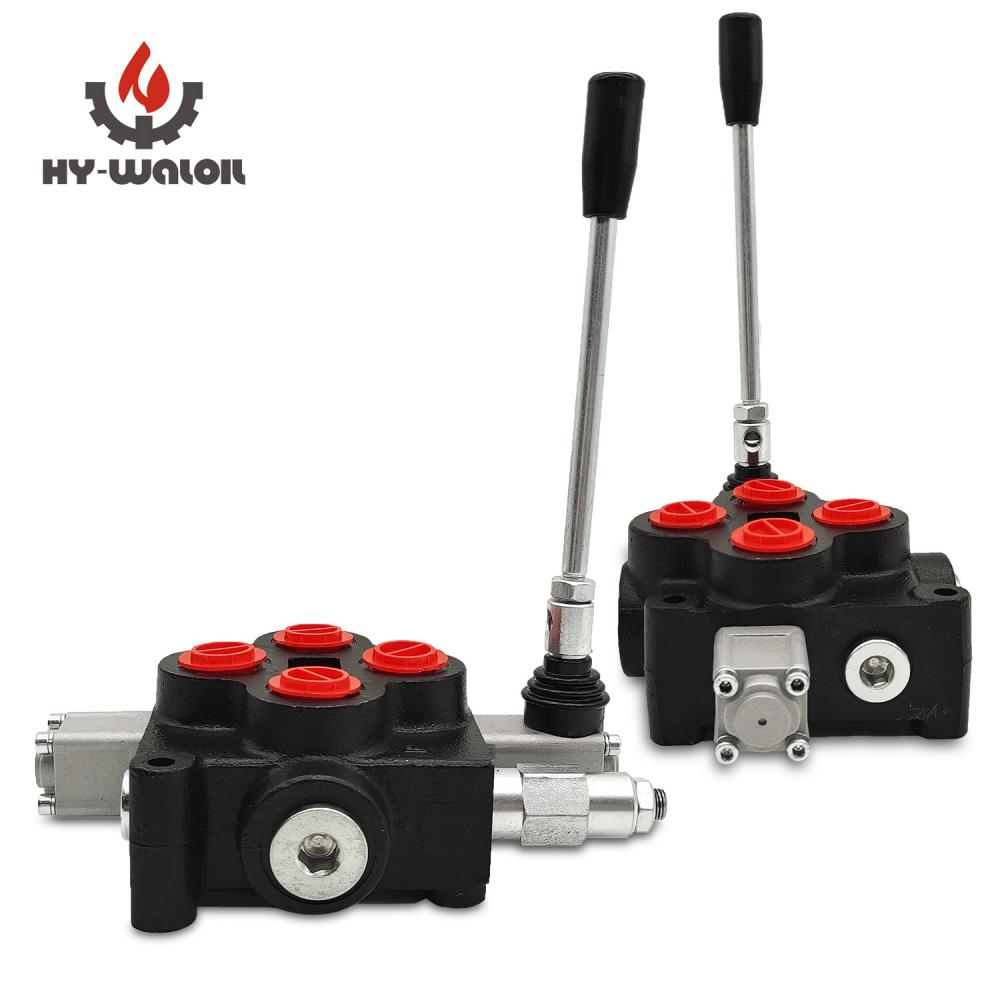

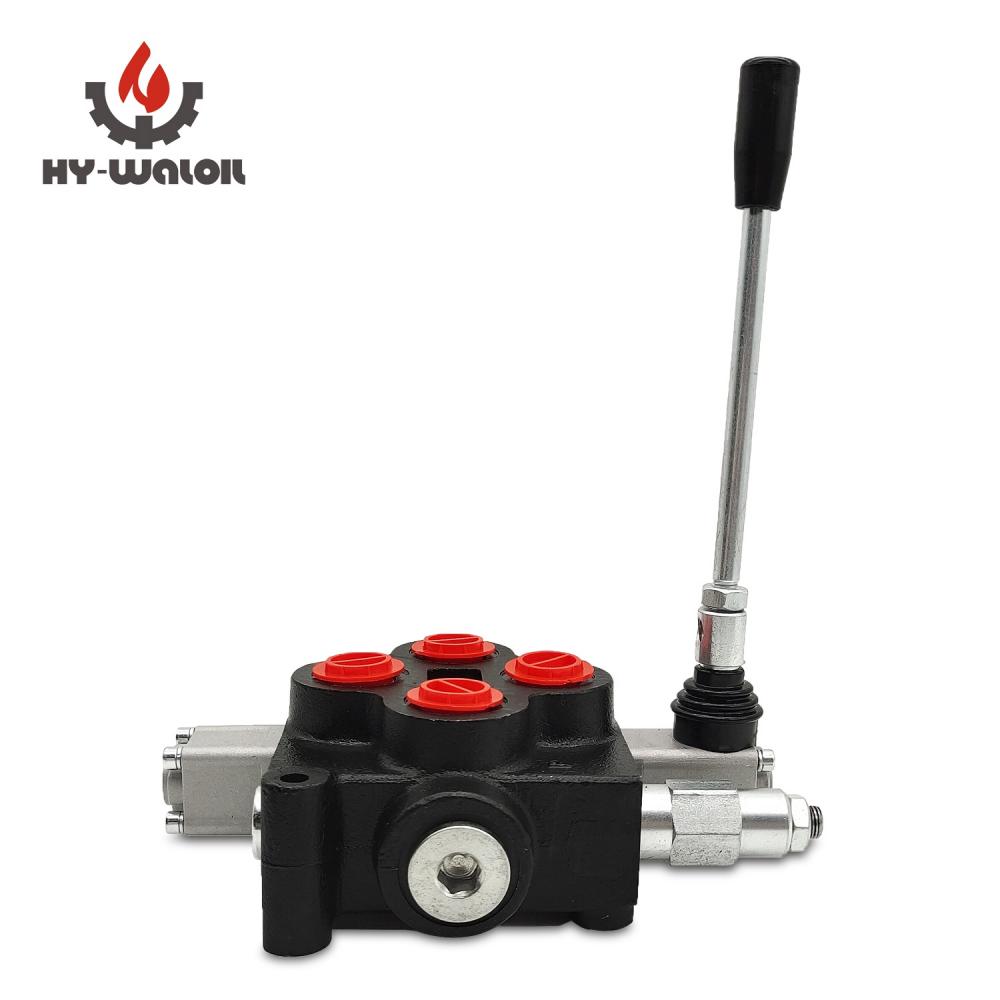

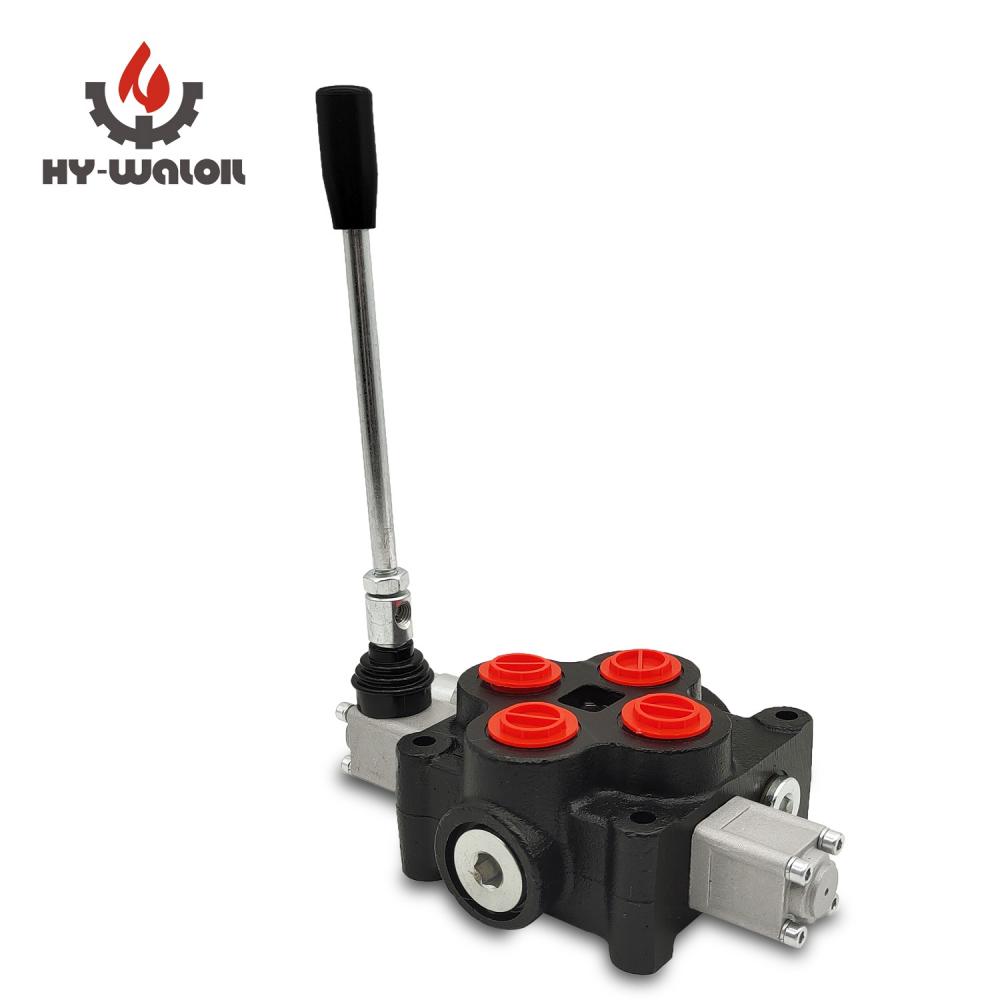

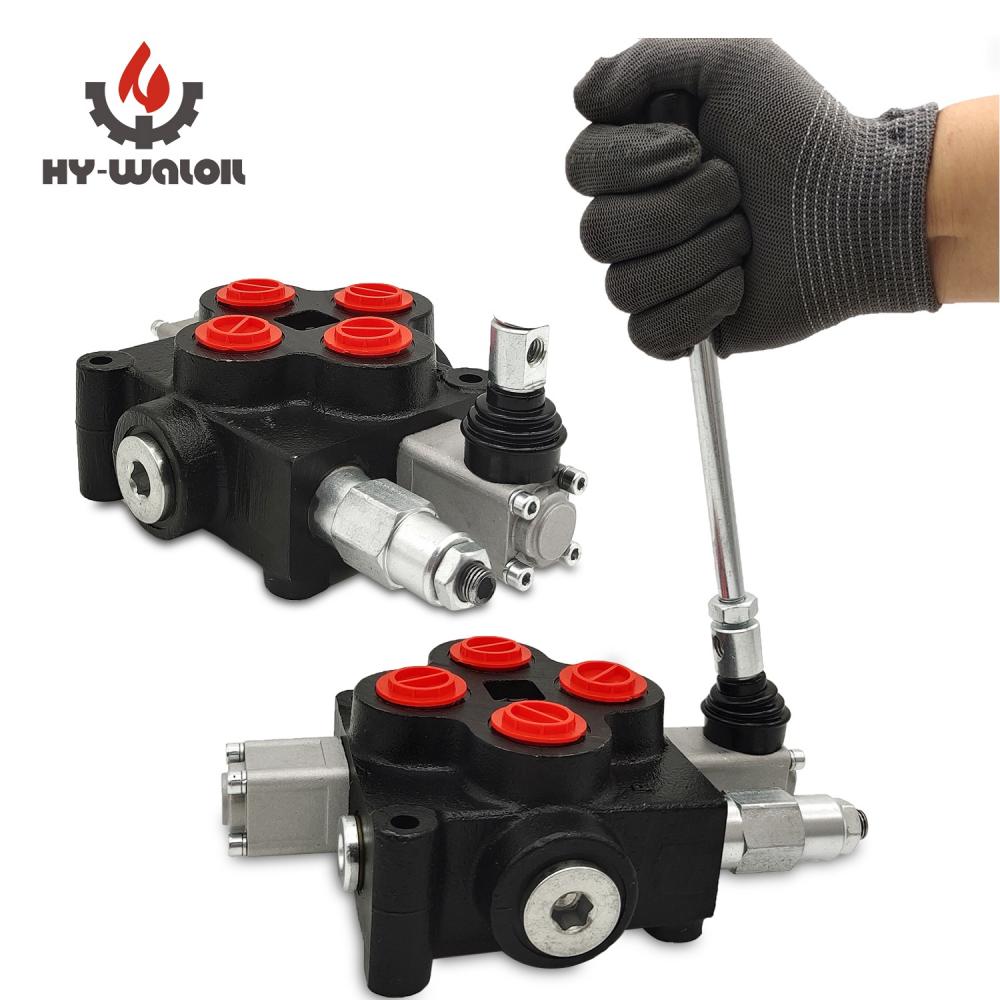

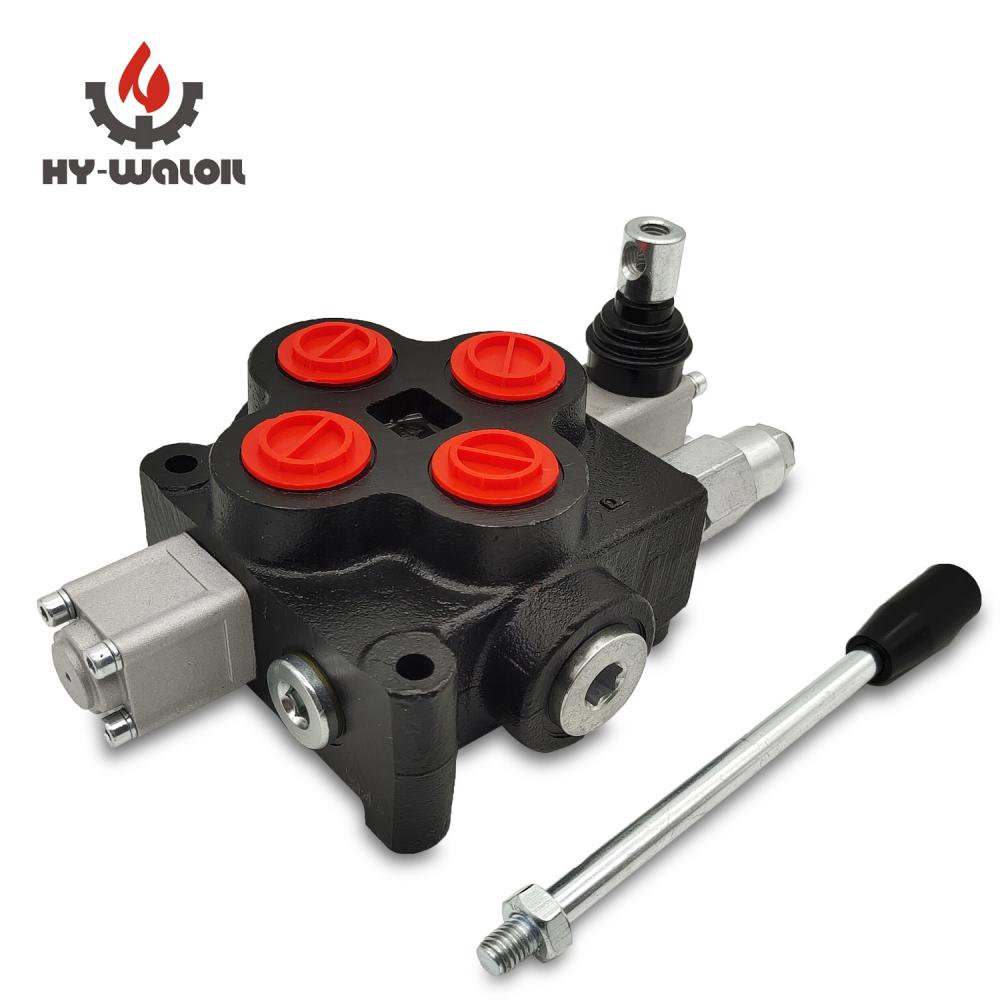

ZT-L20 1 Spool 25GPM Hydraulic Control Valve
2 year ago
Tractor ZT-L20 2 Spool Hydraulic Control Bank Valve Description:

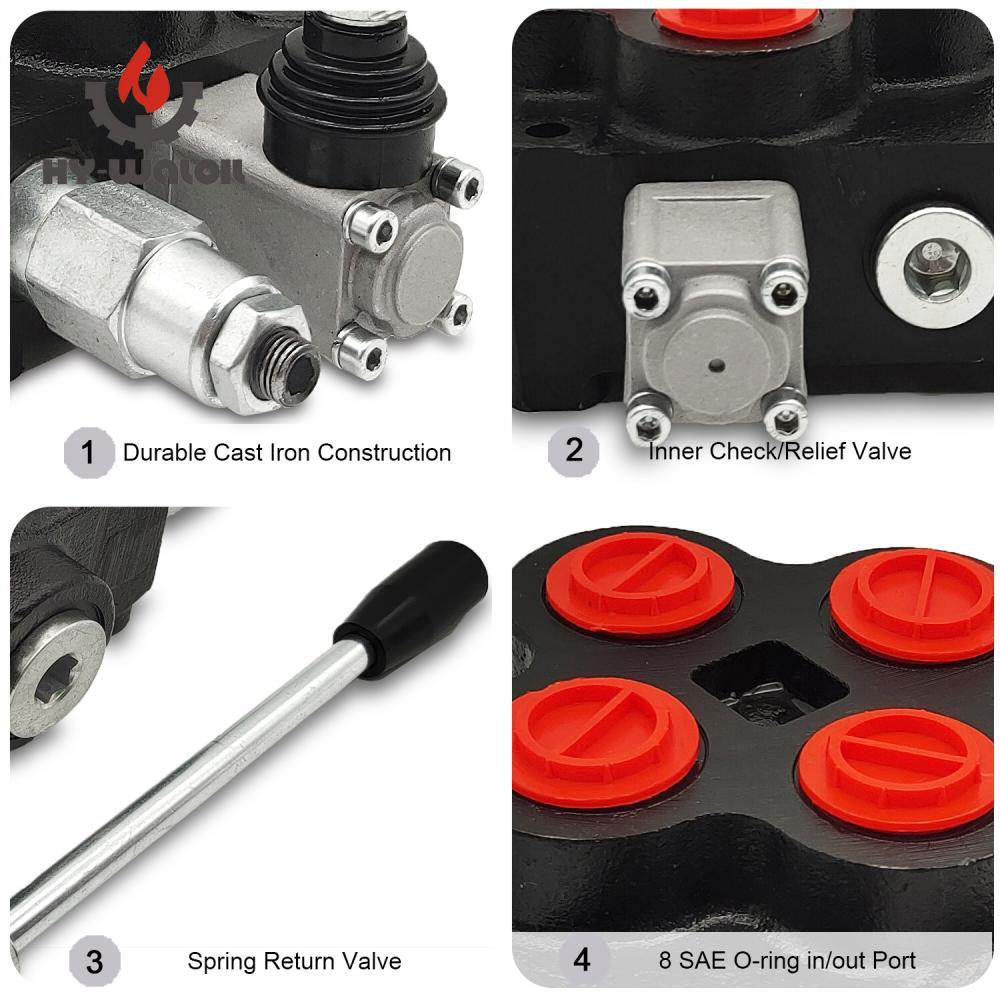

1. Inner check valve: The check valve inside the valve body to insure the hydraulic oil will not be returned.
2. Inner relief valve: The relief valve inside the valve body is able to adjust the hydraulic system working pressure.
3. Hydraulic Pilot Valve Oil way: Parallel circuit, with power beyond.
4. Control Way: electric and pneumatic control, manual control.
5. Valve construction: monoblock construction, 1-5 levers are available to be assembled as you requests.
6. Zt-L20-Ot Directional Valves Spool Function: O,P,A,Y etc.
Mineral based hydraulic oil
Nominal flow rate
80 L/min
Max pressure
P: 315 bar, T: 50 bar, A-B: 300 bar
Spool type
Monoblock types with 1 to 4 working sections
Number of spools
From 1 to 6
Nominal diameter
G1/2; G3/4; G1; M22*1.5; M27*2
Fluid temperature range
-20 ° C to + 80 ° C
Working fluid
Viscosity
10-100 cSt (46 cSt mineral based hydraulic oil is recommended, may vary in different climates)
Benefits
Precise, Perfect, Powerful, Integrally casted by forging, which has good sealing performance and does not leak oil, long lasting.
Application
forklifts, sanitation vehicles, small loaders, light-duty machinery and other construction machinery.
