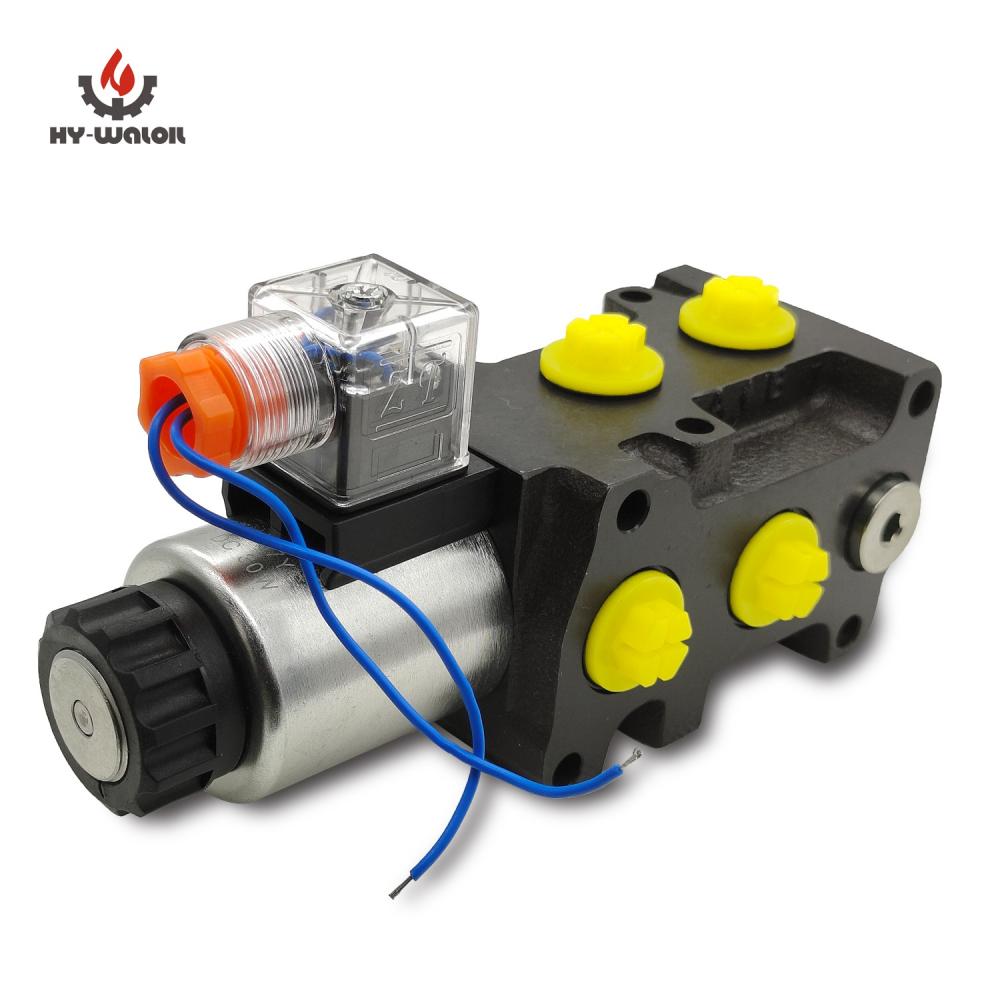

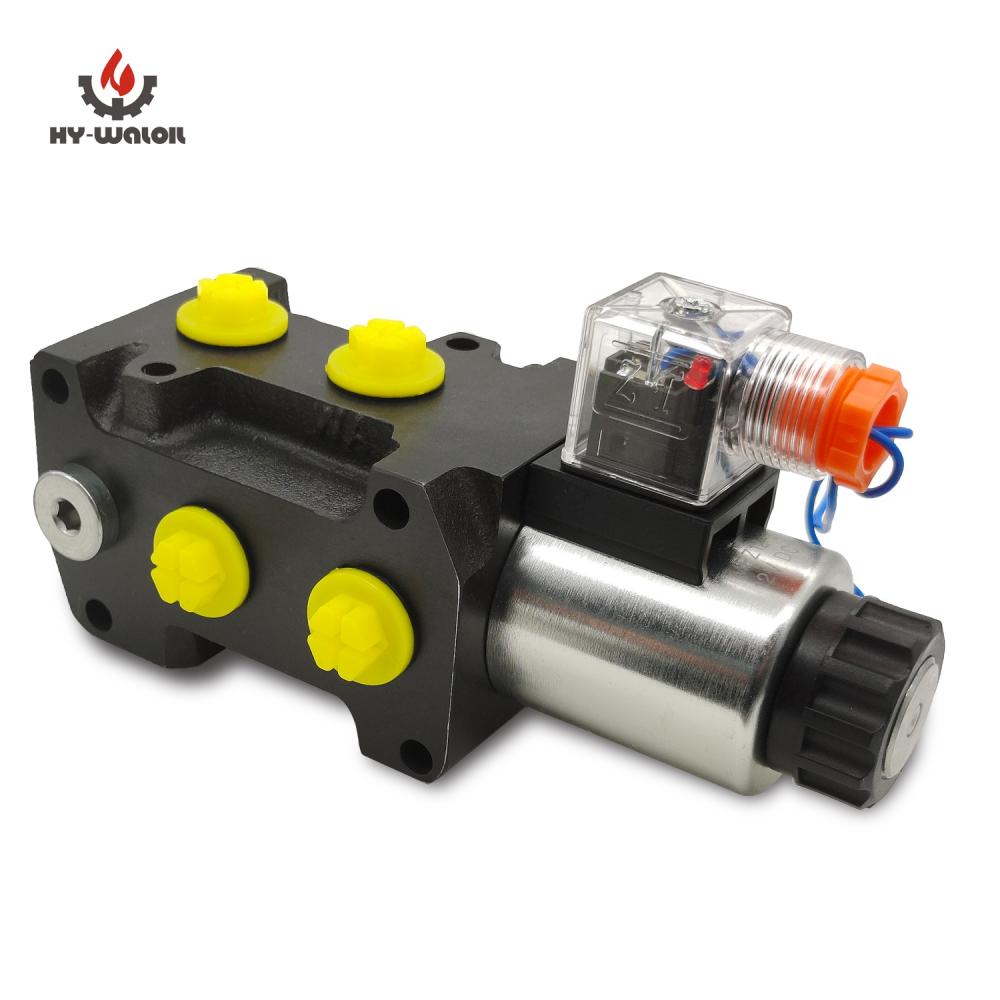

SVV06 6 Port Hydraulic Diverter Valve
2 year ago
Direction Control Valves Description:
* This hydraulic solenoid valve can achieve different flow pressures between oil circuit switches, allowing you to easily add another hydraulic circuit equipment.
* The Solenoid Diverter Valve great thing is that our hydraulic solenoid valves can be connected to multiple reversing valves to send oil into or out of different equipment. It can also be connected to an oil pump to deliver hydraulic oil to two different oil paths
* Product parameter information: Maximum flow: 50LPM, flow level: 13 GPM, nominal pressure: 25MPa (3625 PSI), voltage: DC12V, three plugs, port: 7/8-14UNF.
* Reversing Valve can also be used in conjunction with double-acting or single-acting cylinders, without the need for additional casing drain pipes.
* Practical, 3 valves can be integrated with all threaded rods (not included).
3 kg
Model No
SVV06
Max Flow
P50 LPM
Flow Rating
13 GPM
Nominal Pressure
25 Mpa
Oil Port
7/8-14UNF
Packing Size
23*16*13 cm
Gross weight
Feature
* Does not require an additional case drain line.

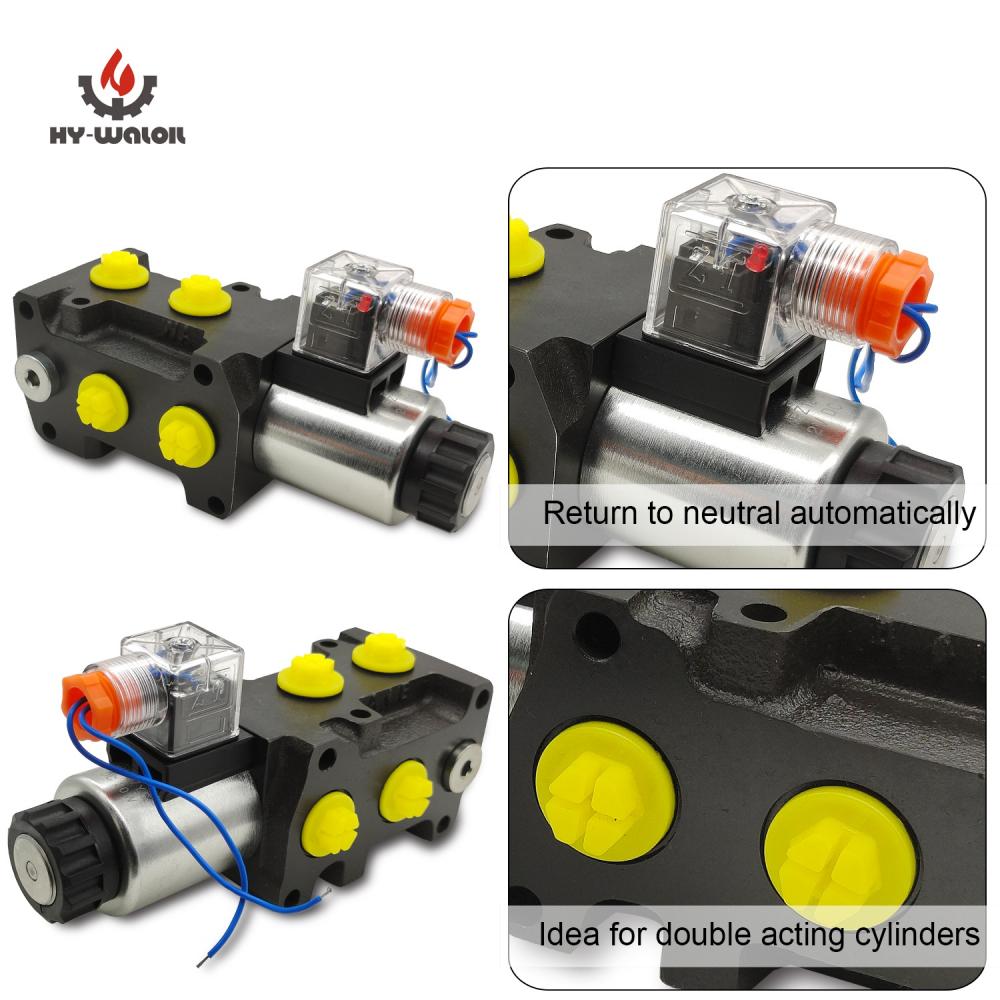

* Works with Double or Single Acting Cylinders.

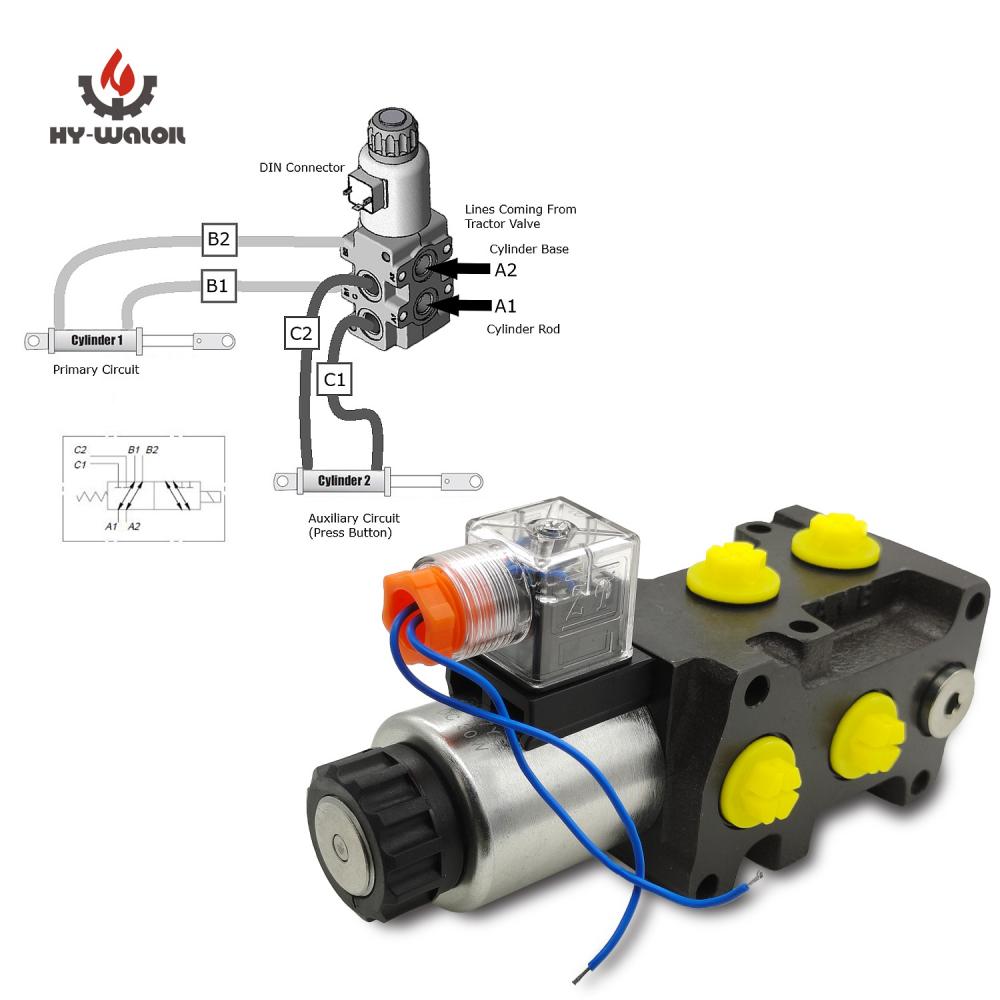

* Allows you to easily add an additional function to your existing hydraulic system without a lot of additional plumbing or electrical components.

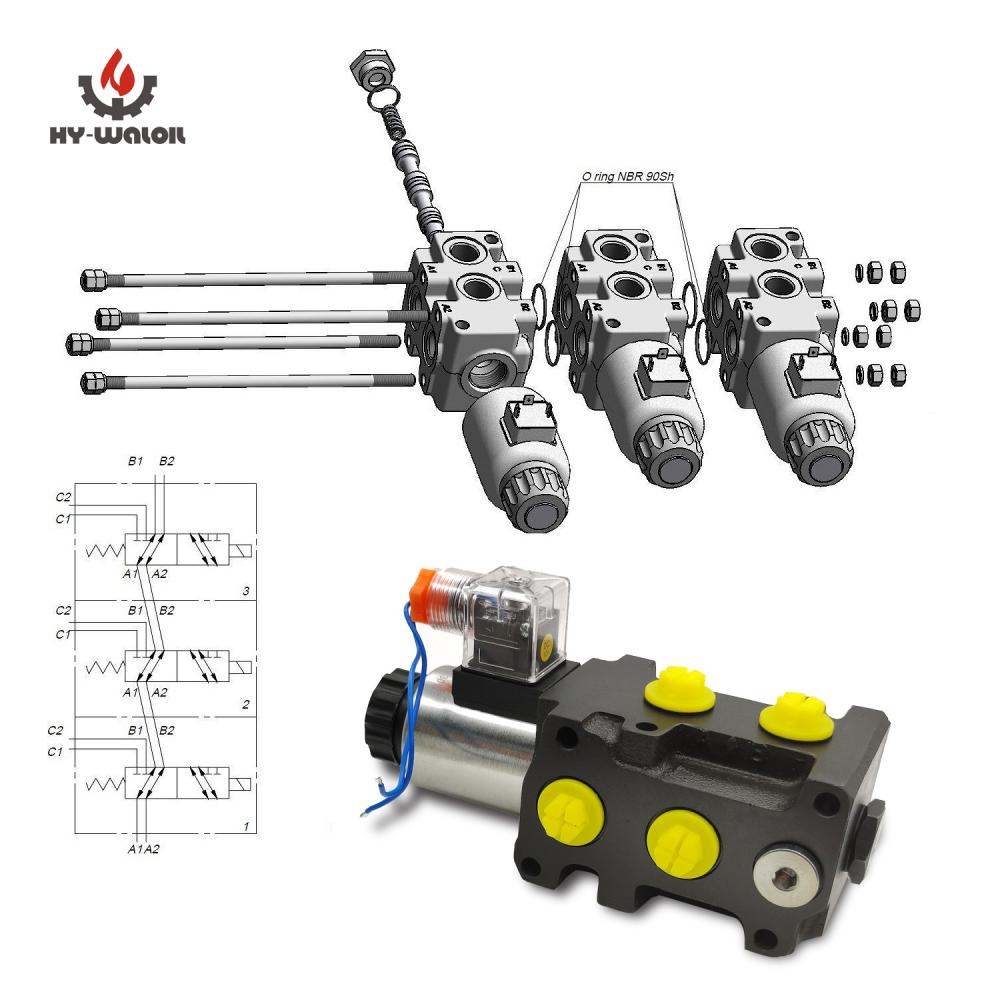

* Up to 3 valves can be manifolded together with all thread rod (not included).
Benifits
Allowing you to easily add another hydraulic circuit equipment
