1Z50 3/8" Solenoid Control Valves
2 year ago

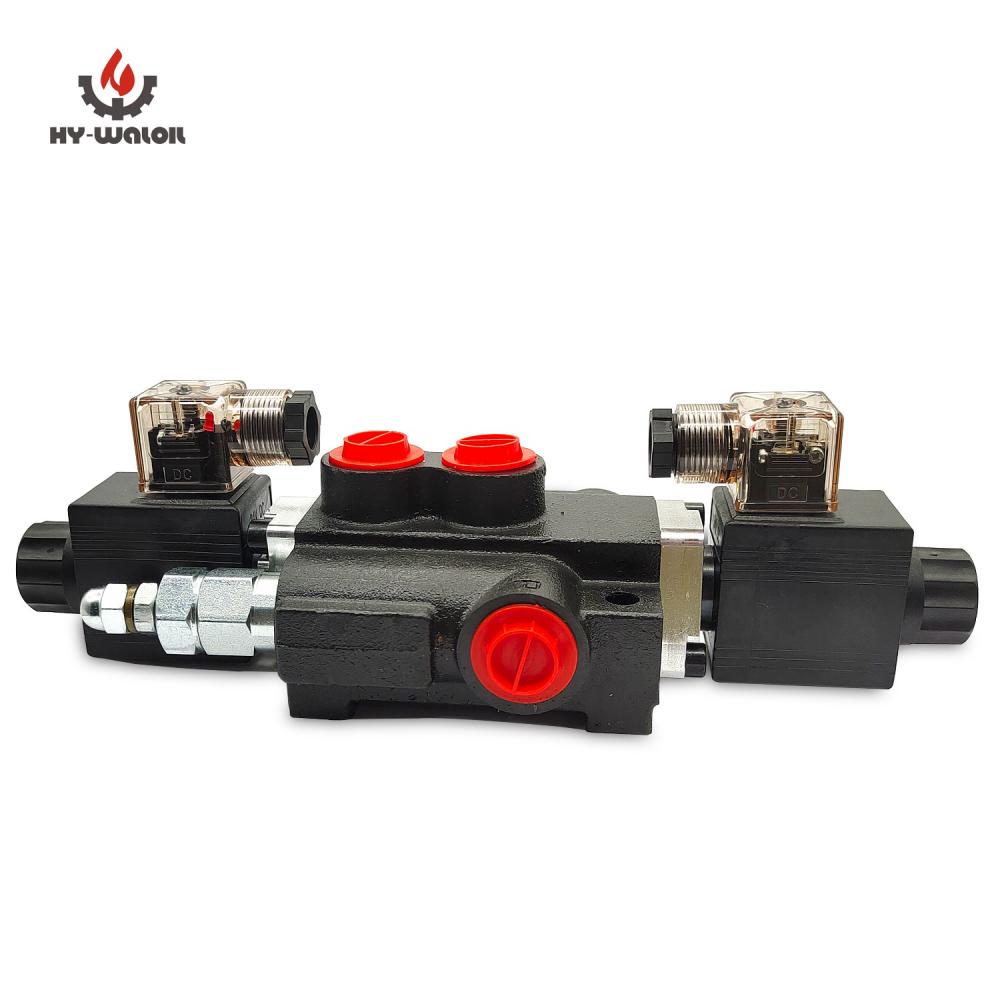

12V DC 1Spool Hydraulic Monoblock Solenoid Control Valve Description:
* Precision ground and hard chrome-plated spools assure a long life
* High-tensile strength cast iron monoblock construction
* SAE O-Ring ports ensure solid seal and prevent blockages
* Hydraulic Solenoid Control Valve Used for open center systems (Pump to Tank Flow)
*Capable of closed center or Power Beyond (conversion plug required)
* Z50 Series Solenoid Valve Adjustable Relief Valve Range: 1500 to 3625 PSI

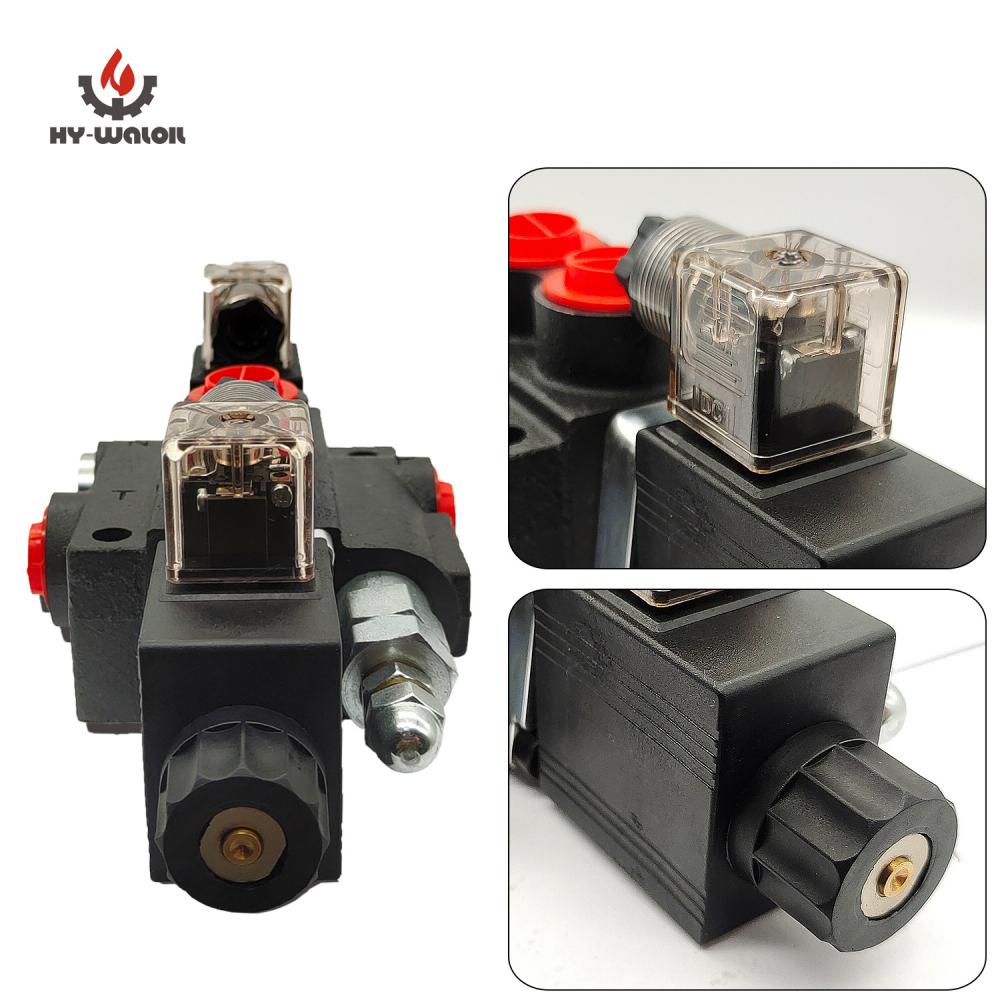

* Manual Override for Solenoid Control Valves.
|
Nominal Voltage |
12 Volt DC Solenoids |
|
Power Rating |
37 Watts |
|
Two Spool Options Available |
Optional1: Controls Double Acting Cylinders Optional 2:Motor Control |
|
Common Uses |
Install rear remotes on a tractor |
|
Application |
Used for open center systems |
|
Feature |
5 ft long extension harness |
|
T port |
Line to tank |
|
N port |
Install power beyond slevee or close center plug |
 |
 |
Feature:
Switch Box with one momentary rocker switch that springs automatically to the neutral position
5 ft long extension harness
Weatherproof enclosure and DIN connectors
Benefits for you:
* Precision ground and hard chrome-plated spools assure a long life
* High-tensile strength cast iron monoblock construction
* SAE O-Ring ports ensure solid seal and prevent blockages
* Used for open center systems (Pump to Tank Flow)
* Capable of closed center or Power Beyond (conversion plug required)
* Adjustable Relief Valve Range: 1500 to 3625 PSI
* Preset Pressure Relief: 2610 PSI
* Manual Override
