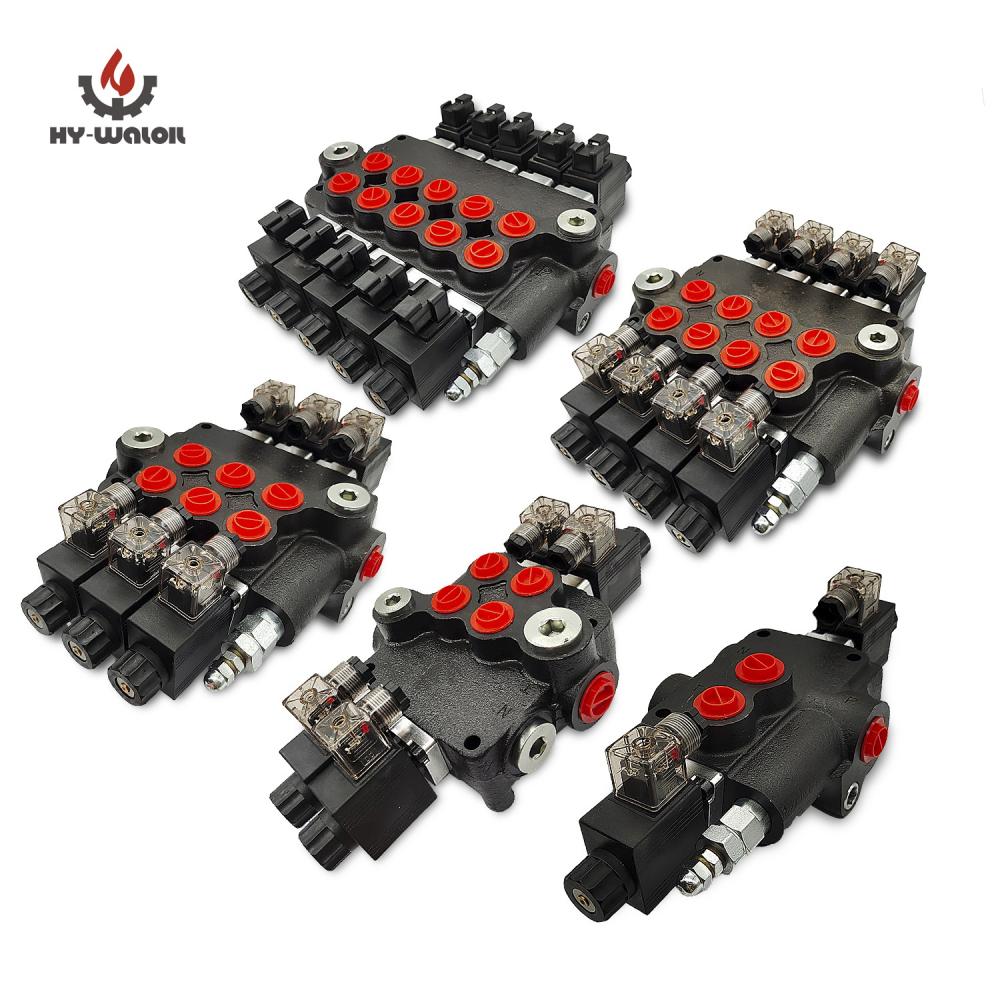

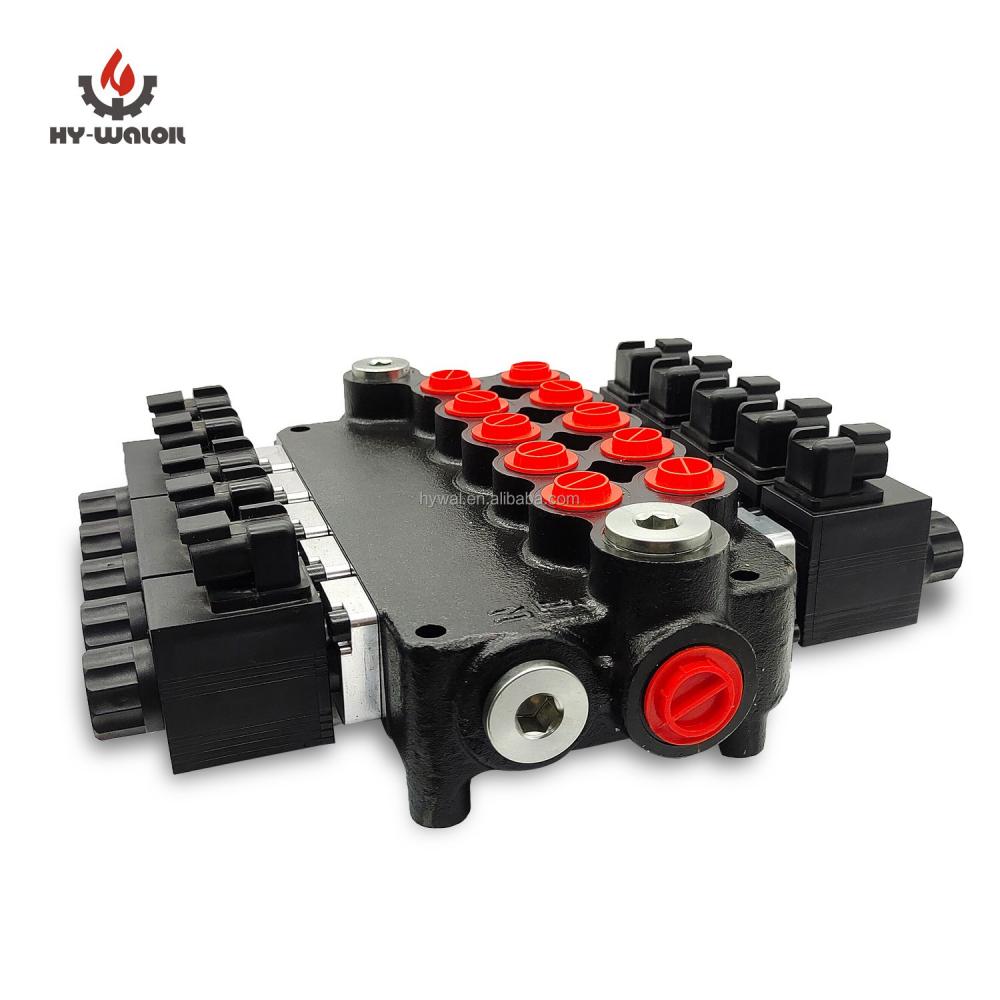

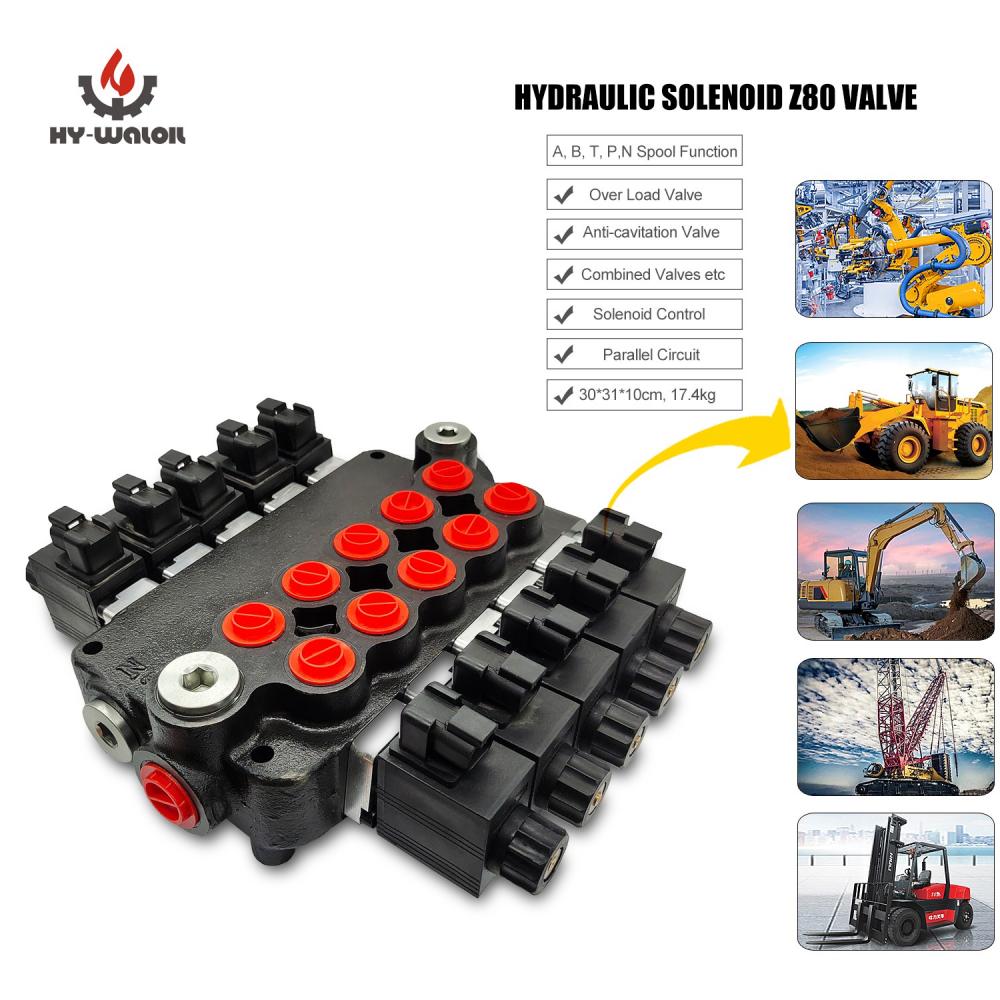

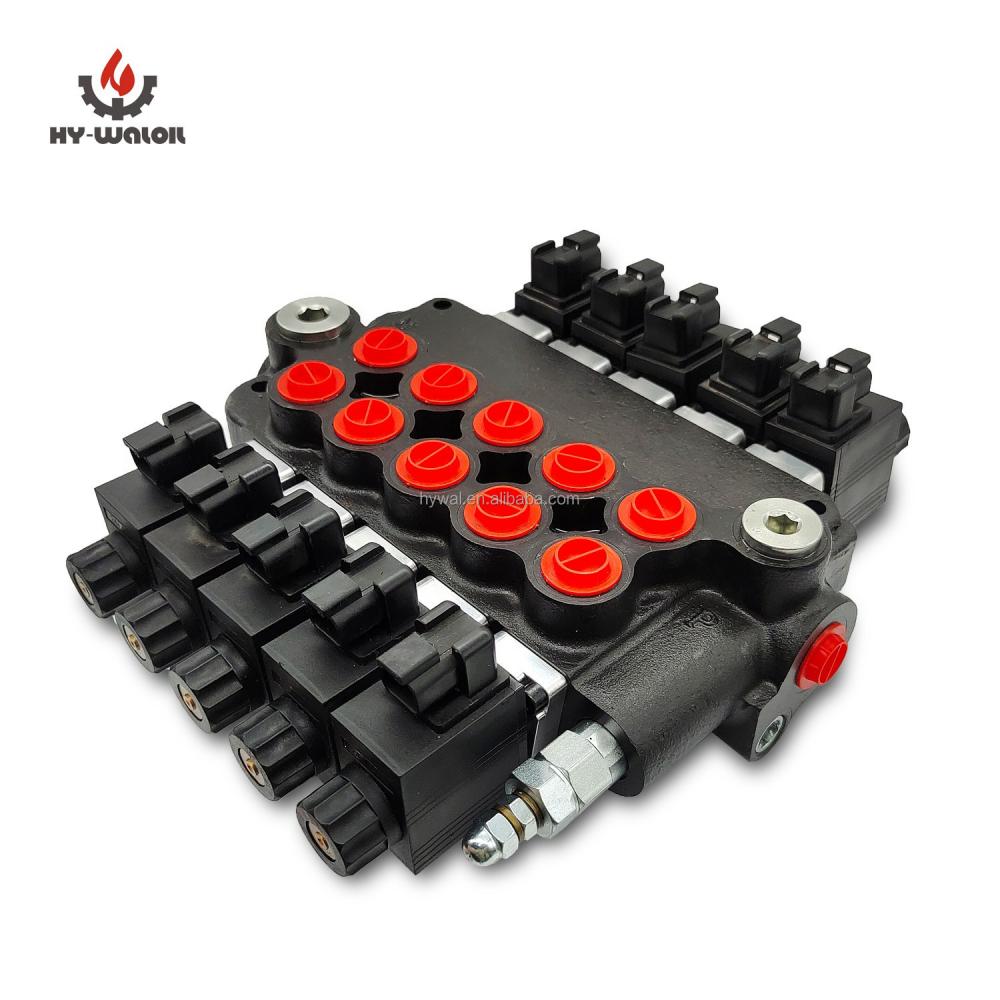

5Z80 24 V Solonoid Control Valve

5Z80 21GPM 12V Solenoid Monoblock Directional Control Valve Description:

* Precision ground and hard chrome-plated spools assure a long life.
* High-tensile strength cast iron monoblock construction.
* SAE O-Ring ports ensure solid seal and prevent blockages.
* Z80 Series Solenoid Control Valve used for open center systems (Pump to Tank Flow).
*5 Spool Solenoid Valve capable of closed center or Power Beyond (conversion plug required).
* Adjustable Relief Valve Range:  1500 to 3625 PSI.
* Manual Override for Solenoid Valve.

Our company are focus on hydraulic motors/steering units/monoblock control valves/gear pumps with high quality prodcuts,competitive price,stable delivery and best after sales service.

We always put clients rights at first,we hope both of us will build long term cooperation.

Valve Features:

Double Acting Valve (Work Ports Closed at Neutral)
Flow Rating: 13 GPM
Max Operating Pressure: 3625 PSI
Adjustable Relief Valve Range: 1500 to 3625 PSI
12 Volt DC Solenoids (24v optional)
A & B Work Ports: #8 SAE O-Ring Thread
Inlet Port: #10 SAE O-Ring Thread
Outlet Port: #10 SAE O-Ring Thread
N Port: #8 (1/2 – 14) G Thread
