DMF-ZM-20 BFEC Dust Collector Pulse Jet Solenoid Valve 24VDC 110VAC 220VAC

3/4'' DMF-ZM-20 SBFEC Type Impulse Diaphragm Valve DC24V

Dust Collector Valve:

A dust collector plays crucial role in various industries such as cement, steel, metal, gas etc. The major part of dust collector system is a dust collector valve that’s why dust collector Valves plays a vital role in any dust collection process, so performance and quality of valves are the major driving factor for all such industries.

A variety of manufacturers make dust collector valve But cost- effectiveness, performance and quality are basic needs in every such product. What makes Brando unique is its exceptional quality, Low cost with fast delivery for guaranteed accessibility along with that continuous specialized support and administration, reliable operation and productive support.

Technical data of ZM Series SBFEC Replacement Diaphragm Valves:

Tips: All related accessories are also sold, like Pulse Controller, Diaphragm, Solenoid Coil and Armature Assembly.

Main dimension of DMF-ZM-20 Pulse Jet Solenoid Valve:

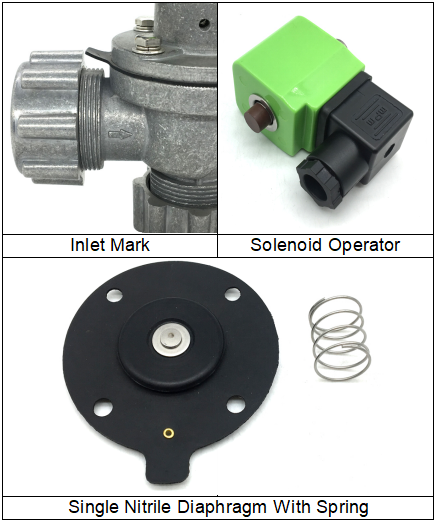

Details display of DMF-ZM-20 Dust Collector Pulse Valve:

Working principle of dust collector solenoid valves:
The two chambers of the dust collector valves are connected together through an air passage (smaller in diameter than the pilot valve orifice when so equipped). When the orifice is opened, the air in the upper chamber is exhausted, at a much faster rate than the speed of which air enters through the air passage, therfore the air pressure in the upper chamber drops significantly. As this occurs, the higher air pressure in the lower chamber pushes the diaphragm up allowing a large volume of air through to the bottom chamber and its outlet connected to the dust collector bags. This sudden burst of air inflates the filter bags or "pops" the filter bags so as to shake loose accumulated material on the outside of each filter bag. When the orifice closes, the pressure in the upper and lower chambers equalize and the diaphragm returns to its original position, aided by the force of a return spring. The dust collector valves are important components to keep dust collector systems operating efficiently and effectively.

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
