DMF-ZM-25 BFEC Dust Collector Pulse Jet Solenoid Valve 24V 110V 220V

DMF-ZM-25 BFEC Quick Mount Pulse Jet Solenoid Valve

Pulse Jet Valve, also called diaphragm valve acts as a "switch" for compressed air in the dust collector system for bag filters. It is controlled by the electric signals from the Pulse Controller. Pulse Jet Valves are used in filtering systems of dust collectors, gas turbines, and desulfurization equipment. Pulse jet valves are commonly used to clean filters such as cartridge filters, envelope filters, ceramic filters, and sintered metal fiber filters.

Different pulse jet valve structure:

* Right Angle Type
* Submerged Type
* Quick Mount Type
* Straight Through Type
* Flanged Type

Technical Data of Dust Collector Diaphragm Valve:

Model No	DMF-ZM-20	DMF-ZM-25	DMF-ZM-40S
Port Size (mm)	27	34	48
Port Size (Inch)	3/4''	1''	1 1/2''
Diaphragm Number	1	1	2
Diaphragm Material	NBR, FKM
Valve Body Material	Aluminum Alloy
Coil Voltage	110VAC, 220VAC, 24VDC
Pressure Range	0.1 to 0.8 MPa

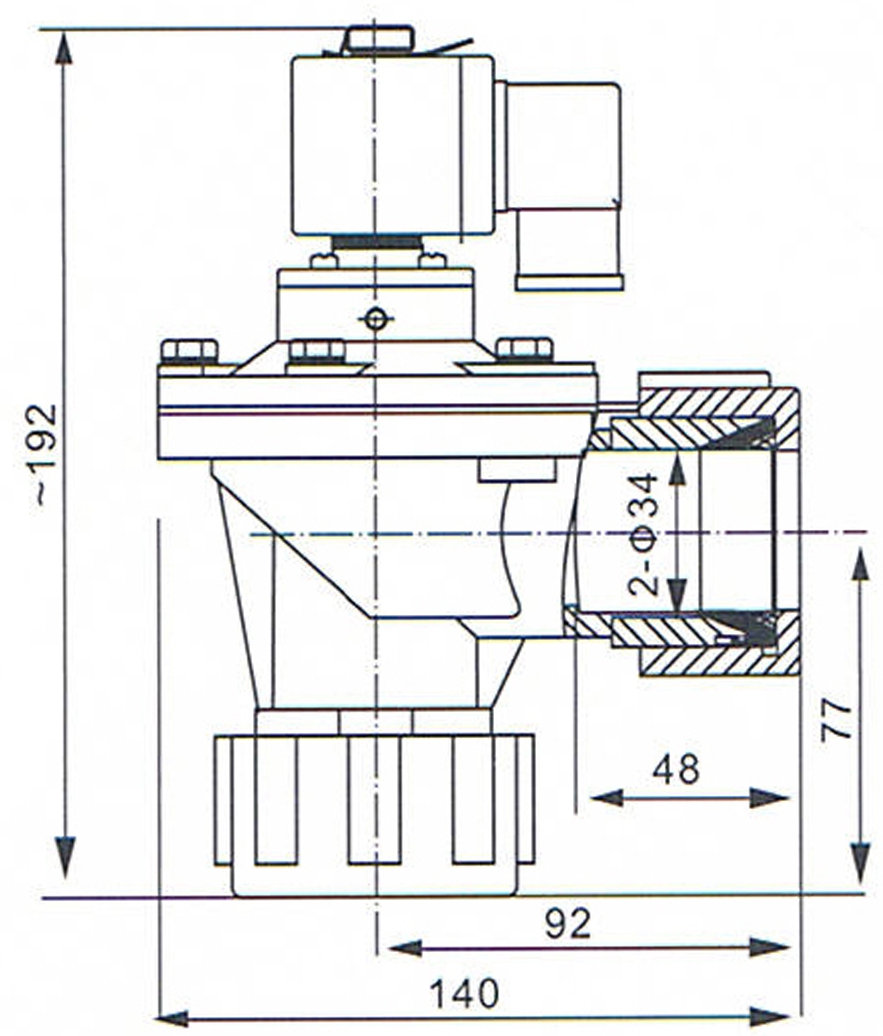

Main Dimension of DMF-ZM-25 Dust Collector Pulse Valve:

More SBFEC Type Pulse Jet Valve for you to choose:

Right Angle Type	Quick Mount Type	Straight Through Type	Submerged Type
Diaphragm	Solenoid Coil	Solenoid Armature	Pulse Controller
