DMF-Y-62S 2 1/2'' Submerged Dust Collector Solenoid Pulse Jet Valve 24V 110V 220V

G2 1/2'' DMF-Y-62S SBFEC Type Embedded Diaphragm Valve

DMF-Y-62S SBFEC type pulse diaphragm valves are used in various dust removal systems to improve the environmental performance of the industry. Such as calcium carbide dust removal, iron alloy factory electric furnace dust removal; steel plant flue gas purification; coal-fired boilers and power plant small boiler dust removal; waste incinerator dust removal; smelter high-temperature flue gas dedusting; aluminum plant flue gas purification; cement plant rotary kiln dust collection; the carbon black plant dust filter.

Technical data of SBFEC Type Full Immersion Diaphragm Valves:

Tips: All related accessories are also sold, like Pulse Controller, Diaphragm, Solenoid Coil and Armature Assembly.

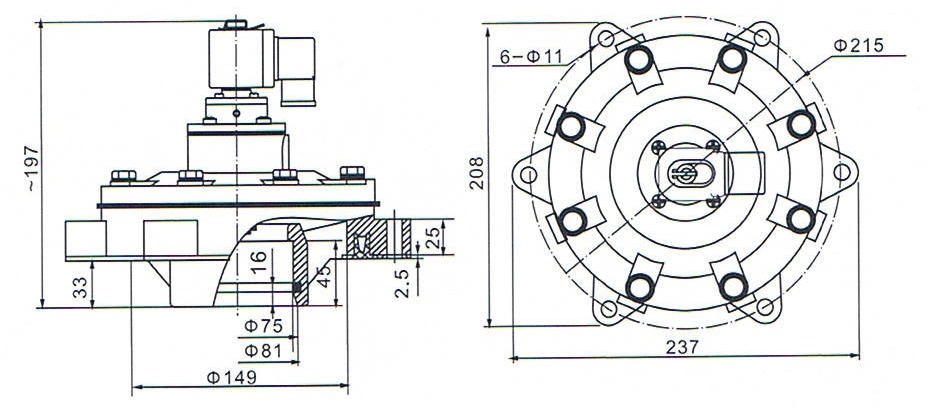

Main dimension of DMF-Y-62S SBFEC Type Embedded Pulse Valve:

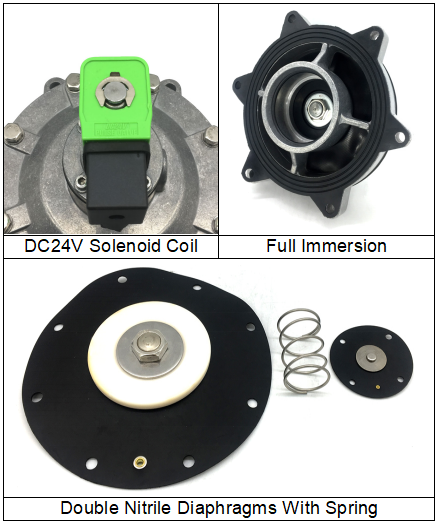

Product details of DMF-Y-62S Manifold Mount Solenoid Valve:

The following are common faults and treatments:
1. The spring is damaged. The spring on the pulse valve spool is easily damaged. The appearance is that the pulse valve is deflated to the blow port for a long time. The treatment method is to replace the spring.

2. The rubber pad is damaged. After the use time is long, the rubber pad on the pulse valve spool is easily damaged. The appearance is that the pulse valve is deflated to the nozzle for a long time. The treatment method is to replace the rubber pad.

3. The valve core dirt, because the intake air is not clean, causing the fouling of the valve core, resulting in the appearance of the long-term intake of the blow port or the pulse valve does not work after the power, the treatment method is to clean the valve core.

4. The diaphragm is damaged, after long-term work, the diaphragm is easy to fatigue, oxidation, etc., the appearance is the long-term deflation of the pressure relief port, the pulse valve does not work, the treatment method is to replace the diaphragm.

5. The orifice is blocked or damaged. The intake air is not clean and the throttle hole is blocked. The appearance is that the pulse valve is deflated to the nozzle for a long time. The treatment method is to clean the orifice; the orifice is damaged or missing, and the orifice is made. Loss of interception, resulting in abnormal pressure relief, the appearance is that the pulse valve has action after the power is turned on, the pressure relief port is deflated, but the pulse valve is not sprayed, the treatment method is a replacement throttle.
