DMF-Y-102S 4'' Submerged Dust Collector Pulse Jet Solenoid Valve 24V 110V 220V
2 year ago
DMF-Y-102S G4'' SBFEC Type Full Immersion Diaphragm Valve
Diaphragm pulse valve is the most important part of the bag jet cleaning system. On pulse bag filters, a pulse valve (also called a diaphragm valve) controls the release of air pulses during the cleaning cycle. When the dust chamber control board or timer board starts a cleaning cycle, it sends an electrical signal to the solenoid and then activates the pulse valve. Inside the pulse valve, the rubber diaphragm opens and closes to release the compressed air stored in the air header. Air then passes through the valve into the blowpipe above the filter and then down into the filter to clean it.
Compared to the potential savings, the cost of a pulse valve is negligible. In general, replacing worn diaphragms in system pulse valves will result in a 10% or longer filter life and a 15% or more reduction in compressed air use! In addition, when the condition of the pulse valve is not good, the filter is not clean enough. This results in higher pressure differentials, which can lead to a loss of suction for the entire system, higher fan tension (meaning higher electricity bills), and other delays and production losses caused by poorly performing dust collection systems.
Technical parameters of SBFEC Type Full Immersion Diaphragm Valves:
Diaphragm size
(φ66 smaller)
Model
DMF-Y-25
DMF-Y-40S
DMF-Y-50S
DMF-Y-62S
DMF-Y-76S
DMF-Y-102S
φ96
φ112
φ160
φ188
φ202
φ255
KV/CV value
26.16/30.53
45.82/53.47
61.24/71.47
129.26/150.85
159.95/186.66
268.29/313.09
Blowing area (㎡)
8-10
12-16
18-28
27-38
37-65
70-90
Port size
G1''
G1 1/2''
G2''
G2 1/2''
G3''
G4''
Weighgts (kg)
0.75
1.2
2.35
3.2
4.05
5.65
Working pressure
0.1MPa-0.8MPa
Environment temperature
-25℃-80℃
Relative humidity
≤85%
Working medium
Compressed air
Protection class
IP 65
Service life
Over 1000,000 times
Voltages
DC24V, AC110V, AC220V
Tips: All related accessories are also sold, like Pulse Controller, Diaphragm, Solenoid Coil and Armature Assembly.

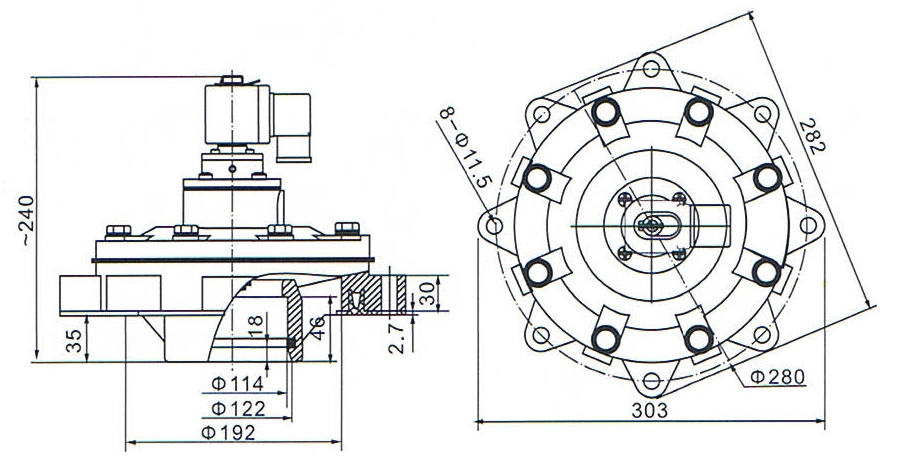

Main dimension of 4 Inch DMF-Y-102S SBFEC Type Pulse Jet Valve:

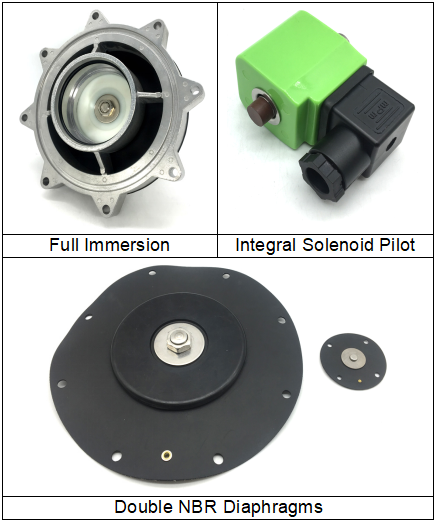

Details display of DMF-Y-102S SBFEC Type Solenoid Pulse Valve:
Construction:
1. Body: Diecast Aluminium
2. Ferrule: 304 SS
3. Armature: 430FR SS
4. Seals: Nitrile or Viton (reinforced)
5. Spring: 304 SS
6. Screws: 302 SS
7. Outlet Slide Seals: EPDM or Viton
8. Diaphragm Seat: PA-6 (standard), Viton coated mild steel
Features:
1. Range of sizes and configurations for flexibility in system specification.
2. Engineered and tested for optimal performance and durability.
3. Reduced number of valve fittings necessary.
4. Solenoid coils available in standard AC and DC voltages.
5. Complies with current regulations.
6. Spare parts kits readily available.
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
