Product details


Innolux Corporation (hereafter called Innolux) G057VGE-T01 is a 5.7 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of -30 ~ 85°C , a storage temperature range of -30 ~ 85°C . This Innolux TFT-LCD is a 5.7 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. G057VGE-T01 supports display 640(RGB)×480 (VGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 115.2(W)×86.4(H) mm, outline size of 144(W)×104.6(H)×12.8(D) mm, viewing area size of 118.2(W)×89.4(H) mm, with surface treament of Antiglare (Haze 25%), net weight of 155/170g (Typ./Max.). As a TN, Normally White, Transmissive LCM product, G057VGE-T01 can provides 450 cd/m² display brightness 800:1 transimissive contrast ratio, 80/80/70/70 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 15/35 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 54% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, With LED Driver. G057VGE-T01 utilizes TTL (1 ch, 6-bit) as it's signal inputting systerm, which connected by 33 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.


We are able to offer AD board for this display to support VGA video input


Panel Model

G057VGE-T01

Panel Brand

Innolux

Panel Size

5.7"

Resolution

640(RGB)×480 , VGA

Display Area

115.2(W)×86.4(H) mm

Outline Size

144(W)×104.6(H) ×12.8(D) mm

Brightness

450 cd/m² (Typ.)

Viewing Angle

80/80/70/70 (Typ.)(CR≥10)

Best View on

6 o'clock

Display Colors

262K   54% NTSC

Frequency

60Hz

Weight

155/170g (Typ./Max.)

Panel Type

a-Si TFT-LCD , LCM

Pixel Format

RGB Vertical Stripe

Bezel Opening

118.2(W)×89.4(H) mm

Surface

Antiglare (Haze 25%)

Contrast Ratio

800:1 (Typ.) (TM)

Display Mode

TN, Normally White, Transmissive

Response Time

15/35 (Typ.)(Tr/Td)

Lamp Type

WLED , 50K hours , With LED Driver

Touch Screen

Without

Signal Interface

TTL (1 ch, 6-bit) , 33 pins Connector

Input Voltage

3.3V (Typ.)

Environment

Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -30 ~ 85 °C

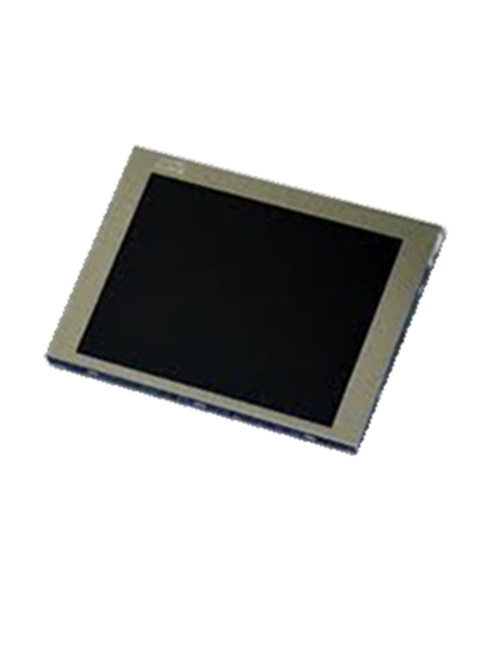

Product Picture:

G057VGE-T01
