AU Optronics Corp. (hereafter called AUO) G070VAN01.0 is a 7.0 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, without touch screen. This AUO TFT-LCD is a 7.0 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. Based on datasheet with version of Ver0.1 which was released out on 12 10 2018, G070VAN01.0 supports display 800×480(RGB) (WVGA) with aspect ratio of 15:9 (W:H), whose pixels are arranged in RGB Horizontal Stripe. As for mechanical detail, it features active area of 152.4(W)×91.44(H) mm, outline size of 166.6(W)×107(H)×10(D) mm, viewing area size of 154.2(W)×93.24(H) mm, with surface treament of Antiglare. As a AHVA, Normally Black, Transmissive LCM product, G070VAN01.0 can provides 400 cd/m² display brightness 1300:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 11/19 (Max.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 70% (NTSC). This product adopted 7S2P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 70K hours, external backlight driver is additionally needed. G070VAN01.0 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
Model Name |
G070VAN01.0 |
Manufacturer |
AUO |
Screen Size |
7.0 inch |
Pixel Number |
800×480(RGB) (WVGA) |
Active Area(mm) |
152.4 × 91.44 (H×V) |
Bezel Area(mm) |
154.2 × 93.24 (H×V) |
Luminance |
400 (Typ.)(cd/m²) |
Viewing Angle |
89/89/89/89 (Typ.)(CR≥10) |
Good View at |
Symmetry |
Color Depth |
262K/16.7M 70% NTSC |
Refresh Rate |
60Hz |
Screen Type |
LCM , a-Si TFT-LCD |
Arrangement |
RGB Horizontal Stripe |
Outline(mm) |
166.6 × 107 × 10 (H×V×D) |
Treatment |
Antiglare |
Contrast Ratio |
1300 : 1 (Typ.) (TM) |
Work Mode |
AHVA, Normally Black, Transmissive |
Response |
11/19 (Max.)(Tr/Td) ms |
Backlight |
7S2P WLED , 70K hours , No Driver |
Touchscreen |
Without |
Signal Type |
LVDS (1 ch, 6/8-bit) , 30 pins Connector |
Voltage Supply |
3.3V (Typ.) |
Max. Ratings |
Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |

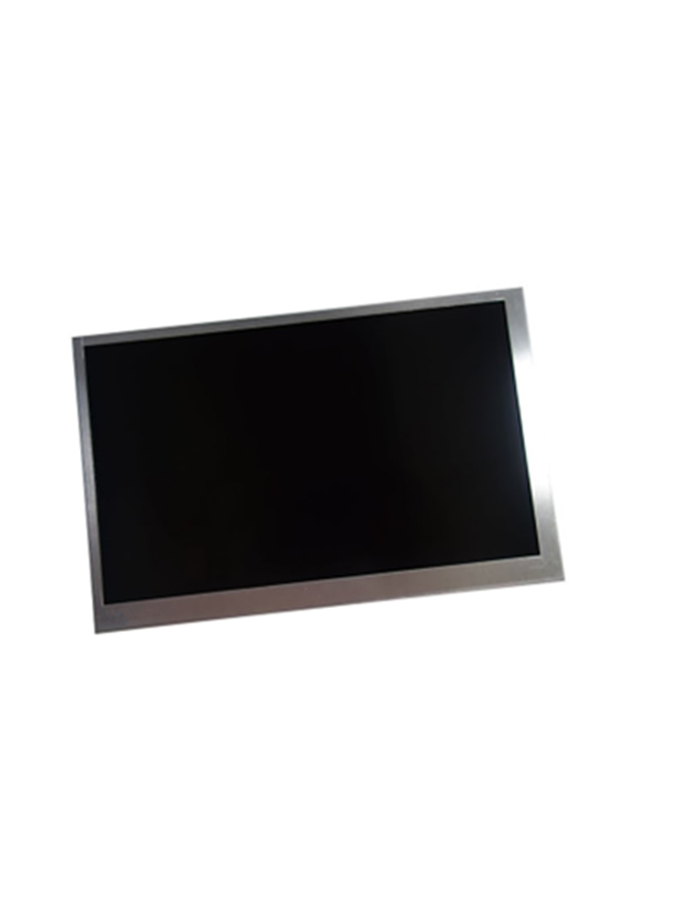

Product Picture:
