AU Optronics Corp. (hereafter called AUO) G121EAN01.0 is a 12.1 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, With LED Driver, without touch screen. This AUO TFT-LCD is a 12.1 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. Based on datasheet with version of Ver0.3 which was released out on 6 1 2016, G121EAN01.0 supports display 1280(RGB)×800 (WXGA) with aspect ratio of 16:10 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 261.12(W)×163.2(H) mm, outline size of 278(W)×184(H)×9.29(D) mm, with surface treament of Antiglare, Hard coating (3H), net weight of TBD. As a IPS, Normally Black, Transmissive LCM product, G121EAN01.0 can provides 500 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 99% (sRGB). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 100K hours, With LED Driver. G121EAN01.0 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
Panel Model |
G121EAN01.0 |
Panel Brand |
AUO |
Panel Size |
12.1 inch |
Panel Type |
a-Si TFT-LCD, LCM |
Resolution |
1280(RGB)×800 , WXGA |
Pixel Format |
RGB Vertical Stripe |
Display Area |
261.12(W)×163.2(H) mm |
Outline Size |
278(W)×184(H) ×9.29(D) mm |
Surface |
Antiglare, Hard coating (3H) |
Brightness |
500 cd/m² (Typ.) |
Contrast Ratio |
1000:1 (Typ.) (TM) |
Viewing Angle |
89/89/89/89 (Typ.)(CR≥10) |
Display Mode |
IPS, Normally Black, Transmissive |
Best View on |
Symmetry |
Response Time |
25 (Typ.)(Tr+Td) |
Display Colors |
262K/16.7M 72% (CIE1931) |
Lamp Type |
WLED , 100K hours , With LED Driver |
Frequency |
60Hz |
Touch Screen |
Without |
Signal Interface |
LVDS (1 ch, 6/8-bit) , 30 pins , Connector |
Input Voltage |
3.3V (Typ.) |
Environment |
Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -30 ~ 85 °C |

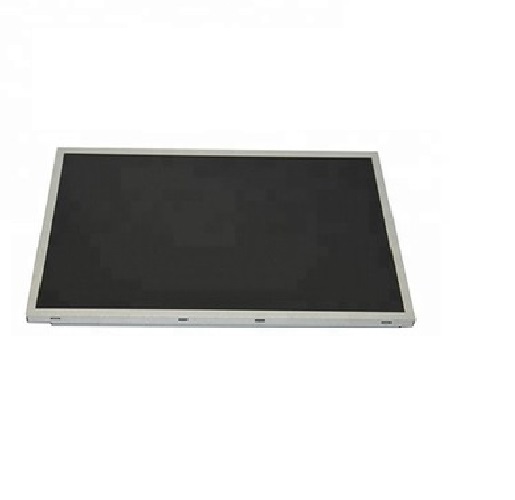

Product Picture
