AU Optronics Corp. (hereafter called AUO) G156HAN02.0 (Product Code: AUO30ED) is a 15.6 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, With LED Driver, without touch screen. This AUO TFT-LCD is a 15.6 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen.Based on datasheet with version of Ver1.1 which was released out on 7 20 2017, G156HAN02.0 supports display 1920(RGB)×1080 (FHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 344.16(W)×193.59(H) mm, outline size of 363.8(W)×215.9(H)×9.3(D) mm, viewing area size of 347.06(W)×196.49(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 600/660g (Typ./Max.). As a AHVA, Normally Black, Transmissive LCM product, G156HAN02.0 can provides 500 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + FRC gray scale signal for each dot, thus presenting a palette of 16.2M colors, also with performance of color gamut 98% (sRGB). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, With LED Driver. G156HAN02.0 utilizes eDP (2 Lanes) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

We are able to offer AD board for this display to support VGA video input.

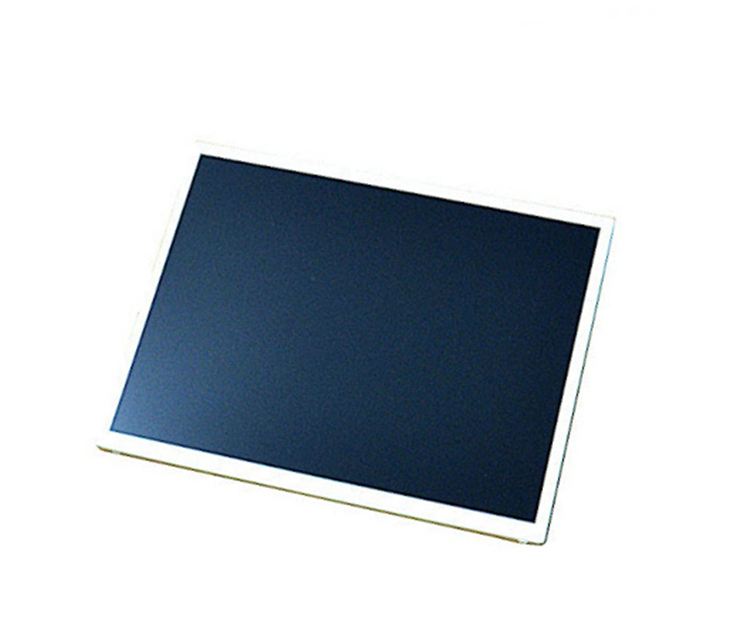

Product Picture:
