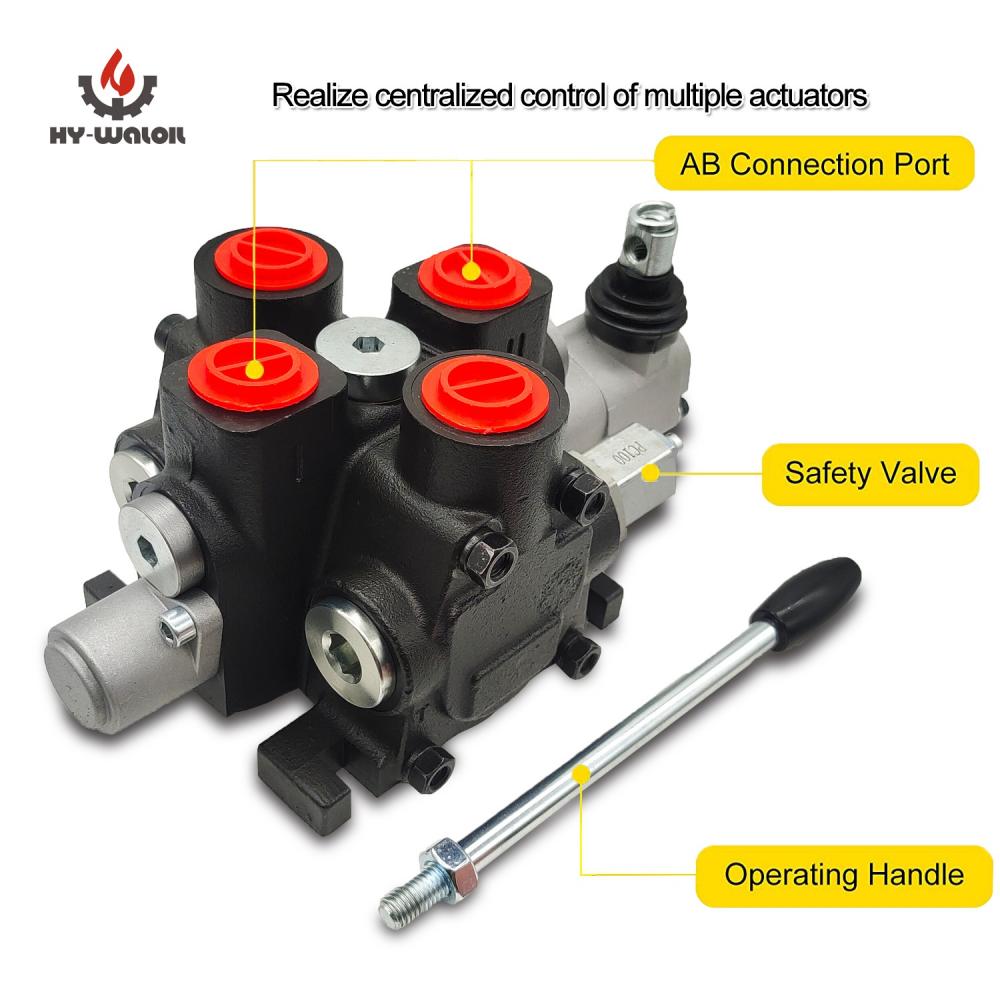

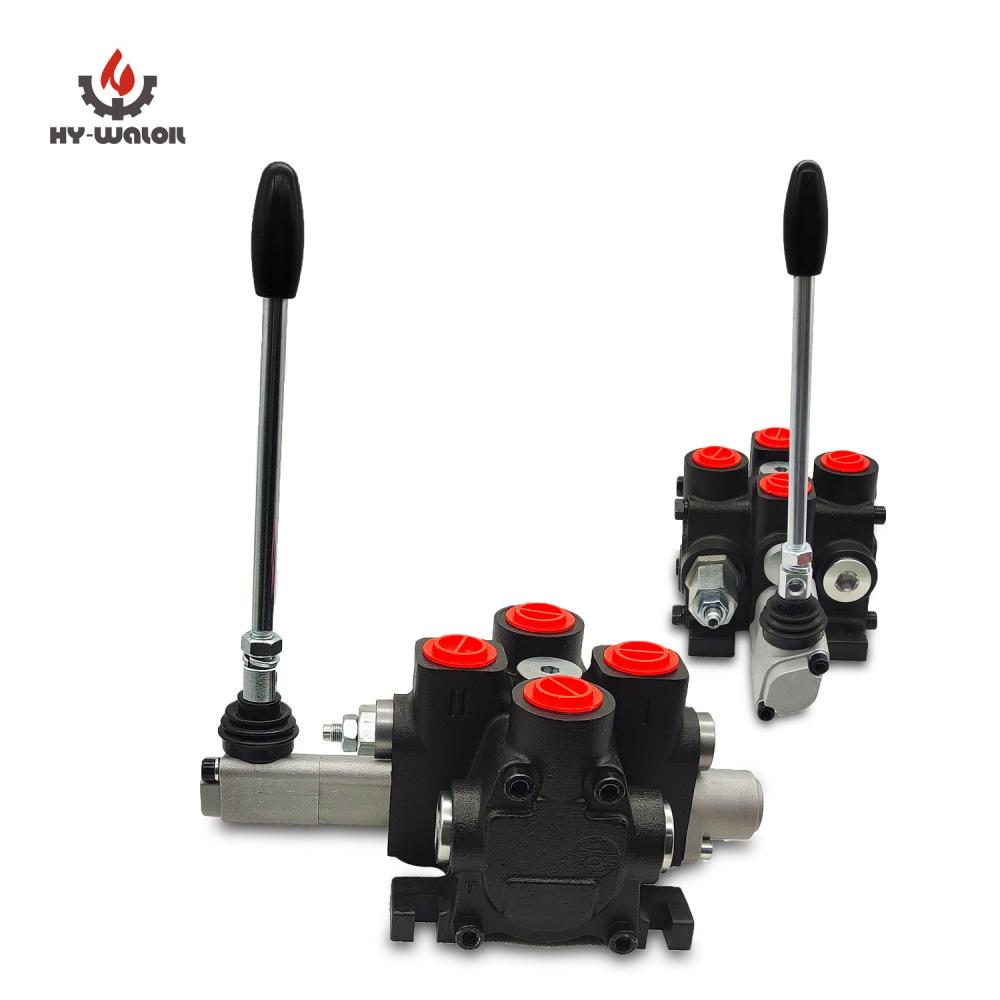

6P40 Hydraulic Directional Control Valve
2 year ago
Description:
1. Sectional valve offers multi-function control valve method to solve hydraulic circuit system requirement.
2. The compact construction design is one of strong features for sectional directional control valves include other features, such as low pressure drop, high efficiency.
3. Sectional Control Technology brings hands-free operations to controlling seed and fertilizer application. The system automatically starts and stops at the headlands when turning, with virtually no flipping of switches or moving levers.
4. PC100 Series Control Valve: 4 Way, 3 POS Tandem Spring Center, Work Section - Manual Operated, SAE 10 Ports, Double Acting, 21 GPM
5. 1-Position Center Switch Sectional Control Valve, 115VAC, 2-50 GPM, 3600 PSI
6. PC100 series control valve: 4-way, 3-POS. DIN connector with central spring to Tandem nut, working section - 12V solenoid operated, SAE 12 ports, 21 GPM
Spool is open center “A” spool with spring return. Working port threads (A & B) are G ¾"
Spool function
M, O, P, Y, etc
Two installation methods
Spring return & detent control
Overflow valve
Adjust the pressure
MAX Pressure
3600 PSI
Maximum working pressure
25 MPA
Temperature Range
-4 to +176
Connection
Recommended temperature range
40 ° C to + 60 ° C
Benefits
Integrally casted by forging, which has good sealing performance and does not leak oil, long lasting.
Application
forklifts, sanitation vehicles, small loaders, light-duty machinery and other construction machinery.
