G353A045 1 1/2'' Threaded Remote Pilot Pulse Jet Diaphragm Valve For Dust Collector
2 year ago
1.5'' Port G353A045 1/4'' Remote Pilot Diaphragm Valve
Ths is G353A045 ASCO replacement remote pilot diaphragm valve, 1 1/2'' inlet port, 1/4'' remote pilot connection, aluminum body, 2/2 way normally closed, -10 ~ +70℃ working temperature, 0.35 ~ 0.85 MPa working pressure.
Product Features:
1. The diaphragm pulse valves are especially designed for dust collector service applications, combining high flow, long life and extremely fast opening and closing to produce reliable and economical operation;
2. The high flow, angle type bodies in combination with the special main diaphragm assemblies give the unique operating features required for dust tcollector service applications;
3. Integral compression fittings for fast, easy, secure installation;
4. The valves satisfy all relevant EC directives;
5. Valves can also be supplied with Viton diaphragms.

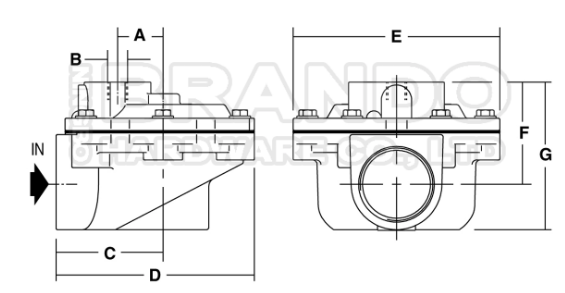

Main dimension of 1 1/2'' Port G353A045 1/4'' Remote Pilot Pulse Valve:
|
Model No
|
A (mm) |
B
|
C
(mm)
|
D
(mm)
|
E
(mm)
|
F
(mm)
|
G
(mm)
|
Weight
(kg)
|
|
G353A041
|
-
|
1/8''
|
51
|
89
|
75
|
41
|
64
|
0.45
|
|
G353A042
|
-
|
1/8''
|
51
|
89
|
75
|
41
|
64
|
0.40
|
|
G353A045
|
30
|
1/4''
|
71
|
130
|
136
|
71
|
98
|
1.00
|
Technical parameters of ASCO Type G353 Series Remote Pilot Pulse Valves:
|
Port
Size
|
Remote Pilot Connection
|
Office Size
|
Operating Pressure Differential (Bar)
|
Model Number
|
Diaphragm Material
|
|
|
G
|
φB
|
(mm)
|
Min.
|
Max.
|
Aluminium
|
NBR/Viton
|
|
3/4''
|
1/8''
|
24
|
0.35 |
8.5
|
G353A041
|
|
|
1''
|
1/8''
|
27
|
0.35
|
8.5
|
G353A042
|
|
|
1 1/2''
|
1/8''
|
52
|
0.35
|
8.5
|
G353A045
|
|

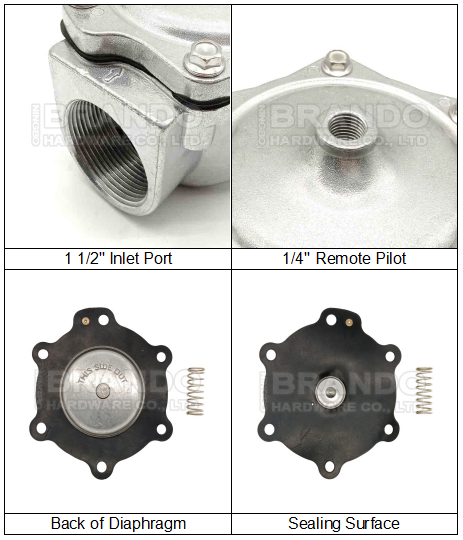

Spare part details of G353A045 Dust Collector Diaphragm Valve:
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
