SCG353A050 2'' Threaded Dust Collector Solenoid Pulse Jet Valve 24VDC 110VAC 220VAC

2 year ago

20 0 

11 year

Product details

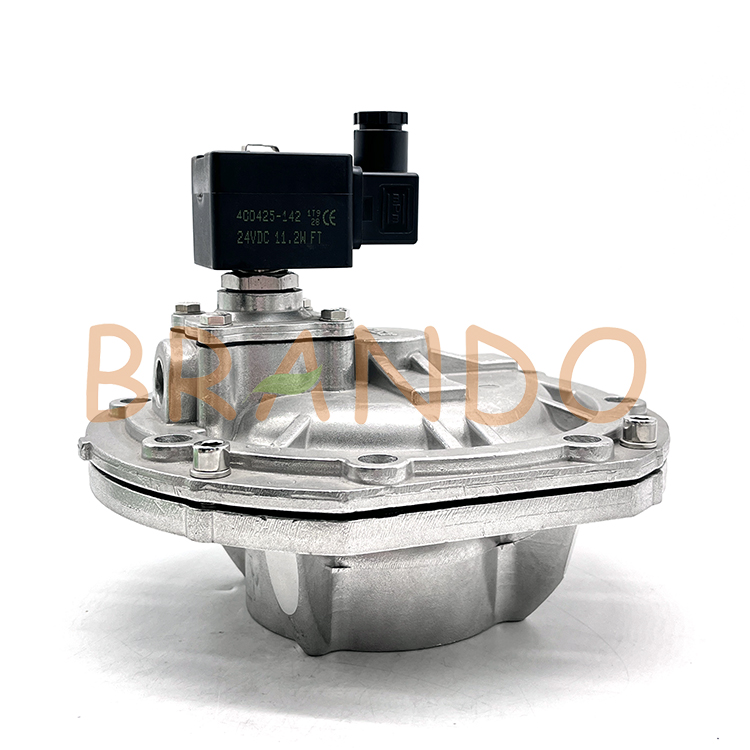

SCG353A050 ASCO Type Right Angle Pulse Jet Valve

The right angle 353 series pulse jet valve usually used for bag house, dust collector, bag filter and so on. The valve body and bonnet are die-casting dense, and the surface is covered with transparent paint to improve the anti-corrosion performance. The sealing gasket on the diaphragm is made of metal and rubber, with good rigidity and no leakage. The electromagnetic pilot head has large suction and sensitive and reliable action.

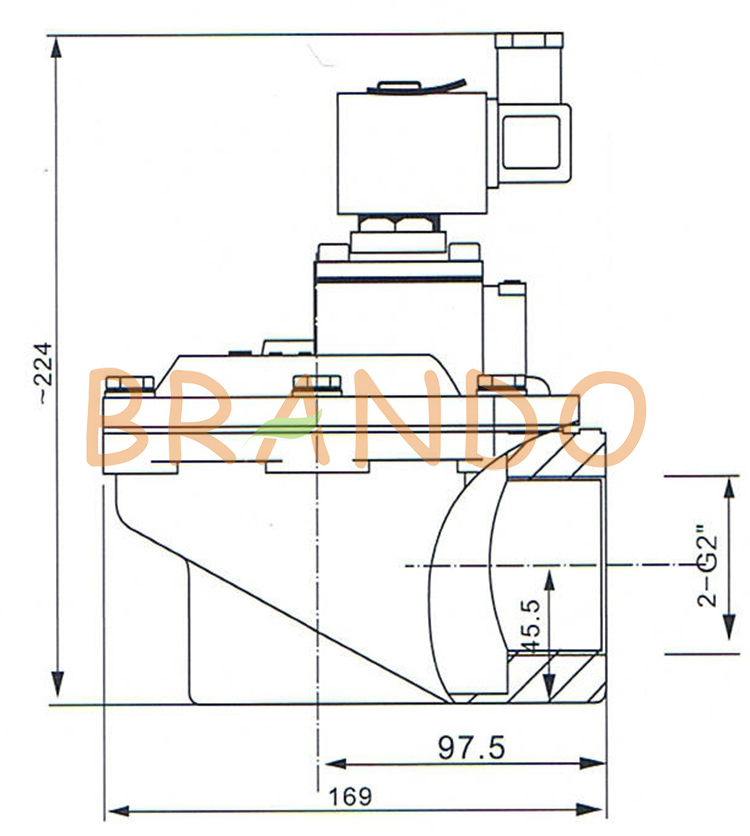

Main Dimension of SCG353A050 Pulse Jet Valve:

050

Specification of Threaded Pulse Jet Valves:

Model	SCG353A043	SCG353A044	SCG353A047	SCG353A050	SCG353A051
Port Size	3/4''	1''	1 1/2''	2''	2 1/2''
Voltages	24VDC, 24VAC, 110VAC, 220VAC
Diaphragm Number	1		2
Working Pressure Range	0.35 to 0.85 MPa
Diaphragm Material	TPE, NBR, FKM
Fluids	Air
Valve Structure	Right Angle, Threaded Port

More ASCO Type Pulse Valves for you to choose:

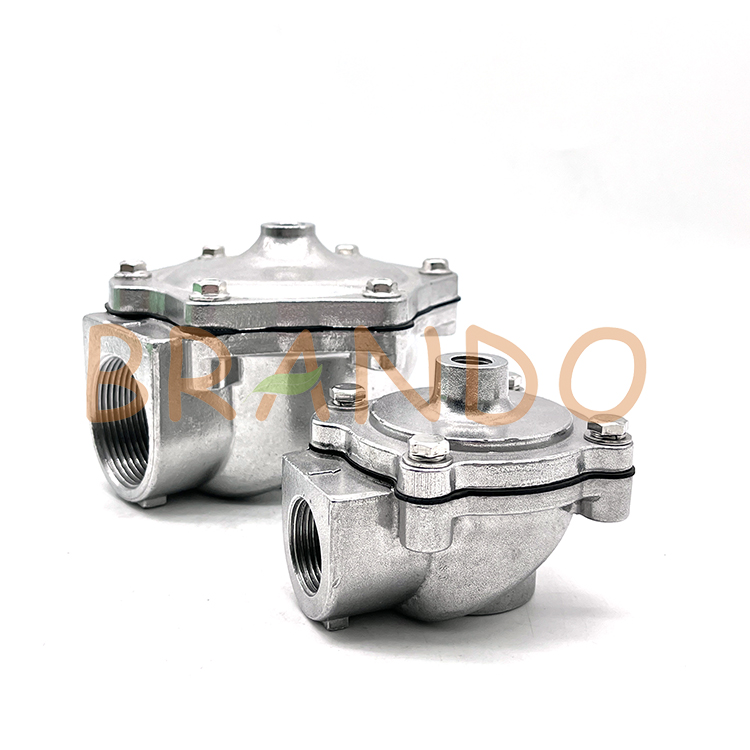

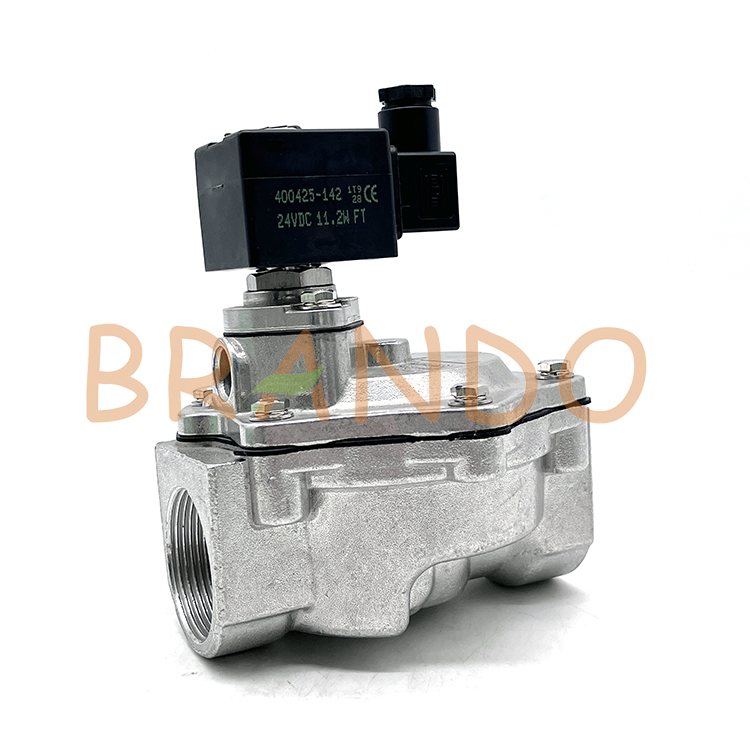

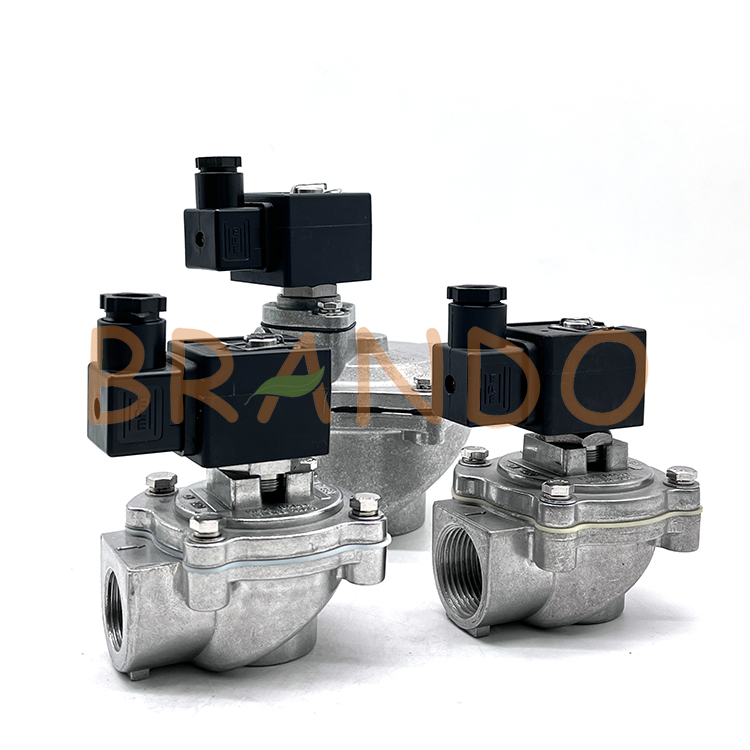

Threaded Type	Remote Pilot Type	Straight Through Type	Submerged Type

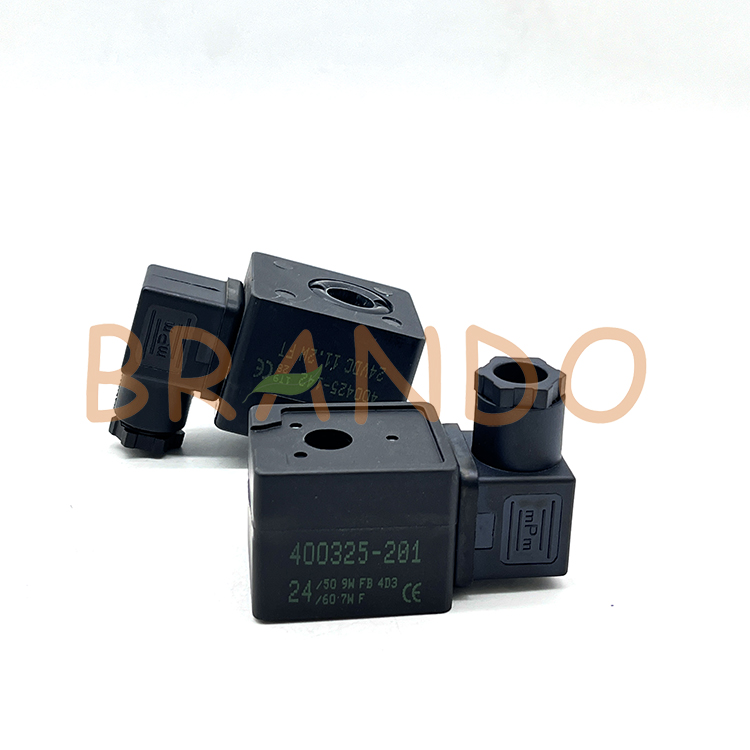

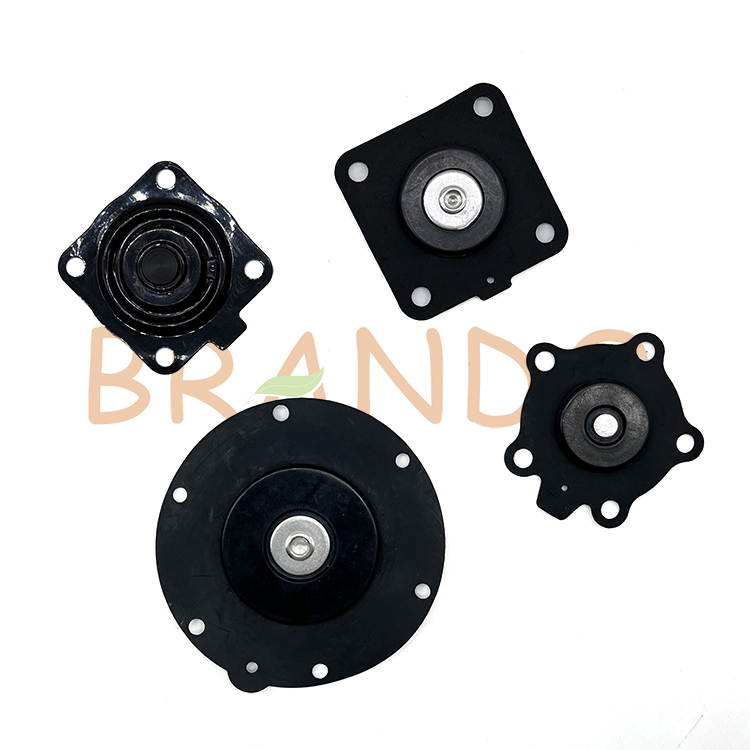

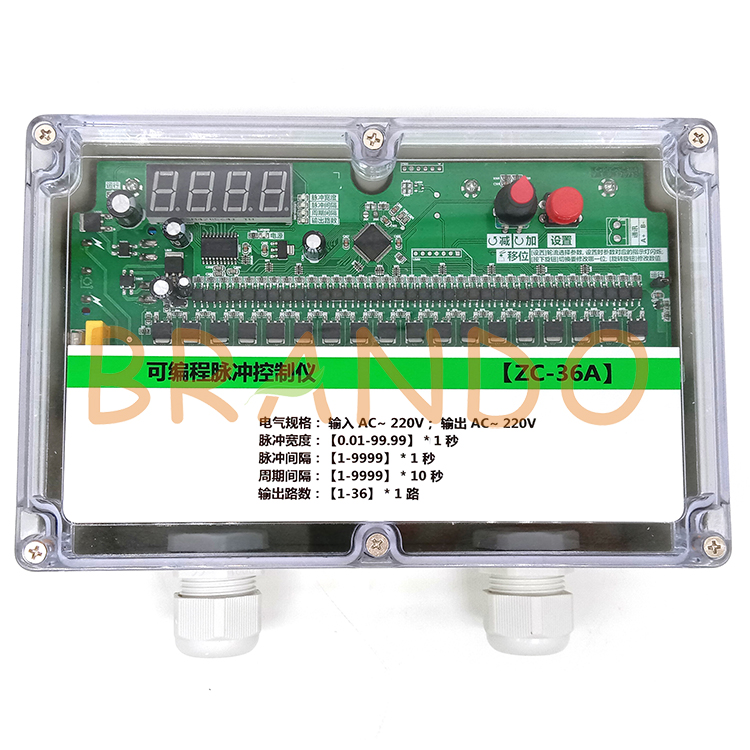

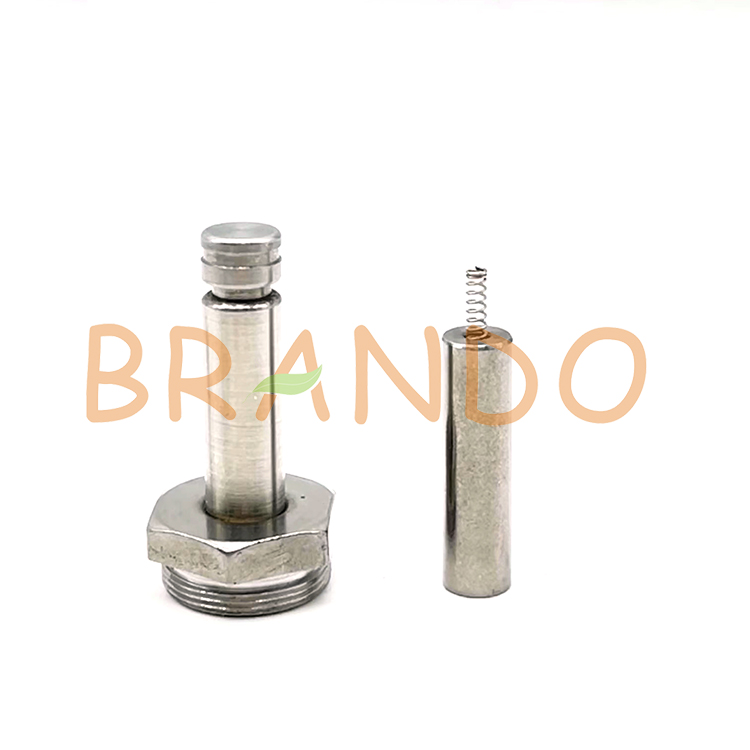

Valve Diaphragm	Solenoid Coil	Solenoid Armature	Pulse Controller

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
