CA76T 3'' Threaded Dust Collector Pulse Jet Solenoid Valve 24V 110V 220V

2 year ago

19 0 

11 year

Product details

3 Inch CA76T Goyen Type Pulse Air Valve

Pulse Jet Valve, also called diaphragm valve acts as a "switch" for compressed air in the dust collector system for bag filters. It is controlled by the electric signals from the pulse controller. Pulse jet valves are used in filtering systems of dust collectors, gas turbines, and desulfurization equipment. They are commonly used to clean filters such as cartridge filters, envelope filters, ceramic filters, and sintered metal fiber filters.

According to the valve structure:
* Right Angle Type
* Submerged Type
* Quick Mount Type
* Straight Through Type
* Flanged Type

Technical data of T Series Pulse Jet Valve:

Model No	CA15T	CA20T	CA25T	CA35T	CA45T	CA50T	CA62T	CA76T
Nonimal size	φ15	φ20	φ25	φ35	φ45	φ50	φ62	φ76
Port Size	1/2''	3/4''	1''	1 1/4''	1 1/2''	2''	2 1/2''	3''
Working pressure	0.3MPa to 0.8MPa
Temp. range	-5℃ to 55℃
Relative humidity	≤85%
Working medium	Compressed Air
Voltage	24VDC, 110VAC, 220VAC

Tips: All related accessories are also sold, like Pulse Controller, Diaphragm Repair Kit, Solenoid Coil and Solenoid Valve Armature Assembly.

Main dimension of CA76T Pulse Jet Valve:

CA76T

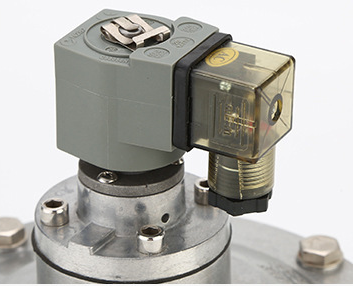

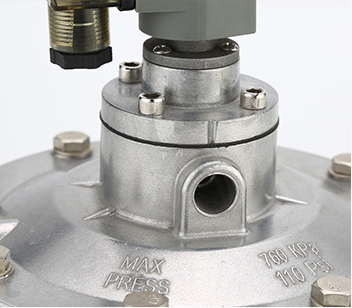

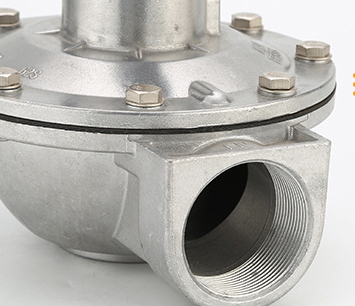

Detail images of CA76T Pulse Jet Valve:

Brando Supply:

*SBFEC Type Pulse Jet Valve *Goyen Type Pulse Jet Valve *ASCO Type Pulse Jet Valve *Other Dust Collector Valve

*Solenoid Valve Coil *Solenoid Armature/Stem *Diaphragm Repair Kit *Pulse Controller

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
