2 1/2'' Full Immersion Pulse Jet Diaphragm Valve For Dust Collector Tank 24V 110V 220V
2 year ago
CA62MM 2-1/2'' Full Immerse Solenoid Pulse Valve
Goyen Type Manifold Flat Mount Pulse Valve with diecast aluminum alloy body. Most powerful air pulse due to full immersion. Increased pulse efficiency, reduced energy consumption. Durable materials and wide temperature range enhance lifespan. These diaphragm valves are designed for dust collectors and baghouses with reverse pulse jet filter cleaning systems.
Our manifold flat mount valves for reverse pulse jet systems in dust collectors are manufactured from die cast aluminum. These high-performance diaphragm valves are designed to be directly mounted onto a square compressed header tank. They are full immersion valves, with the inlet port located right inside the compressed air manifold. Drawing the compressed air directly from the tank delivers improved pneumatic performance and a significant boost to the air pulses.
Technical Data:
Model No.
CA62MM
Port Size
G2-1/2''
Orifice Size
62mm
Number of Diaphragm
2
Valve Type
Manifold Flat Mount Pulse Valve
Media
Air
Pressure Range
0.3~0.8Mpa
Working Temperature
-5~+55℃
Voltage
AC220V, AC110V, AC24V, DC24V
Special voltages and special specifications, please contant us.

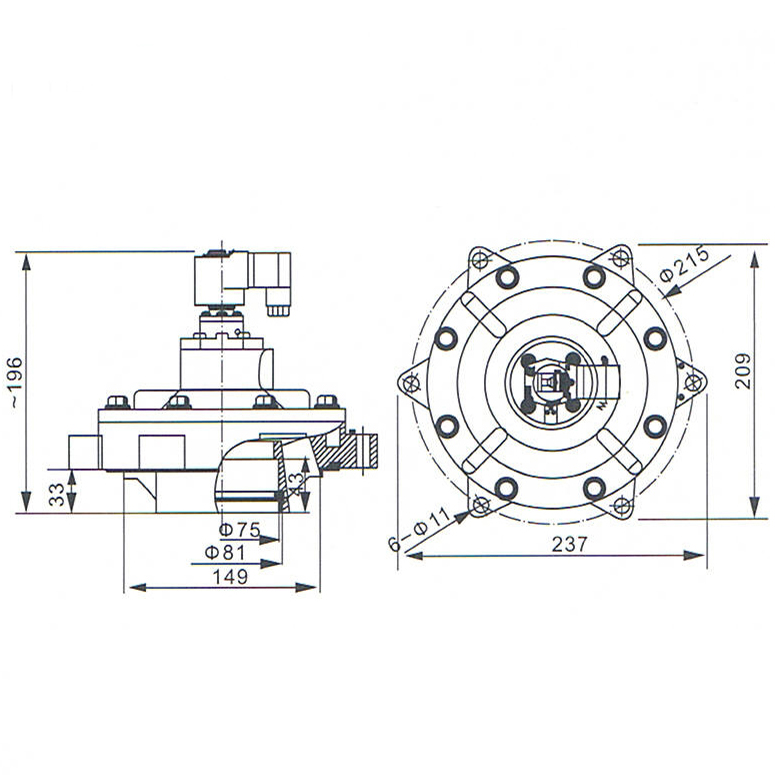

Overall Dimension:

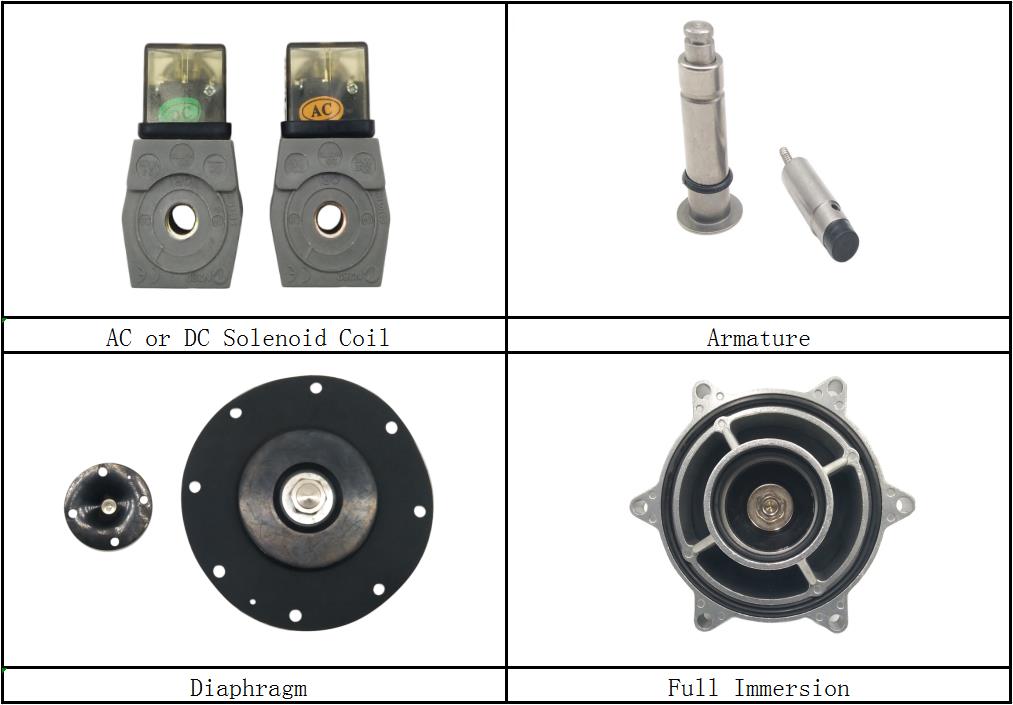

Details about CA62MM Dust Collector:
Construction:
Body and Dreeser Nuts: Aluminum (diecast)
Ferrule: 305 Stainless Steel
Armature: 430FR Stainless Steel
Diaphragm and Seals: Nitrile or FKM
Spring: 304 Stainless Steel
Screws: 302 or 304 Stainless steel
Outlet Pipe: Schedule 40 wrought steel zinc passivated
Diaphragm Seat: PA-66 (25 & 40MM standard), Nitrile-coated mild steel (76MM standard), Acetal (102MM standard) or Vitoncoated mild steel
Maintenance kits:
Model No.
Repair Kits
Includes
CA62MM
K5004 (M1638A)

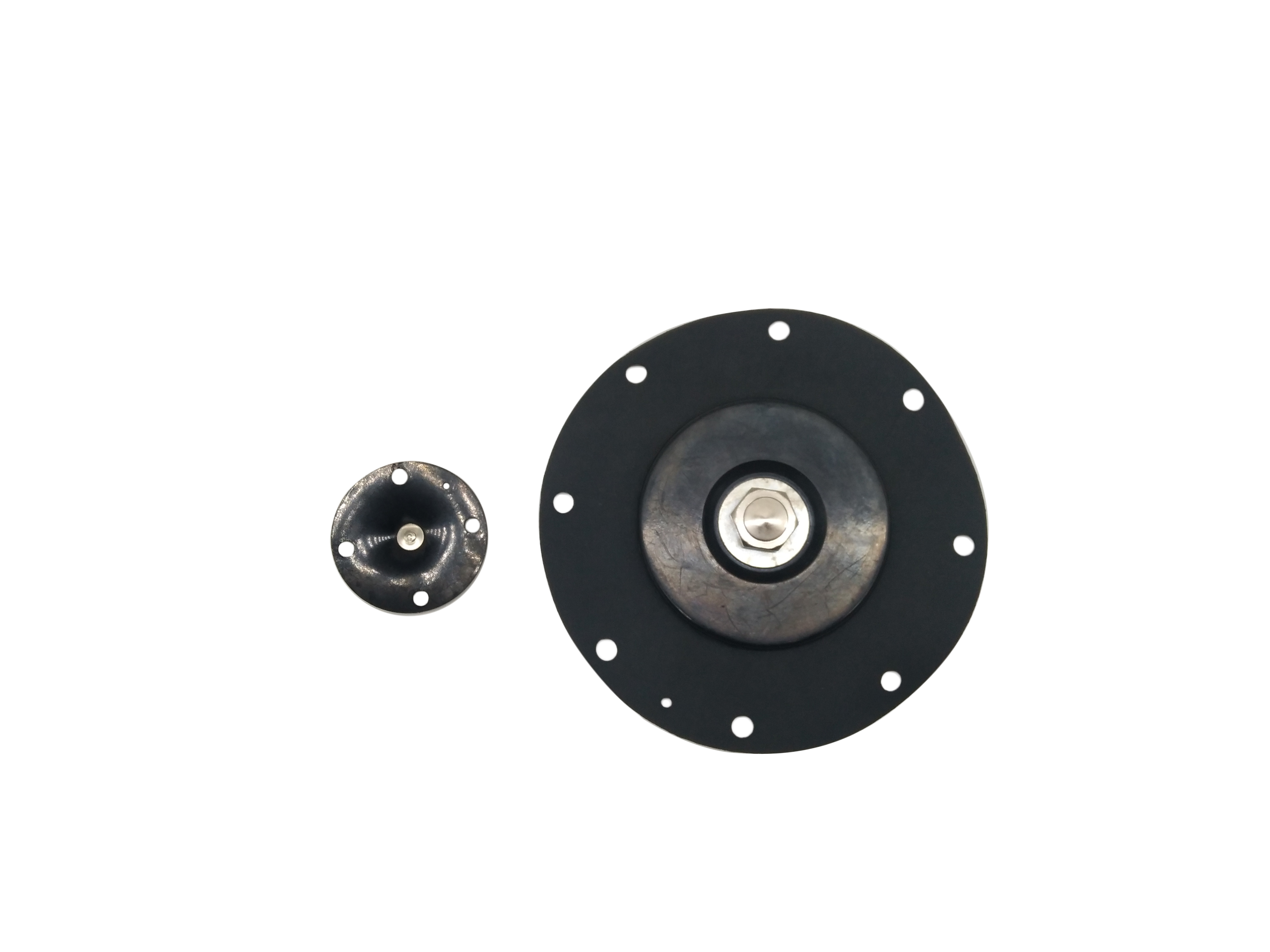

Diaphragm kits include main and secondary diaphragms and all spring
K5005 (M1639A)
K0380 (M1131B)

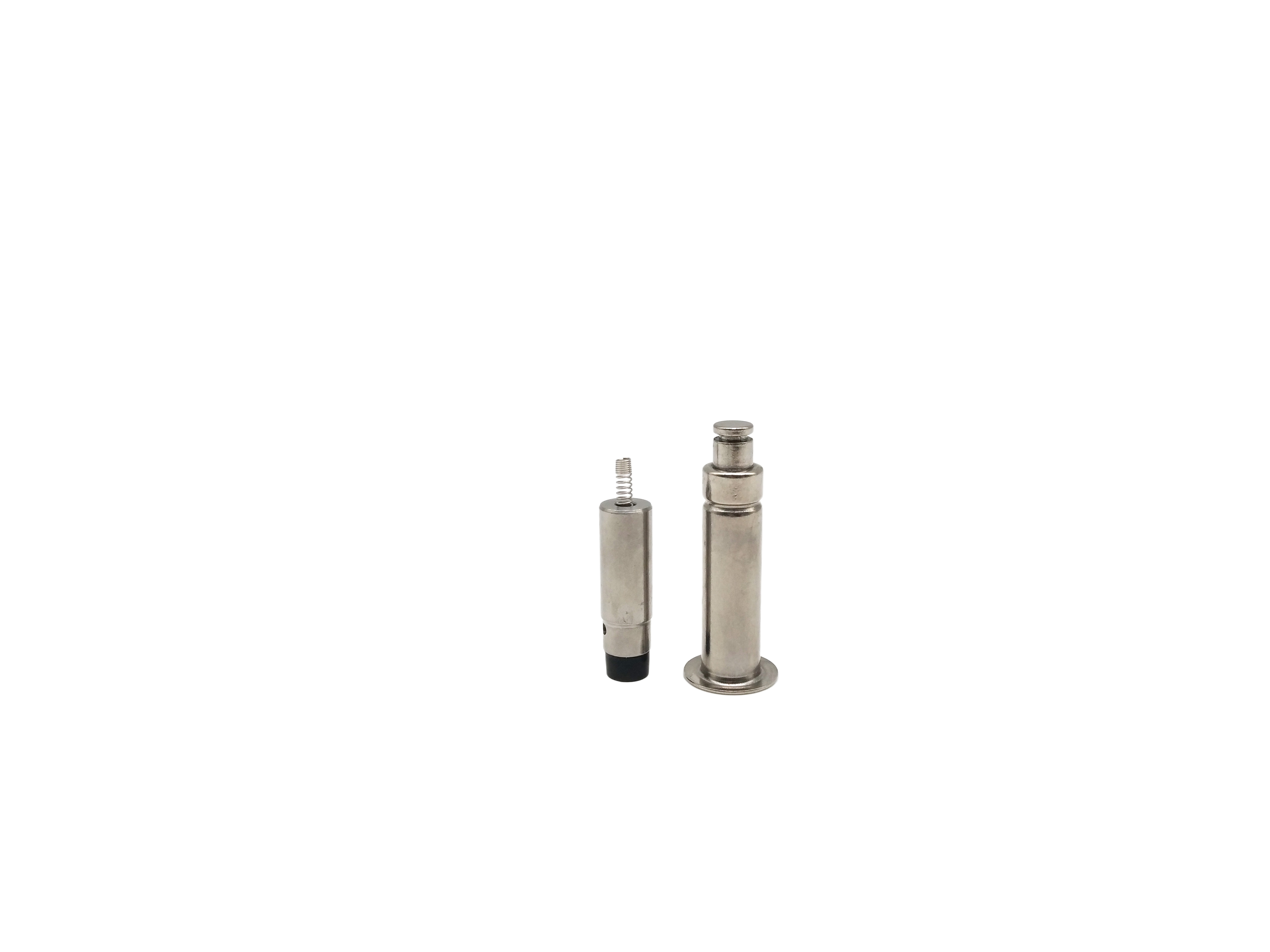

O-ring, armature assembly, armature spring, ferrule
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
