DTA-ZT-25 1'' Straight Through Threaded Pulse Jet Valve
Installation:
1. Prepare supply and blow tube pipes to suit valve specification. Avoid installing valves underneath the tank.
2. Ensure tank and pipes avoid dirt, rust or other particulate.
3. Make sure air source is clean and dry.
4, When mount valves to inlet pipes and outlet to the baghouse, ensuring no excess thread sealant can enter the valve itself. Keep clear in the valve and pipe.
5. Make electrical connections from solenoid to the controller or connect RCA pilot port to pilot valve
6. Apply moderate pressure to system and check for installation leaks.
7. Fully pressurise system.
Good quality imported diaphragm shall be selected and used for all the valves, with each part checked in each manufacturing procedure, and put into the assembly line conforming to all the procedures. Ever finished valve shall be taken blowing test.
Temperature Range: -40 – 120C ( Nitrile material diaphragm and seal), -29 – 232C (Viton material diaphragm and seal)
Model Specification:
| Model | Port Size | Orifice | Flow Value |
|
Working Pressure Difference |
|
| SCG353A043 | 3/4" | 25 | 14m³/h | 233l/min | min0.3 | max8.5 |
| SCG353A044 | 1" | 25 | 23m³/h | 283l/min | min0.3 | max8.5 |
| SCG353A047 | 1 1/2" | 52 | 46m³/h | 768l/min | min0.3 | max8.5 |
| SCG353A050 | 2" | 66 | 77m³/h | 1290l/min | min0.35 | max8.5 |
| SCG353A051 | 2 1/2" | 66 | 92m³/h | 1540l/min | min0.35 | max8.5 |
| SCG353.060 | 3" | 72 | 170m³/h | 2833l/min | min1 | max6 |
Asco Type Pulse Valve Working Condition:
| Model | SCG353A043 | SCG353A044 | SCG353A047 | SCG353A050 | SCG353A051 |
| Working pressure | 0.3--0.8Mpa | ||||
| Ambient temperature | -5--55℃ | ||||
| Relative humidity | ＜85% | ||||
| Medium | dry clean compressed air | ||||
| Voltage | 110V AC/ 220V AC/ 24V DC | ||||
| Diaphragm woking life | more than 1 million times | ||||
| Nominal diameter | φ20 | φ25 | φ40 | φ50 | φ62 |
| Port thread | G3/4" | G1" | G1 1/2" | G2" | G 2 1/2" |

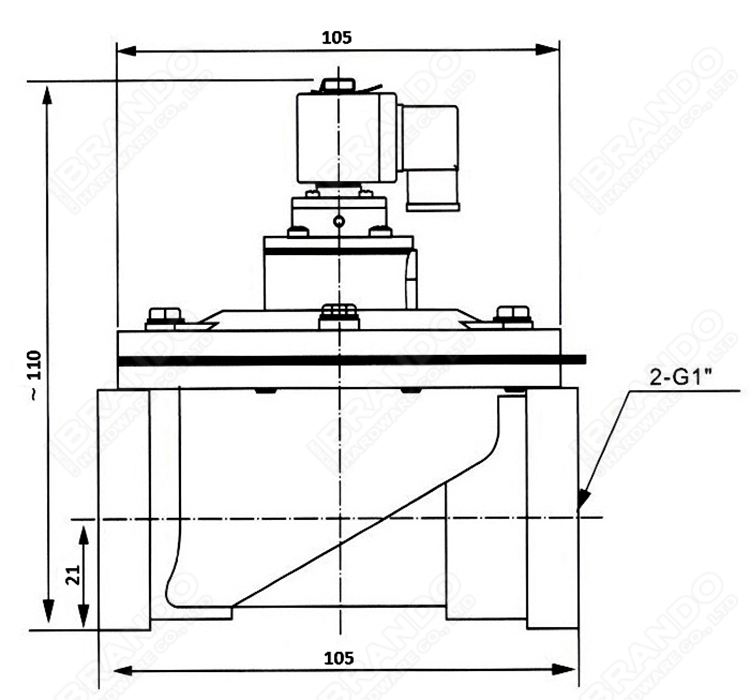

Overall Dimensions of ASCO Type Pulse valve
Pulse Valve Internal Structure and Main Parts:
| Part Name | Material |
| Solenoid coil | high quanlity enamelled wire |
| Armature assembly | SS304, 430FR |
| Small common cap | ADC aluminum |
| Diaphragm | NBR (nitrile, buna-n) |
| Top end cap | ADC aluminum |
| Big spring | SS304 |
| Screws | SS302 |
| Seal | NBR, Viton, all can be customized |
| Main body | ADC aluminum |
Advantages of ASCO Type pulse valve:
1, mainly designed for dust collecting application, with characteristic of high flow value, long working life and fast switch response, to ensure the steady function of dust removing system
2, the diaphragms with high quality and proffessional design for pulse valve working life
Detail Of ASCO Type Solenoid Valve In Dust Collector System:

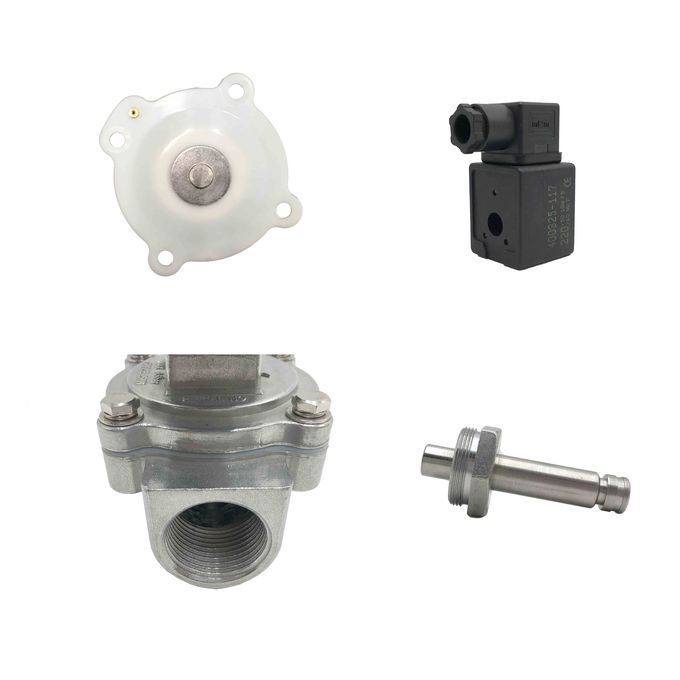

Tips: All accessories can be sold separately as repair parts (Diaphragm, Solenoid Coil, Armature Assembly)
