Straight Through 1.5 Inch Diaphragm Pulse Jet Valve
Quick Detail:
* ASCO type right angle and in line remote pilot pulse jet vavle
* Valve surface embalmed,non-shedding coat
* DN20mm~DN75mm
* Right angle valve body or in line valve body
* Special stainless steel piston/Diaphragm
* High quality TPE piston/Diaphragm,long service life
* Wide range of working temperature
* Seal Material NBR standard
* Outstanding airproof performance
* With excellent flow liquidity
* High flow rate CV,heavy duty
* Fast respond,low noise,low consumption
* Easy and convenient for maintenance
* Stable design,long serive life
Good quality imported diaphragm shall be selected and used for all the valves, with each part checked in each manufacturing procedure, and put into the assembly line conforming to all the procedures. Ever finished valve shall be taken blowing test.
Temperature Range: -40 – 120C ( Nitrile material diaphragm and seal), -29 – 232C (Viton material diaphragm and seal)
Applications:
ASCO type remote pilot pulse jet valve used widely in Environment technology such as Ventilation and dust removal purification of industrial bolier,Iron and steel industrial, metallurgy, foundry, chemical, building material,machinery,rubber industrial etc
Model Specification:
| Model | Port Size | Orifice | Flow Value |
|
Working Pressure Difference |
|
| SCG353A043 | 3/4" | 25 | 14m³/h | 233l/min | min0.3 | max8.5 |
| SCG353A044 | 1" | 25 | 23m³/h | 283l/min | min0.3 | max8.5 |
| SCG353A047 | 1 1/2" | 52 | 46m³/h | 768l/min | min0.3 | max8.5 |
| SCG353A050 | 2" | 66 | 77m³/h | 1290l/min | min0.35 | max8.5 |
| SCG353A051 | 2 1/2" | 66 | 92m³/h | 1540l/min | min0.35 | max8.5 |
| SCG353.060 | 3" | 72 | 170m³/h | 2833l/min | min1 | max6 |
Asco Type Pulse Valve Working Condition:
| Model | SCG353A043 | SCG353A044 | SCG353A047 | SCG353A050 | SCG353A051 |
| Working pressure | 0.3--0.8Mpa | ||||
| Ambient temperature | -5--55℃ | ||||
| Relative humidity | ＜85% | ||||
| Medium | dry clean compressed air | ||||
| Voltage | 110V AC/ 220V AC/ 24V DC | ||||
| Diaphragm woking life | more than 1 million times | ||||
| Nominal diameter | φ20 | φ25 | φ40 | φ50 | φ62 |
| Port thread | G3/4" | G1" | G1 1/2" | G2" | G 2 1/2" |
Overall Dimensions of ASCO Type Pulse valve
Pulse Valve Internal Structure and Main Parts:
| Part Name | Material |
| Solenoid coil | high quanlity enamelled wire |
| Armature assembly | SS304, 430FR |
| Small common cap | ADC aluminum |
| Diaphragm | NBR (nitrile, buna-n) |
| Top end cap | ADC aluminum |
| Big spring | SS304 |
| Screws | SS302 |
| Seal | NBR, Viton, all can be customized |
| Main body | ADC aluminum |
Advantages of ASCO Type pulse valve:
1, mainly designed for dust collecting application, with characteristic of high flow value, long working life and fast switch response, to ensure the steady function of dust removing system
2, the diaphragms with high quality and proffessional design for pulse valve working life
Detail Of ASCO Type Solenoid Valve In Dust Collector System:

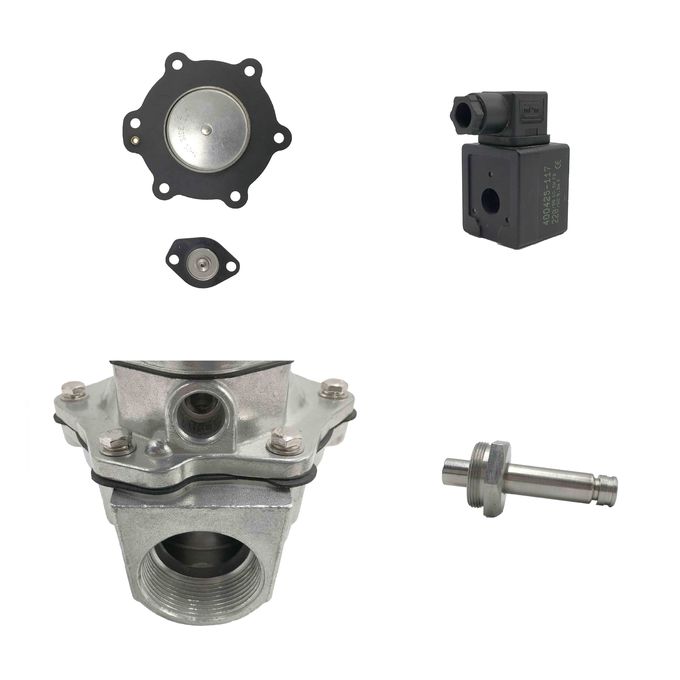

Tips: All accessories can be sold separately as repair parts (Diaphragm, Solenoid Coil, Armature Assembly)
