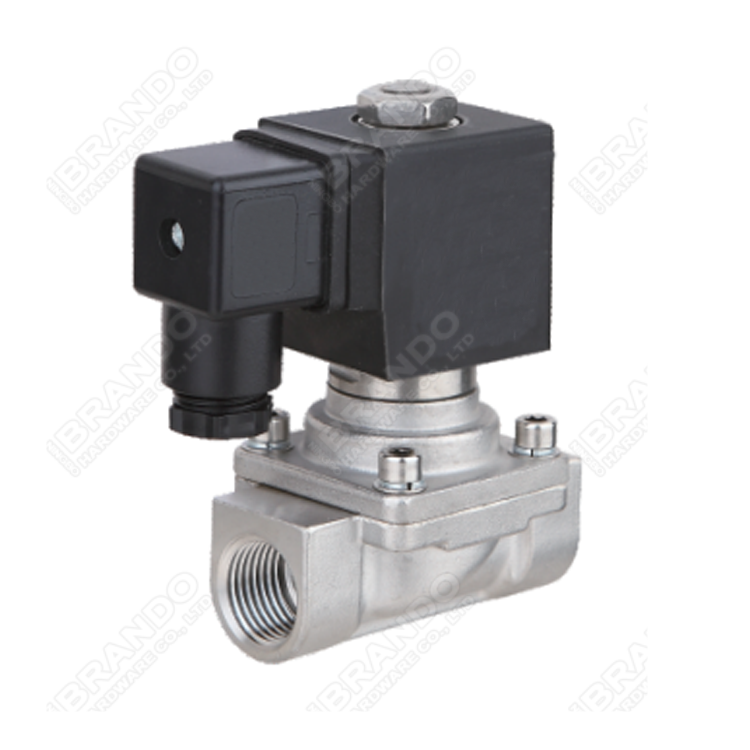

1/2'' High Temperature Steam Hot Water Stainless Steel Solenoid Valve 24VDC 110VAC 220VAC
2 year ago

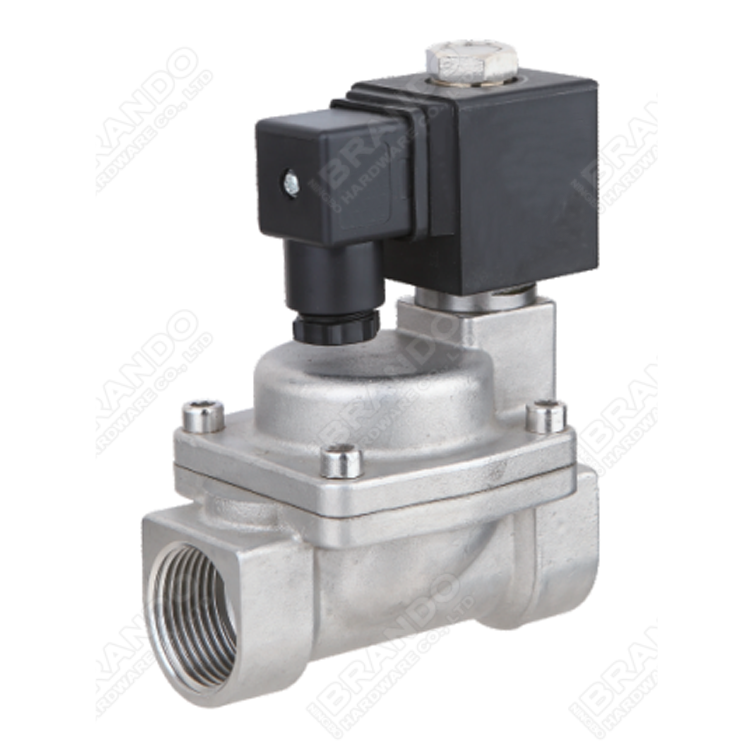

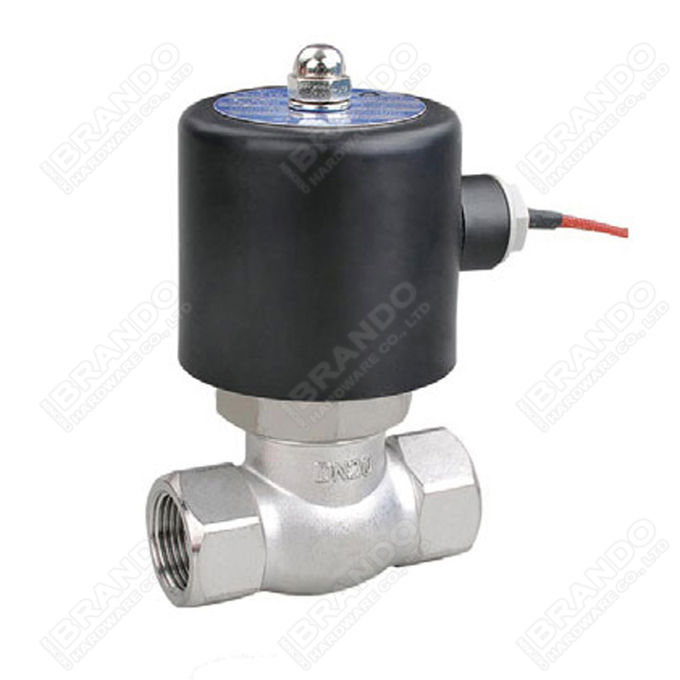

Stainless Steel Steam Solenoid Valve 3/4'' 110V 220V
Product Features:
1. Port Size: 1/2'', 3/4'', 1''
2. Orifice Size: 5mm, 15mm, 20mm, 25mm
3. Function: 2 Way Normally Closed

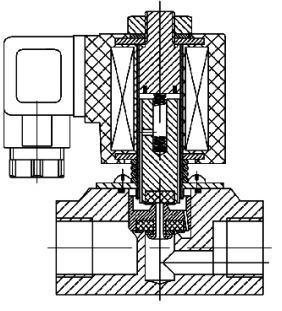

4. Operation: Piston Pilot Operated
5. Body Material: Stainless Steel 304
6. Seal Material: PTFE, FKM
7. Working Temperature: PTFE: -60 to +200℃, FKM: -30 to +150℃
8. Working Medium: Hot Water, Steam, Oil, etc
9. Working Pressure: 0.01 to 1 MPa
10. Voltage: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC (50/60Hz)
Technical Data:
|
Model No
|
Port Size
|
Orifice Size
|
Cv
|
Min Pressure
|
Max Pressure
|
Seal Material
|
Body Material
|
|
|
AC
|
DC
|
|||||||
|
26320BA06
|
1/2''
|
5mm
|
0.5
|
0.1bar
|
10bar
|
10bar
|
PTFE FKM |
Stainless Steel
|
|
26320BA15
|
1/2''
|
15mm
|
2.8
|
|||||
|
26320BA20
|
3/4''
|
20mm
|
2.8
|
|||||
|
26320BA25
|
1''
|
25mm
|
2.8
|
|||||

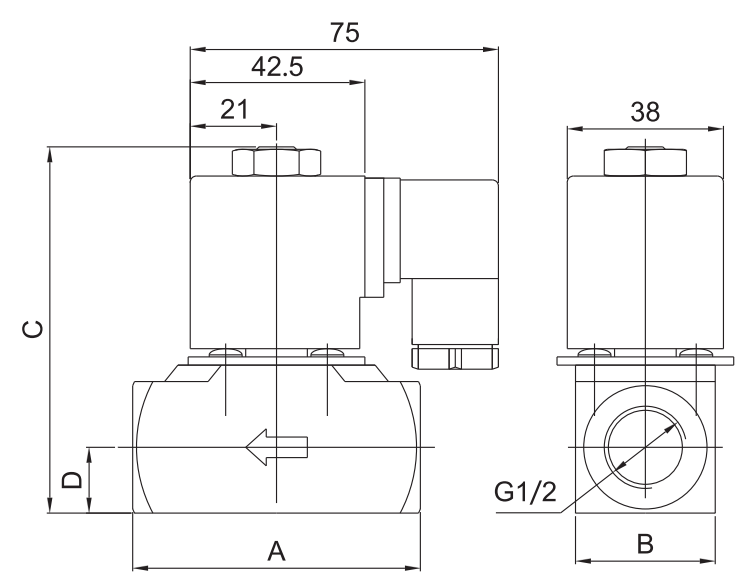

Main Dimension:
|
|
|
Model No
|
23620BA06
|
23620BA15
|
23620BA20
|
23620BA25
|
|
Port
|
1/2''
|
1/2''
|
3/4''
|
1''
|
|
A
|
50
|
80
|
80
|
80
|
|
B
|
30
|
40
|
40
|
40
|
|
C
|
75
|
92
|
92
|
92
|
|
D
|
16
|
19
|
19
|
19
|
Our Production:

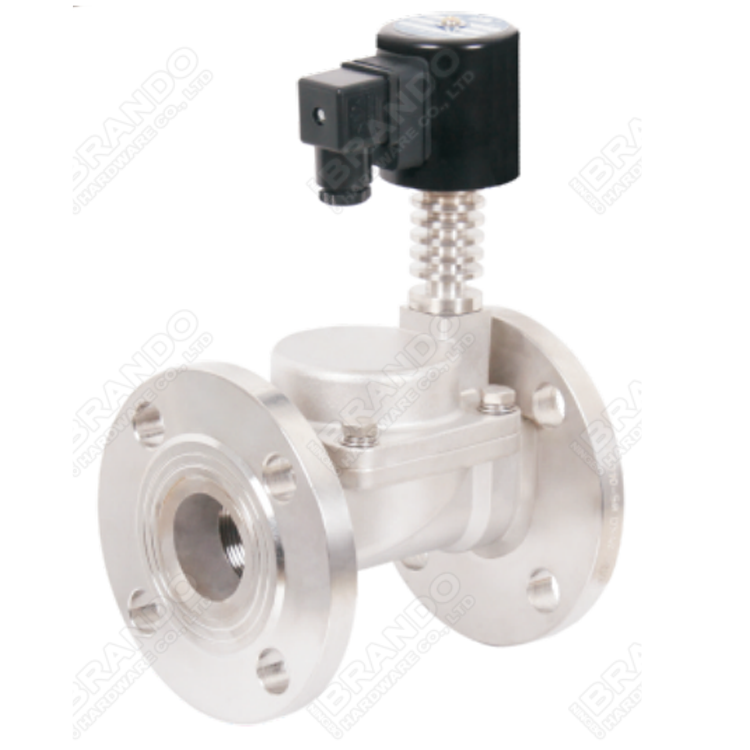

More Steam Solenoid Valves:

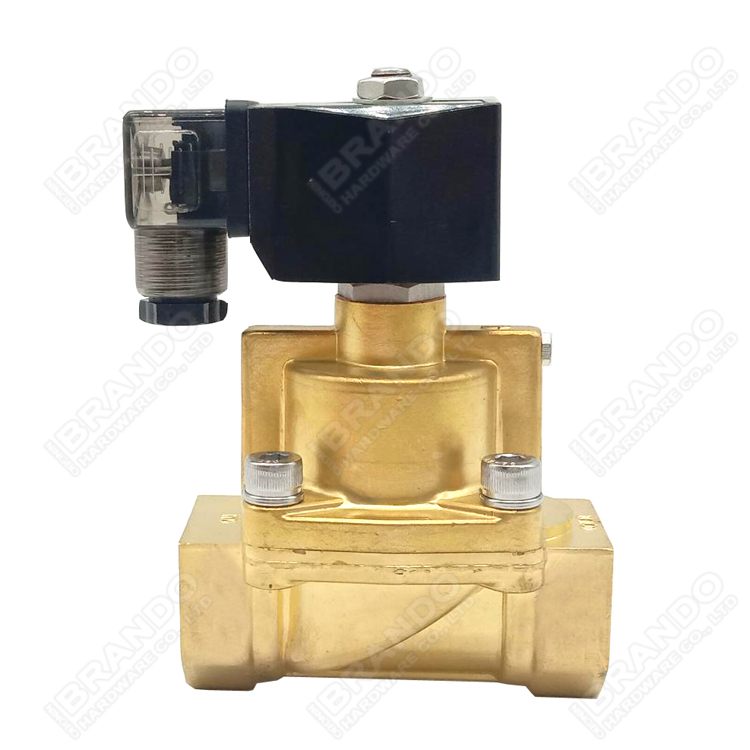

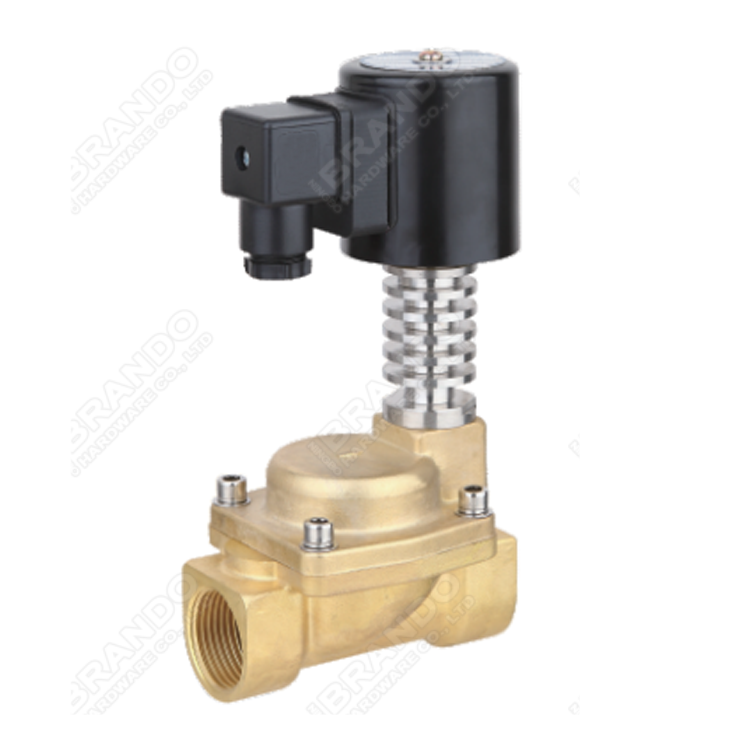

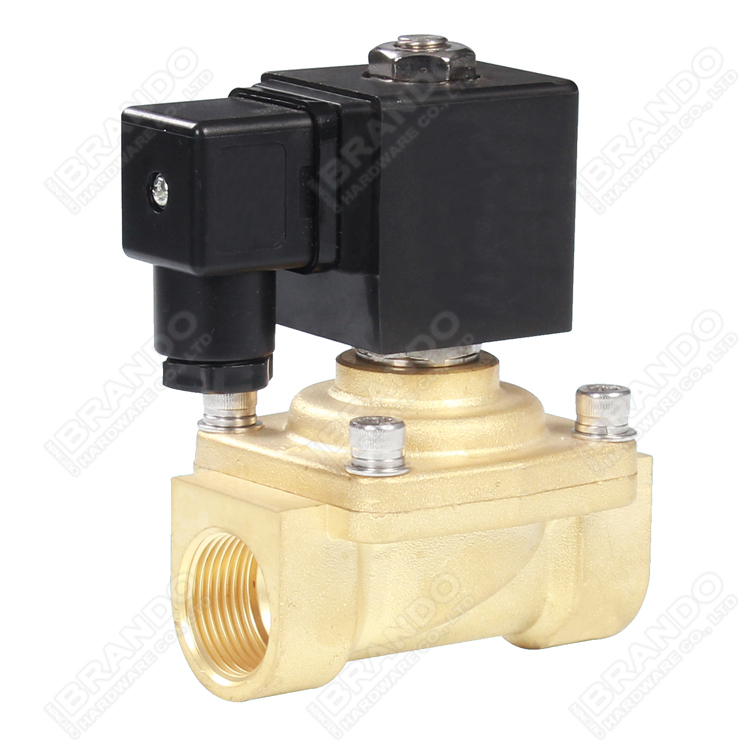

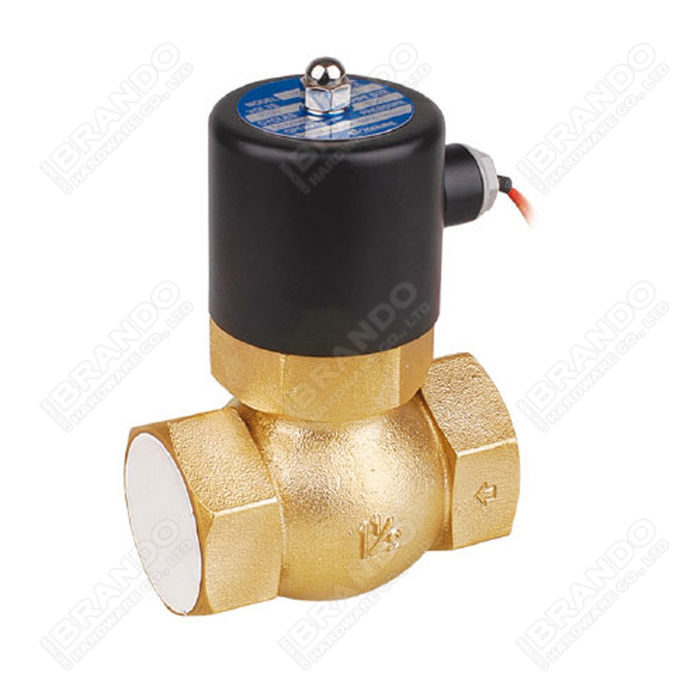

| Brass Solenoid Valve | |||
 |
 |
 |
 |
| Stainless Steel Solenoid Valve | |||
 |
 |
 |
 |
FAQ:
Question 1: What is a solenoid valve used for?
Answer 1: A solenoid valve is used to open, close, mix, or divert media in an application. They are used in a wide variety of applications.
Question 2: How can you tell if your solenoid is bad?
Answer 2: If the solenoid valve fails to open or close, is partially open, makes a humming noise or has a burned-out coil, you need to troubleshoot the valve solenoids.
Question 3: How do I choose a solenoid valve?
Answer 3: When choosing a solenoid valve, it is important to know your media. Depending upon the media and flow requirement, choose the material, orifice size, temperature, pressure, voltage, response time and certification required for your application.
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
