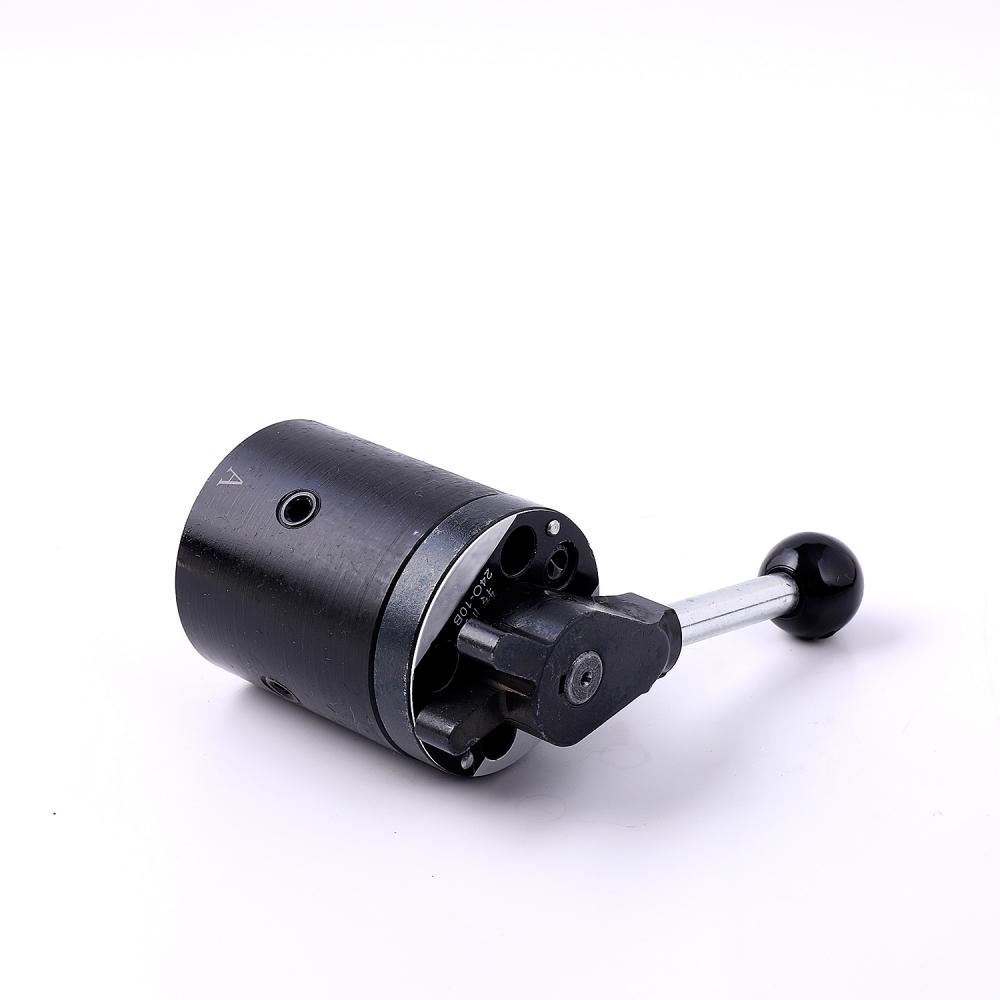

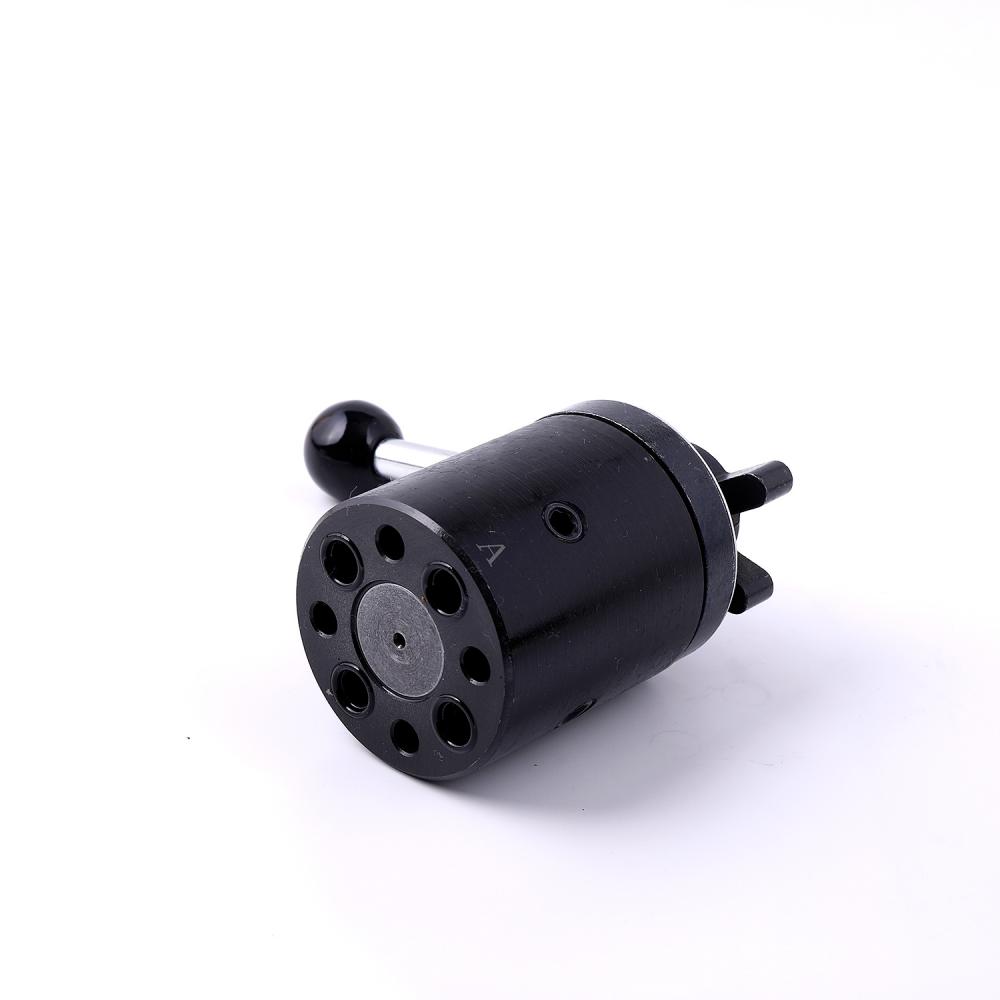

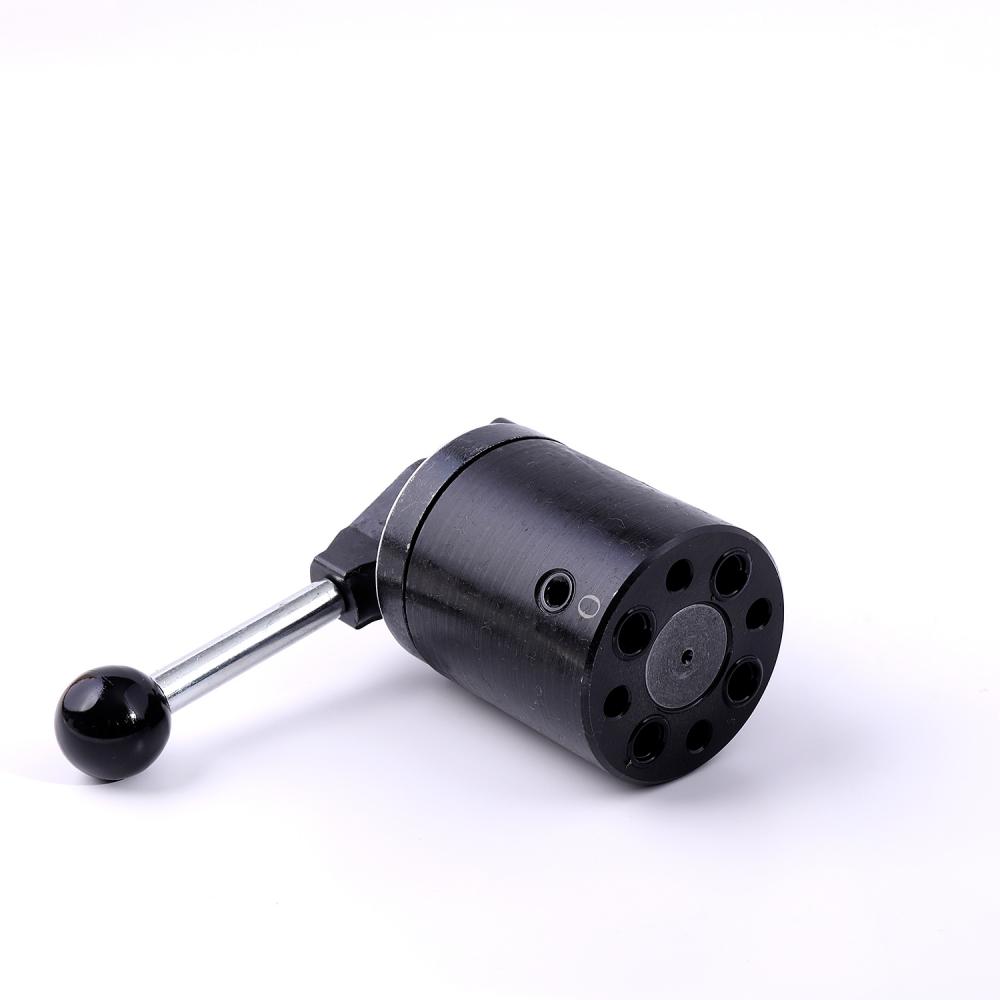

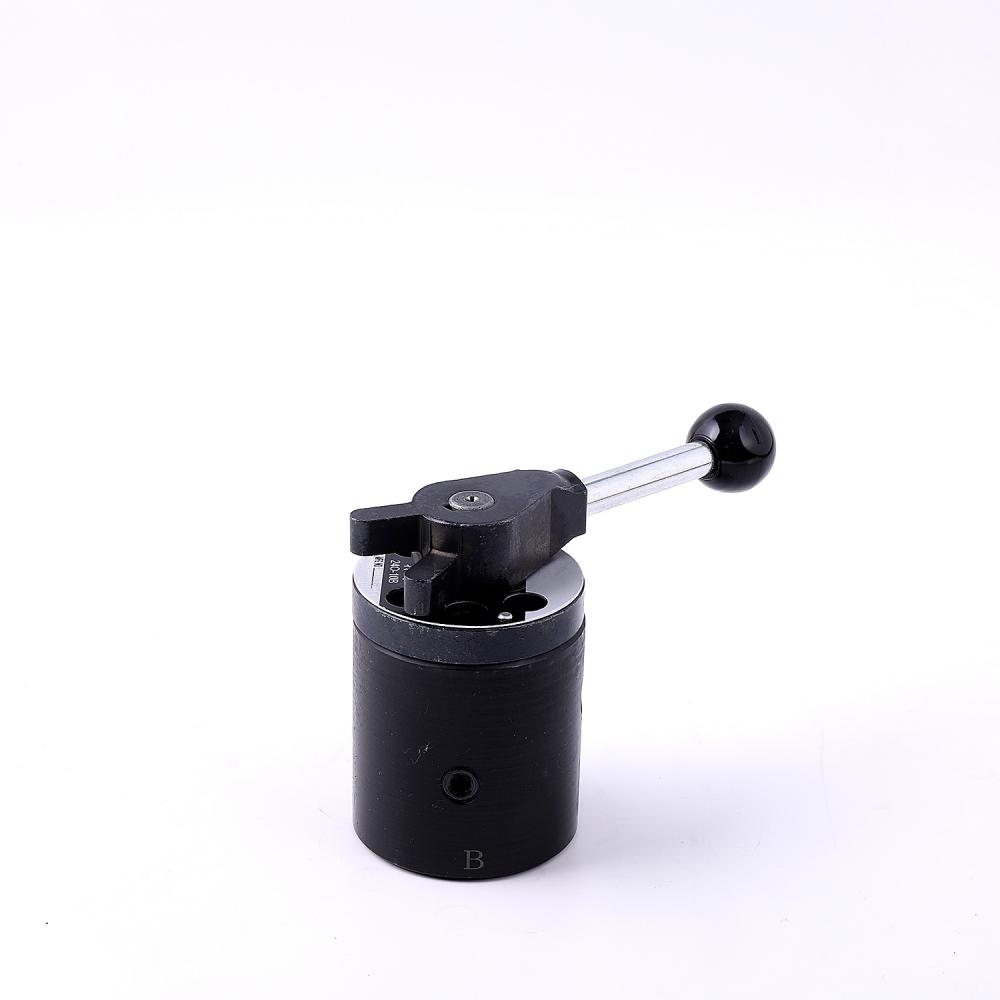

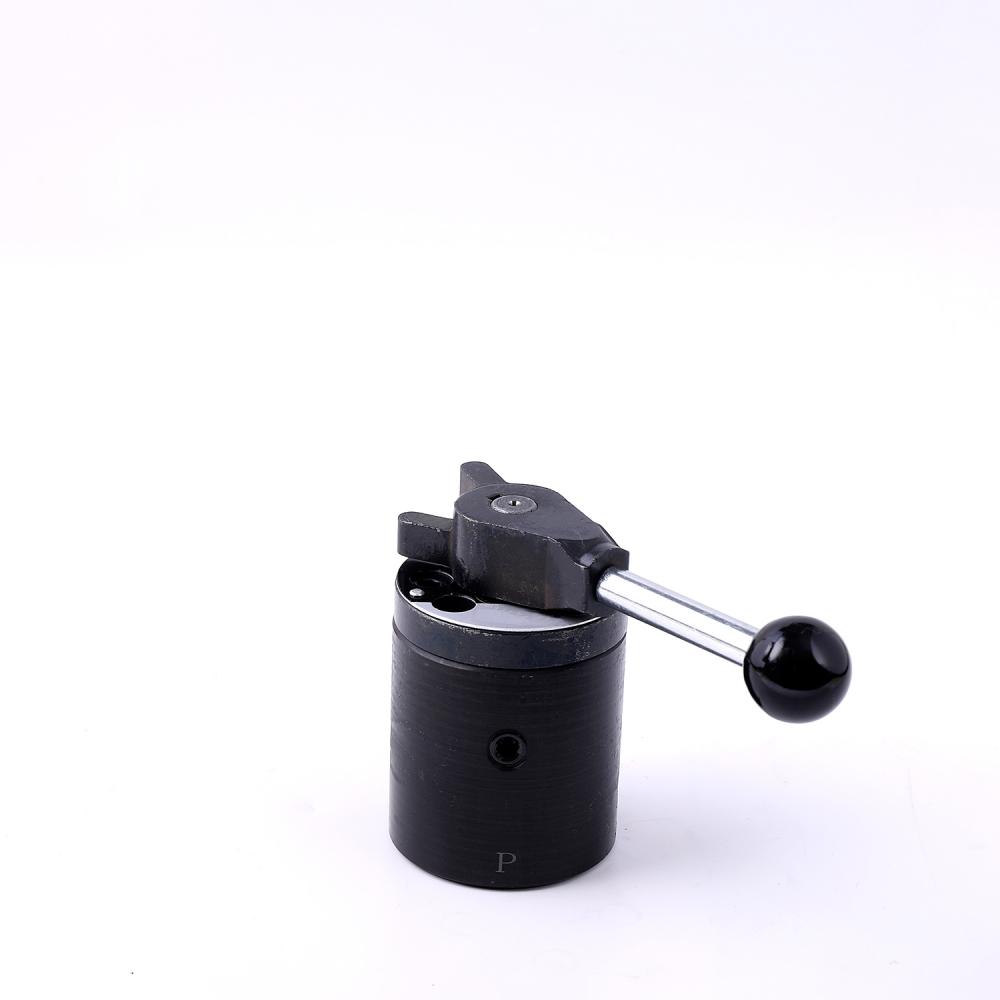

24O-10B Hydraulic Steering Valve
2 year ago
G Port Three-Way Hydraulic Plate Pipe Rotary valve 34O-10B Valve Description:
Rotary valve is to rotate the handle or fork of the valve by hand or bumping block, so that the slide valve can rotate to change the oil circuit communicated by the slide valve to achieve the oil circuit reversal.
It is divided into two four-way and three four-way

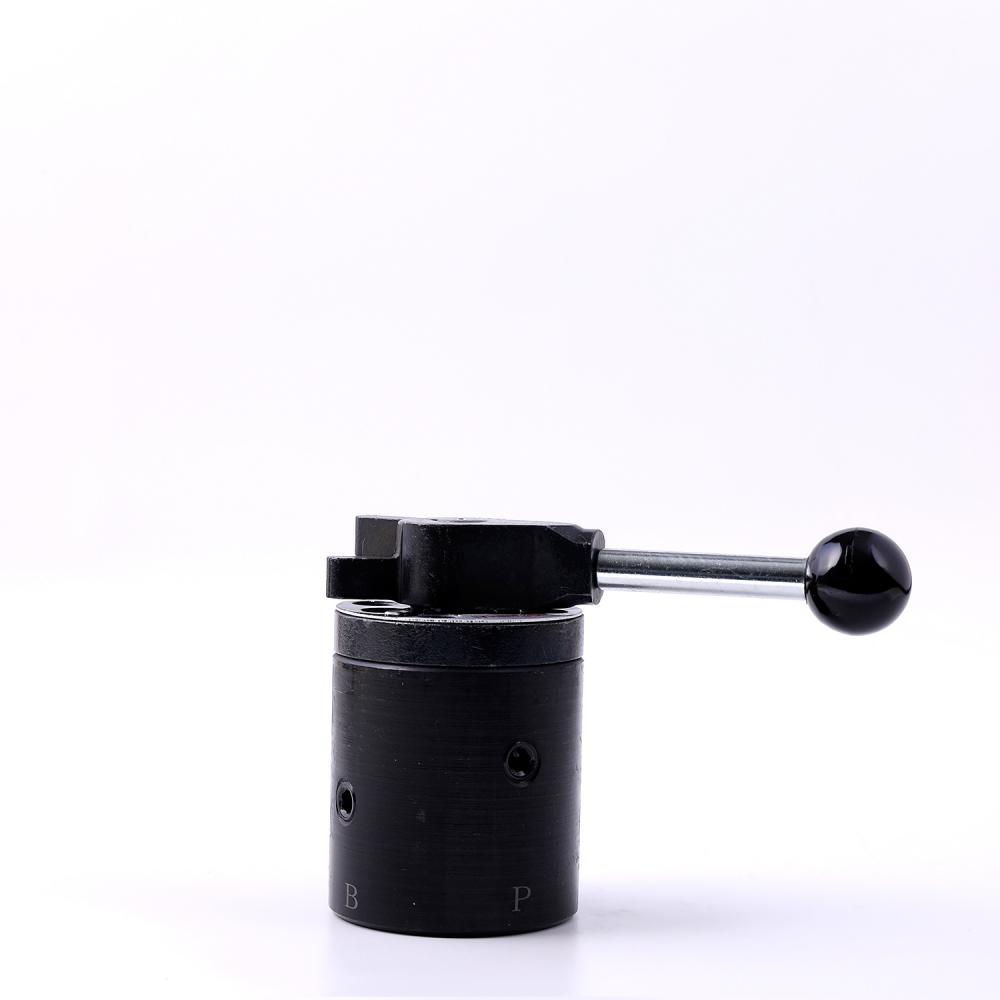

P is the oil inlet, O is the oil return port, and A and B are connected to the left and right cavities of the oil cylinder.
Rotary Control Hydraulic Monoblock Valve Specifications of Ceramic manual valve manual valve rotary valve
We also provide more hydraulic elements, such as Mechanical Control Valves, Manual Hydraulic Switching Valve, Manual Proportional Control Valve, Hydraulic Monoblock Directional Control Valve, High Volumetric Efficiency Oil Pump, Dump Trailer Hydraulic Power Unit, Car Lift Hydraulic Power Unit, Dual Pilot Check Valve etc
Turn Valve Special Transfer valve series code
24O-10B Transfer Valve
Connection thread dimension
G NPT
Turn Valve Feature
Multi-angle rotation
Body and join material
45 steel, 304/ 316 stainless steel
Cnc Change Valve Surface Treatment
Polishing design
Hydraulic Steering Valve Package Dimensions
16 x 8 x 11.5 cm
