2W160-15 1/2'' 2 Way Normally Closed Water Air Gas Brass Solenoid Valve 12V 24V 110V 220V
2 year ago
2W160-10 3/8'' 2 Way NC Solenoid Valve 24V 110V 220V
Product Description:
This is a 2W160-10 solenoid valve, 3/8 inch (G, NPT) female thread port size, brass body material, NBR seal material, 2 way normally closed, Direct Lifting Diaphragm, I[65 Coil, 12V DC, 24V DC, 110V AC, 220V AC voltages for you to choose, other voltages can be customized.

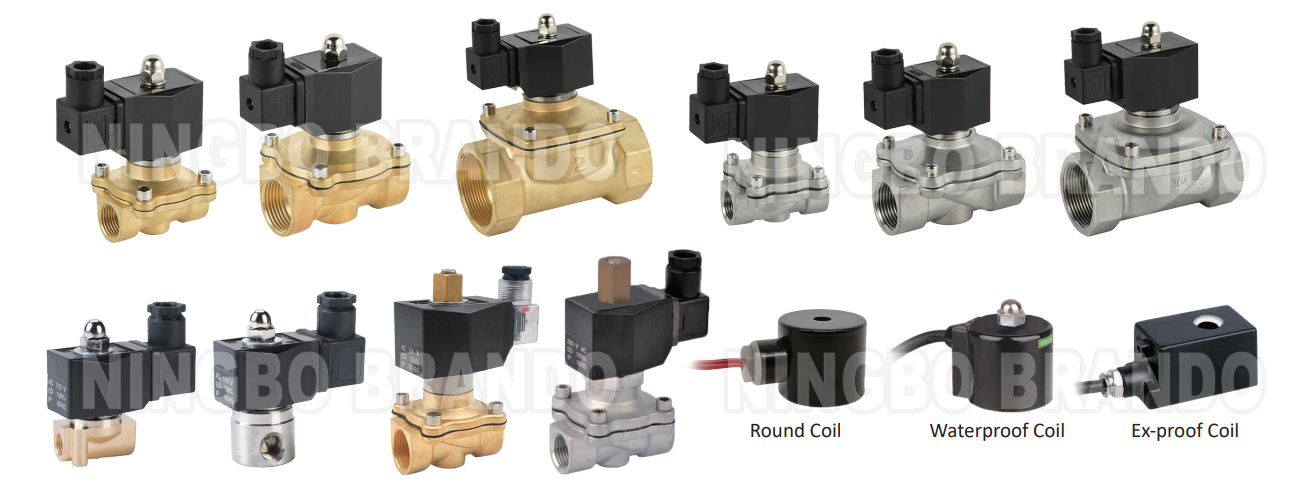

2W series brass solenoid valve: 2W025-06, 2W025-08, 2W040-10, 2W160-10, 2W160-15, 2W200-20, 2W250-25, 2W350-35, 2W400-40, 2W500-50.
2S series stainless steel solenoid valve: 2S025-06, 2S025-08, 2S040-10, 2S160-10, 2S160-15, 2S200-20, 2S250-25, 2S350-35, 2S400-40, 2S500-50.
Technical Data of Water Solenoid Valve:
|
Model
|
2W160-10
|
2W160-15
|
2W200-20
|
2W250-25
|
2W350-35
|
2W400-40
|
2W500-50
|
|
2W160-10-NO
|
2W160-15-NO
|
2W200-20-NO
|
2W250-25-NO
|
2W350-35-NO
|
2W400-40-NO
|
2W500-50-NO
|
|
|
Port Size
|
3/8''
|
1/2''
|
3/4''
|
1''
|
1 1/4''
|
1 1/2''
|
2''
|
|
Orifice Size
|
16
|
20
|
25
|
35
|
40
|
50
|
|
|
Cv Value
|
4.8
|
4.8
|
12
|
24
|
29
|
48
|
|
|
Medium
|
Air, Water, Oil, Gas
|
||||||
|
Action
|
Direct Lifting Diaphragm
|
||||||
|
Function
|
2 Way, Normally Closed (NC), Normally Open (NO)
|
||||||
|
Viscocity
|
20 cst Below
|
||||||
|
Pressure
|
Air: (1 to 1MPa), Water (0 to 0.7MPa), Oil (0 to 0.9MPa), Normally Open (0 to 0.8MPa)
|
||||||
|
Temperature
|
NBR: -5 to +80℃, EPDM: -5 to +120℃, FKM: -5 to +150℃, Silicone: -15 to +150℃
|
||||||
|
Body Material
|
Brass
|
||||||
|
Voltages
|
12VDC, 24VDC, 24VAC, 110VAC, 220VAC
|
||||||
|
Coil Type
|
Waterproof Coil, Round Coil, Square Coil, etc.
|
||||||
Main Dimension:
More Details:
Packing & Shipping:
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
