2W400-40 1 1/2'' 2 Way Normally Closed Water Air Gas Brass Solenoid Valve 12V 24V 110V 220V
2 year ago
2W400-40 1.5'' NC 2 Way Brass Solenoid Valve For Water Air Oil
Product Description:
2W400-40 is direct, multiplex, connected diaphragm, and 2 way normally closed (NC) solenoid valve. Able to be operated directly under low pressure. Availability of fluid type: water, gas, air, very low viscosity fluids (< 20 cst), oils and hydrocarbons, gasoline, kerosene, or diesel fuel. Acceptable for customizeation: Viton (150℃) , Silicone (130℃) and EPDM (120℃). Customers chose this general purpose valve for: do-it-yourself projects, moderate temperature applications, flow control for irrigation systems, reverse osmosis systems, or home brewing.
Technical Data of Stainless Steel Electric Solenoid Valve:
|
Specification |
|||||||||||||
|
Model |
2W160-10 |
2W160-15 |
2W200-20 |
2W250-25 |
2W350-35 |
2W400-40 |
2W500-50 |
||||||
|
Working Medium |
Air, Water, Oil, Gas |
||||||||||||
|
Operation |
Direct Acting 2/2 Way |
||||||||||||
|
Acting Type |
Normal Closed Type |
||||||||||||
|
Port Size |
3/8'' |
1/2'' |
3/4'' |
1'' |
1 1/4'' |
1 1/2'' |
2'' |
||||||
|
Material |
Brass |
||||||||||||
|
Working Pressure |
Air: 0~7Mpa Water: 0~5Mpa Oil: 0~5Mpa Gas: 0~7Mpa |
||||||||||||
|
Orifice Size |
16 |
20 |
25 |
35 |
40 |
50 |
|||||||
|
CV Value |
4.8 |
4.8 |
4.8 |
12 |
24 |
29 |
48 |
||||||
|
Voltage |
DC12V DC24V AC24V AC110V AC220V AC380V |
||||||||||||
|
Fluid Viscosity |
20 CST Below |
||||||||||||
|
Voltage Range |
±10% |
||||||||||||
|
Material for sealing |
NBR, EPDM, VITON |
||||||||||||
|
Operation Temperature |
NBR: -5~80℃ EPDM: -5~120℃ VITON: -10~150℃ SI: -15~150℃ |
||||||||||||

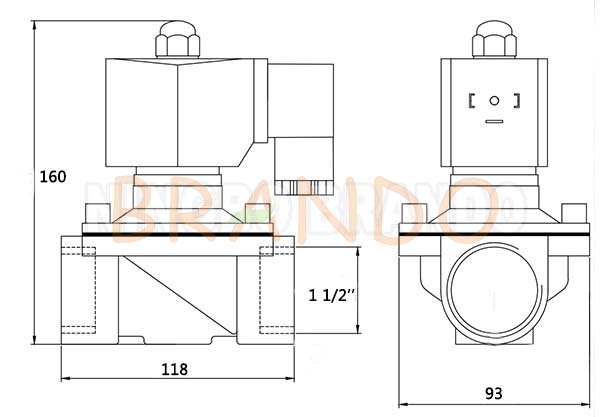

Main Dimension:
More Details:
Packing & Shipping:
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
